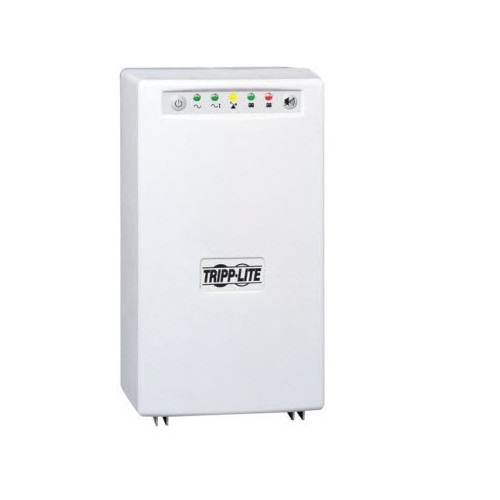

Tripp Lite’s SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The Tripp Lite SMX1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

The Tripp Lite SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite’s included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Tripp Lite’s SMX1200XLHG medical-grade UPS system features,

Battery Backup and Full Surge Protection

• 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W).
• All six hospital-grade outlets provide surge protection rated to 340 joules.
• EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference.
• Resistant to electrostatic discharge.

Provides Ideal UPS Backup in Healthcare Facilities

• Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet.
• Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise.

LEDs and Audible Alarms Keep You Aware of Power Status

• Indicator lights on the front of the unit show you when the UPS is on and supplying utility power.
• When operating in voltage correction mode or in battery mode, relative load level and low-battery warning.
• Audible alarms alert you to power failure, overload and low battery conditions.
• The alarm’s mute/quiet mode ensures patients are not disturbed.

Saves Your Files, Even When You’re Away

• Works with Tripp Lite PowerAlert software (included) to enable safe.
• Connects to your computer via either the DB9 port or USB port.
• Unattended system shutdown and files saves during prolonged power failures.
