Tripp Lite SUTX40K SmartOnline SUTX Series 3-Phase 40kVA 40kW On-Line Double-Conversion UPS
We provide installation services within UAE. Please contact +971-4-3060300 or Email us to book site survey.

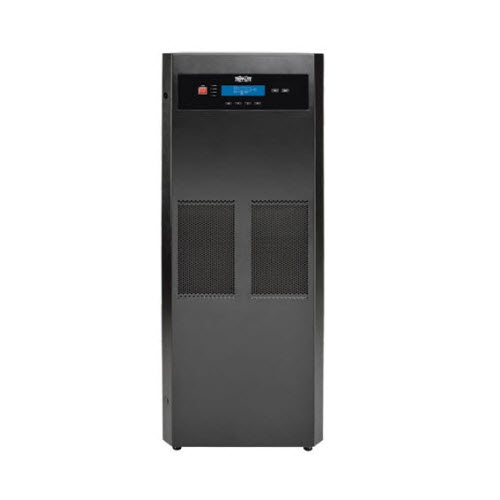

The Tripp Lite SUTX40K SmartOnline SUTX Series 3-Phase 220/380V, 230/400V or 240/415V 40kVA 40kW On-Line Double-Conversion UPS provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It’s recommended for critical data center, LAN/WAN and distributed server room applications.
The Tripp Lite SUTX40K’s Voltage and Frequency Independent (VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered, even during overloads and UPS maintenance.
IGBT inverter technology produces output power with 1% total harmonic distortion (THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.
Managing the Tripp Lite SUTX40K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite’s free local shutdown agent. A built-in card slot supports the optional SNMPWEBCARD network management card for network interface and remote monitoring and control.
Features
- Provides fully regulated sine wave AC output for critical data center, LAN/WAN and distributed server room applications
- +/-1% output voltage regulation in online and battery modes
- 1.0 unit power factor offers 40kVA/40kW output capacity, allowing for more connected devices
- Supports 380/220V, 400/230V or 415/240V at 50/60 Hz in continued operation
- Wide input voltage window (228–477V) minimizes battery use and prolongs battery life
- Supports half load for 15.5 min. and full load for 5.9 min. with standard internal battery
- Zero transfer time suitable for advanced network applications
- Expandable runtime with optional external battery packs, such as Tripp Lite’s BP480V200
- Restarts automatically after lengthy power outages
- Produces output power with 1% THD to keep connected equipment functioning at its peak
- Low <4% THDi input rating and advanced IGBT rectifier enables 1:1 generator sizing, eliminating costly oversizing requirements for generators, breakers and cables
- Connect up to 4 units in parallel configuration for fault tolerance or increased capacity up to 160kVA
- Allows maintenance without removing power from attached loads
- Increases system reliability
- Operates at efficiency levels as high as 99% when input line conditions are favorable
- Compatible with Tripp Lite UPS card accessory SNMPWEBCARD
- DB9 port enables data-saving unattended shutdown when used with Tripp Lite’s Power Alert software (available via free download at www.tripplite.com/poweralert)
- EPO port supports emergency shutdown in large facilities
- May be installed with either single or dual AC sources for increased availability
| Product Name | Tripp Lite SUTX40K SmartOnline SUTX Series 3-Phase 40kVA 40kW On-Line Double-Conversion UPS |
|---|---|
| Output Power | 40 KVA/ 40000 VA |
| Output Voltage | 220 Volts |
| Input Frequency | 220/380V 3-PH Wye; 230/400V 3-PH Wye; 240/415V 3-PH Wye |
| Input Voltage Range | 50 / 60 Hz |
| Interface Ports | DB-9 RS-232, LCD, SNMP/Web interface |
| Control Panel | Front panel LCD with scroll and enter buttons offers display of UPS operating mode, plus voltage and frequency information; LCD also reports a variety of alarm conditions such as Short circuit, Inverter fail and Over temperature; Supports English, French, |
| Battery Type | Valve Regulated Lead-Acid Rechargeable battery, Hot-swappable, replaceable batteries |
| Recharge Time | 8.1 hours from 10 to 90% |
| Audible Alarm | Alarms signal a variety of operational conditions, low-battery, overload, shutdown, bypass and more |
| Approvals | CE, EN 62040-2: 2006+AC: 2006 |
| Dimensions | 139.95 x 49.02 x 84.07 |
| Shipping Dimensions | 164.08 x 72.39 x 101.09 |
| Weight | 173.65 Kg |
| Shipping Weight | 420 |
| Manufacturer | Tripp Lite By Eaton |
| Color | Black |
