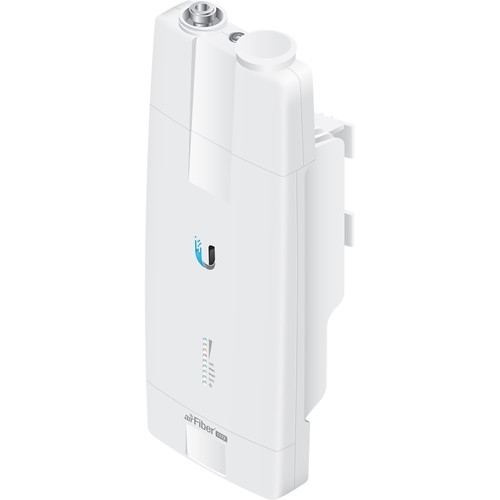

Ubiquiti AF-11FX-H AirFiber 11FX Licensed Backhaul Radio
"Only for Sales outside UAE"
The AF-11FX-H offers a FDD solution that satisfies licensing requirements for the 11 GHz band.
PRODUCT OVERVIEW
Ubiquiti Networks 11FX
Ideal for outdoor point-to-point bridging and carrier-class network backhauls, the AF-11FX-H airFiber 11FX Licensed Backhaul Radio with High-Band Duplexer from Ubiquiti Networks is capable of delivering up to 1.2 Gb/s throughput using the licensed 11 GHz radio band. Boasting a range up to 186 miles, the airFiber 11FX is designed to connect to the Ubiquiti AF-11G35 antenna, or it can be fitted onto a variety of third party antennas with an optional adapter kit.
This Ubiquiti Backhaul Radio comes equipped with four SMA weatherproof RF connectors, a Gigabit Ethernet data port, and a 10/100 Mb/s management port. It can be configured to use either single (SISO) or bonded (MIMO) channels, while its transmit and receive signals can be configured to reside on separate channels to further improve network performance. The radio supports both DC and PoE power and comes with silicone boots to help protect against the elements when installed outdoors. Each airFiber 11FX radio requires one or two duplexers. The AF-11FX-H comes with a high-band duplexer.
True Full-Duplex Design
The AF-11FX-H offers a FDD solution that satisfies licensing requirements for the 11 GHz band.
Ultra-Low Latency
Overall customer experience and system capacity is enhanced with FDD performance.
Enhanced Robustness
The AF-11FX-H features a unique, built-in, rain-fade mitigation strategy for increased link robustness.
Extended Range
The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
Optimized Channels
The airFiber AF-11FX-H can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The radio also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
Reconfigurable Duplexers
The AF-11FX-H features a modular duplexer design to suit multiple frequency configurations. The radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use in the 10.7-11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer. The AF-11FX-H comes with a high-band duplexer.
Key Features
- Full-Duplex, Point-to-Point Radio
- Includes High-Band Duplexer
- 11 GHz Frequency Operation
- Up to 1.2+ Gb/s Throughput
| Product Name | Ubiquiti AF-11FX-H AirFiber 11FX Licensed Backhaul Radio |
|---|---|
| Weight | 2.27 Kg |
| Operating Frequency | 11 GHz |
| Dimensions | 12.87 x 4.41 x 3.39" / 327 x 112 x 86 mm |
| Frequency Accuracy | ± 2.0 ppm |
| Maximum Range | 186+ mi / 300+ km |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Power Supply (PoE) | 50 VDC, 1.2 A PoE Gigabit adapter (included) |
| Max. Power Consumption | 36 W |
| Manufacturer | Ubiquiti |
| Color | White |
| Country of Origin | United States |
