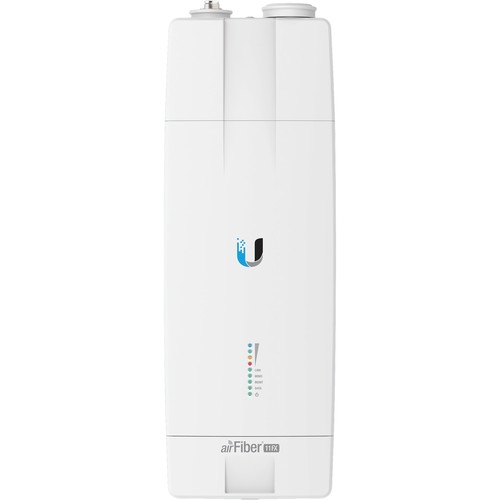

Ubiquiti AF-11FX-L AirFiber 11FX Low-Band Backhaul Radio
"Only for Sales outside UAE"
AF-11, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.
PRODUCT OVERVIEW
AF-11, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.
Advanced Engineering
Ubiquiti’s INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
Power Source Options
Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.
Reversible Duplexers
Each AF-11 requires one or two Duplexers (sold separately; models AF-11-DUP-H and AF-11-DUP-L).
Channel Configuration
The airFiber AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11 also features different channel widths to suit your deployment needs, and you can independently configure TX and RX channel frequencies
| Product Name | Ubiquiti AF-11FX-L AirFiber 11FX Low-Band Backhaul Radio |
|---|---|
| Weight | 2.267962 |
| Operating Frequency | 11 GHz |
| Dimensions | 12.87 x 4.41 x 3.39" / 327 x 112 x 86 mm |
| Frequency Accuracy | ± 2.0 ppm |
| Maximum Range | 186+ mi / 300+ km |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Power Supply (PoE) | 50 VDC, 1.2 A PoE Gigabit adapter (included) |
| Max. Power Consumption | 36 W |
| Manufacturer | Ubiquiti |
| Color | White |
| Country of Origin | United States |
Product Datasheet
