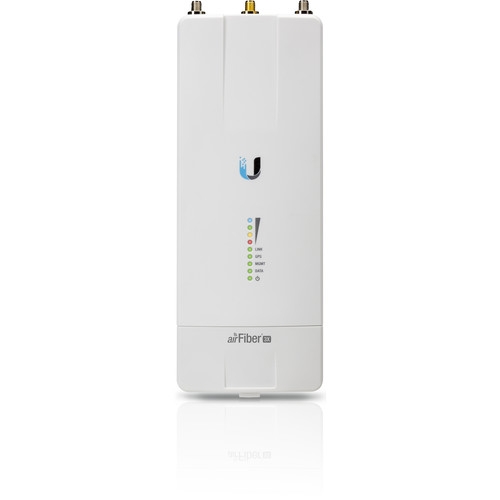

Ubiquiti AF-3X Carrier Backhaul Radio
"Only for Sales outside UAE"
Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
PRODUCT OVERVIEW
Engineered for Performance
Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.
Carrier Backhaul for the World
Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.
Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
| Product Name | Ubiquiti AF-3X Carrier Backhaul Radio |
|---|---|
| Weight | 0.35 Kg |
| Operating Frequency | 3300-3900 MHz (Dependent on Regulatory Region) |
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
| Maximum Range | 200+ km |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Power Supply (PoE) | 29 dBm (Dependent on Regulatory Region) |
| Max. Power Consumption | 17W @ Max. Power/Duty Cycle |
| Manufacturer | Ubiquiti |
| Color | White |
| Country of Origin | United States |
