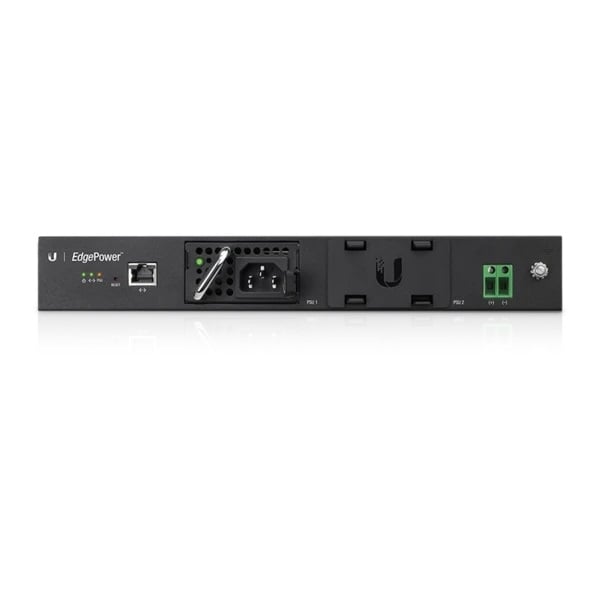

Ubiquiti EP-54V-150W Modular DC Power Supply for EdgePoint
Only Sale for Outside UAE
The EdgePower™ is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches and provide reliable power to attached PoE devices.
PRODUCT OVERVIEW
Modular DC Power Supply for EdgePoint
The EdgePower™ is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches and provide reliable power to attached PoE devices.
Versatile, Modular Design
The rack-mountable EdgePower features two PSU bays. One 54V, 150W AC-DC module is included, and an optional AC-DC or DC-DC module is available.
High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
Backup PSU
If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
EdgePower Tower Deployment Example
Remote Monitoring and Configuration
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.
| Product Name | Ubiquiti EP-54V-150W Modular DC Power Supply for EdgePoint |
|---|---|
| Weight | 2.698875 |
| Power Supply (PoE) | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Max. Power Consumption | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Dimensions | 299.8 x 286.9 x 42.55 mm |
| Manufacturer | Ubiquiti |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
