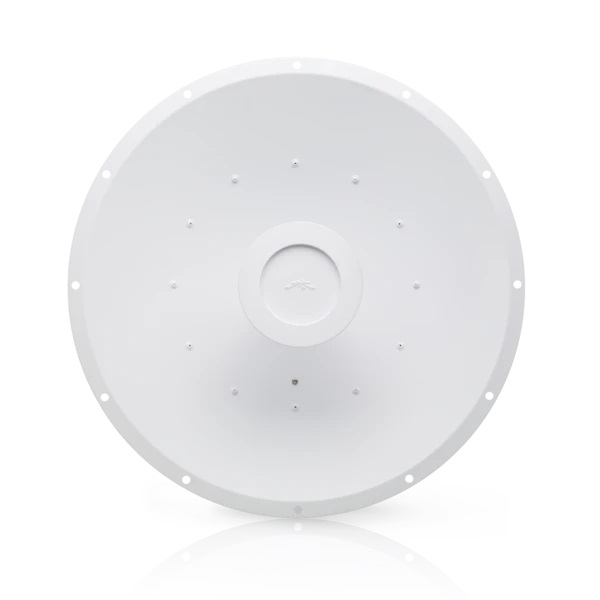

Ubiquiti Networks AF-3G26-S45 26 dBi Antenna for AirFiber

PRODUCT OVERVIEW

Operating within the 3.3 to 3.8 GHz frequency, the AF-3G26-S45 26 dBi Antenna for airFiber X 3 GHz Carrier Backhaul Radio from Ubiquiti Networks produces a reliable point-to-point signal complete with a 26 dBi gain. In addition to the strength of the signal, users also benefit from a 7° (3dB) beamwidth and a wind survivability rating of up to 125 mph. Installation has also been simplified thanks to the included pole mounting kit while the weatherproof design allows the antenna to be deployed nearly anywhere.

Powerful Performance

The airFiber X antenna delivers 2x2, dual-polarity performance. The airFiber X antenna with the airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP's customers.

Carrier-Class Construction

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug-and-Play Integration

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

• 3.3 - 3.8 GHz Frequency Range
• 26 dBi Gain
• -33 dB F/B Ratio
• 1.4:1 Max. VSWR
