PRODUCT OVERVIEW

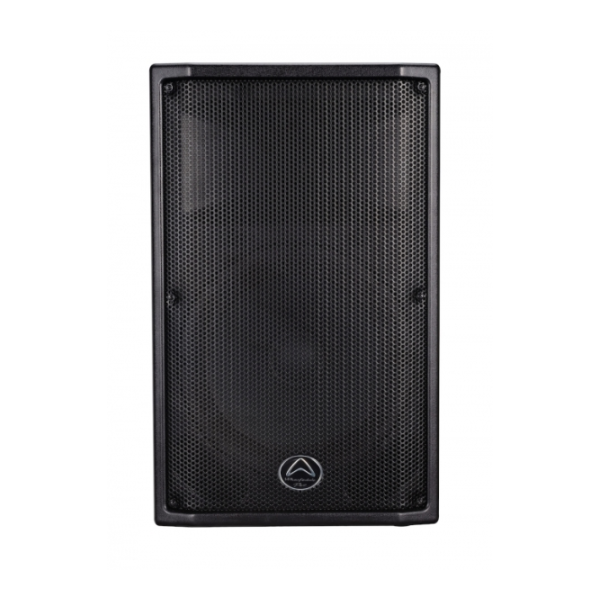

PSX112

The new PSX112 (12”, 350w Continuous) active plastic loudspeaker is a powerful and high quality PA solution for any sound project constrained by budget. Constructed of durable polypropylene and using a full-face steel front grille, PSX112 is a robust and versatile tool - ideal for DJ’s, musicians and installations.

Custom Wharfedale Pro drivers have been used.  Both PSX models use a class-leading 1.75” HF compression driver to ensure clear and accurate high frequency performance.  Meanwhile the large 2.0” voice coils used in the LF drivers give efficient power handling, even at extreme volumes. PSX112 is bi-amplified using Class D for the LF and a newly designed Class AB amplifier for the HF. This combination gives a great power to price ratio. Simple operation is the key though.  With +/-12dB treble and bass controls and straightforward connectivity, even the most inexperienced user can achieve great sound.

ssssssh - Silent operation

The two amplifiers inside the PSX112 are extremely efficient. So efficient that they can use convection cooling. This means that there are no fans! Fans inside loudspeakers add to operational noise, weight, price and can lead to reliability issues. PSX112 has no fan! Ssssssh! - Silent and reliable operation.

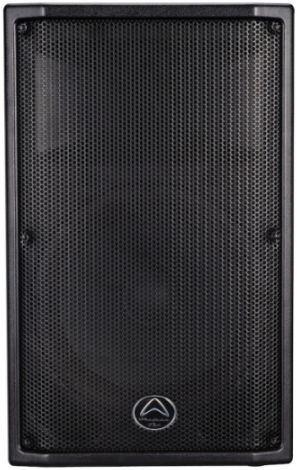

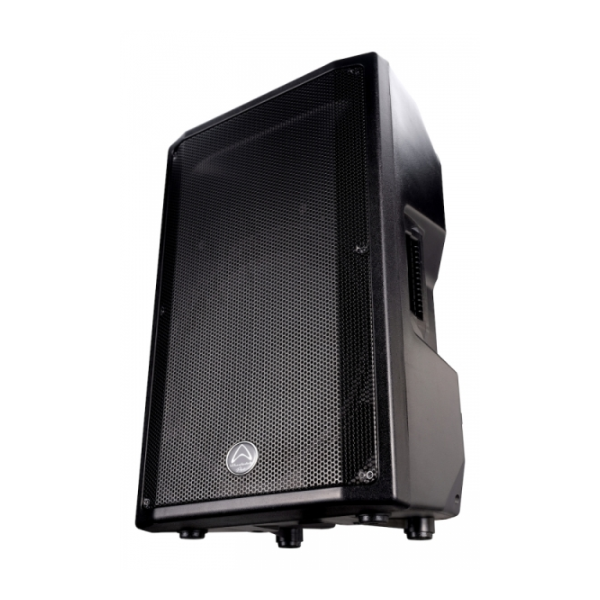

At the front

• 3 practical carry handles
• Durable plastic cabinet
• Full steel front grille
• 2.0" voice coil custom Wharfedale Pro LF transducer
• 90° x 60° waveguide for smooth dispersion
• 1.75" (class leading) HF compression driver voice coil

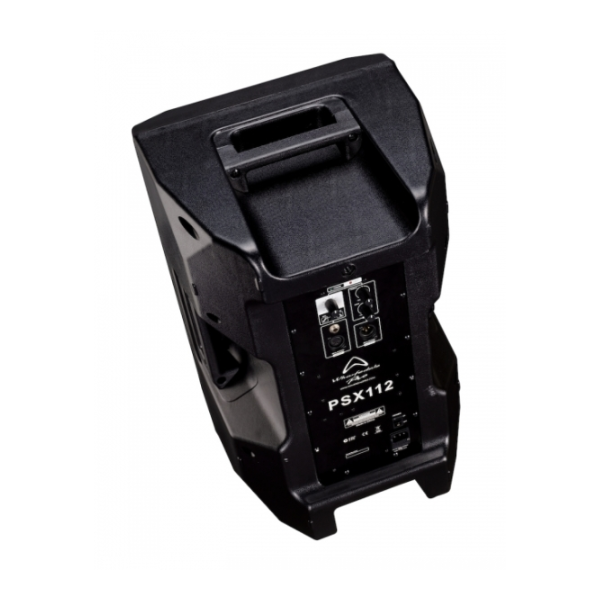

Around the back

• 4 x M8 rigging points
• Hands-on Treble and Bass controls
• Balanced Link output - daisy chain PSX together.
• Two efficient amps. Class D for LF and Class AB for HF
• No Fan ! Convection cooling.
• Separate mic and line input connectors
• Easy volume control
• Advanced Protection circuitry
•
