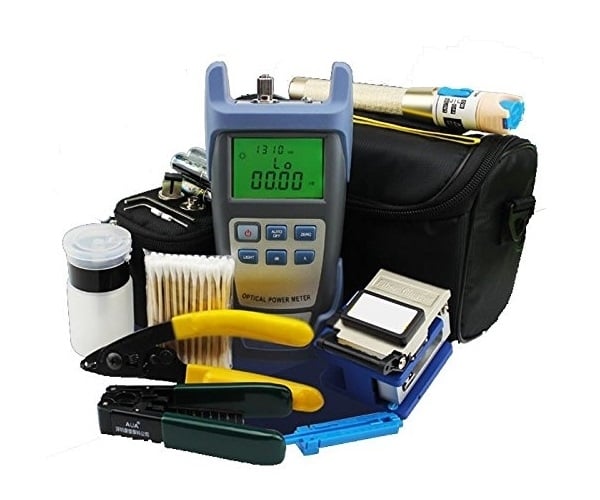

Zoostliss FTTH Fiber Optic Tool Kit with Medidor Fibra Optic and Visual Fault Locator and Cable Cutter Stripper FC-6S Fiber Cleaver
Call For The Best Price
Call: +971-4-3360300 | Email: [email protected]
This is a multi-purpose toolkit,it can provides the tools necessary for the assembly of mechanical splices and it will bring you a higher working efficiency. 1mW Visual Fault Locator Fiber Optic Cable Tester Meter for CAT.
Product Description
Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fiber network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.
Specification:
Wavelength(nm): 800~1700nm
Detector: InGaAs
Measurement Range (dBm): -70~+10
Uncertainty: ±0.2(5%)
Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm
Optical Connector: FC/ Universal 2.5mm adaptor
Operating Temperature: -10 ~ +60C
Storage Temperature: -25 ~ +70C
Relative Humidity: 0 to 95% (non-condensing)
Dimension(mm): 190×100×48
Fiber Cleaver FC-6S Features and Functions :
high quality fiber cutting knife (recommended for FTTH cold welding, hot melt connection is not recommended for the use of this paragraph). Simple operation; single core fiber for single mode or multimode cutting; 12 cutting end face; blade long life; adjust the peeling length is: 5~20mm; technical specifications: fiber size: 125um; skin diameter: 250~900um.
| Product Name | Zoostliss FTTH Fiber Optic Tool Kit with Medidor Fibra Optic and Visual Fault Locator and Cable Cutter Stripper FC-6S Fiber Cleaver |
|---|---|
| Weight | 0.606907 |
