Eaton 5E700UI 700 VA / 360 W Line‑Interactive Tower UPS

PRODUCT OVERVIEW

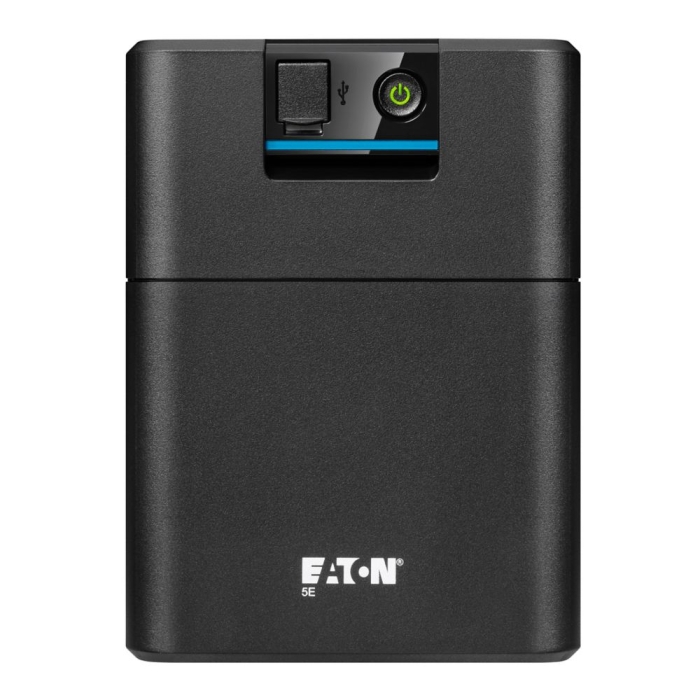

Eaton 5E700UI Gen2 Line‑Interactive UPS

The Eaton 5E700UI is a compact Line‑Interactive Uninterruptible Power Supply (UPS) from Eaton’s 5E Gen2 series, designed to deliver affordable and reliable power protection for essential electronics. With a rated capacity of 700 VA / 360 W, this UPS guards against voltage fluctuations, short power interruptions, and surges, ensuring continuity for small office, home office, and entry‑level IT environments. Its compact tower form factor makes it easy to install on desktops or in equipment racks where space is limited.

Electrical Topology and Output Performance

The Eaton 5E700UI uses Line‑Interactive topology with Automatic Voltage Regulation (AVR), which helps correct minor under‑ and overvoltage conditions without switching to battery, preserving battery life and reducing unnecessary transfers. It delivers a nominal 230 V AC output (configurable across common regional voltages such as 220 V or 240 V) and supports 50/60 Hz operation. Equipped with four IEC C13 outlets, it can power multiple devices simultaneously without needing external power distribution hardware.

Battery System and Backup Capability

Internally, the UPS incorporates a sealed lead‑acid battery (12 V / 7 Ah) that provides essential backup during mains failures and supports cold‑start capability, allowing the UPS to power equipment even when utility power is unavailable. Built-in battery management includes automatic self-tests and deep-discharge protection to help extend battery health and reliability. Typical runtime varies by load but can sustain a single desktop system for several minutes, sufficient for orderly shutdowns or bridging short outages.

Mechanical, Environmental, and Compliance Details

Measuring approximately 288 × 148 × 100 mm (depth × height × width) and weighing around 4.18 kg, the Eaton 5E700UI combines a compact footprint with a sturdy build. It supports a typical operating temperature range from 0°C to 40°C with humidity tolerance up to 90% non‑condensing, suitable for office and small server room environments. The UPS complies with a range of global safety and performance standards, including IEC/EN 62040‑1, ‑2, and ‑3, CE, EAC, and UKCA, ensuring regulatory acceptance across multiple regions.
