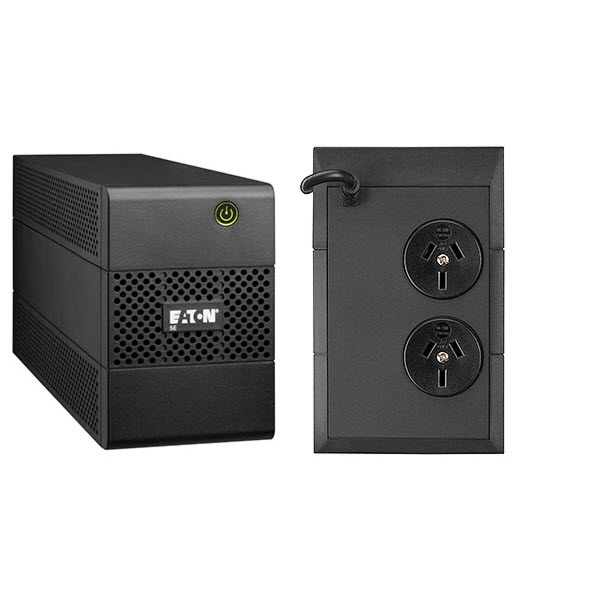

Eaton 5E850IUSB 850VA / 480W Line‑Interactive UPS
Eaton 5E850IUSB 850VA/480W UPS Trust a leading manufacturer with decades of experience dedicated to developing reliable power quality equipment. Rely on batteries anytime: 5E batteries are permanently recharged (even when the UPS is turned off but the mains is present). 5E can start without mains (cold start).
PRODUCT OVERVIEW
Performance
The Eaton 5E UPS provides effective power protection, even in disturbed electrical environments. Voltage fluctuations are automatically corrected using an AVR device (booster/fader), without needing the batteries.
Reliability
Trust a leading manufacturer with decades of experience dedicated to developing reliable power quality equipment. Rely on batteries anytime: 5E batteries are permanently recharged (even when the UPS is turned off but mains is present). 5E can start without mains (Cold-start).
Versatility
5E’s compact form factor allows it to be easily integrated into environments with space constraints. The 5E features an HID-compliant USB port, for automatic integration with common operating systems (Windows/ Mac OS/Linux). 5E is compatible with Eaton UPS Companion power management software. 650 & 850VA models have no fan so are perfect for deployment at an operators workstation, where fan noise can be an issue.
Configuration Tower: Part Number 5E850iUSB-AU
Rating (VA/Watts): 850VA/480W
Dimensions (H x W x D, mm): 148 x 100 x 288
Weight (kg): 5.1
Warranty: 12 months
| Product Name | Eaton 5E850IUSB 850VA / 480W Line‑Interactive UPS |
|---|---|
| Output Power | 0.85kVA/ 850VA |
| Output Voltage | 230 Volts |
| Input Frequency | 50Hz or 60Hz |
| Input Voltage Range | 170- 280V |
| Interface Ports | USB |
| Control Panel | AC Mode: Green LED lighting, Battery Mode: Green LED Flashing |
| Battery Type | 12V, 9Ah |
| Recharge Time | 6 hours to 90% after complete discharge |
| Audible Alarm | Five audible alarms for Backup Mode, Low Battery, Overload, Battery replace & Fault, Less than 45dB |
| Cord Length | - |
| Approvals | - |
| Dimensions | 148 x 100 x 288 |
| Shipping Dimensions | - |
| Weight | 2.313321 |
| Shipping Weight | - |
| Manufacturer | Eaton |
| Color | Black |
Product Datasheet
