Eaton 5SC1000I 1 kVA / 700 W Line‑Interactive Rack UPS

PRODUCT OVERVIEW

Eaton 5SC1000I—1 kVA Rack‑Mount Line‑Interactive UPS

The Eaton 5SC1000I is a 1000 VA / 700 W line‑interactive uninterruptible power supply (UPS) engineered to deliver reliable power continuity and protection for rack servers, networking hardware, storage devices, and other critical IT equipment. Designed in a 2U rackmount form factor, this UPS is ideal for small to medium business environments, data closets, and edge computing installations with limited space but high reliability requirements.

Power Protection Technology

At its core, the 5SC1000I uses line‑interactive topology with Automatic Voltage Regulation (AVR), which helps stabilize incoming mains voltage fluctuations without drawing on the battery unless necessary. This reduces battery wear and improves overall UPS efficiency during undervoltage and overvoltage events. The unit delivers a pure sine‑wave output at 230 V nominal (adjustable to 220/230/240 V), supporting sensitive equipment with clean and dependable power formatting.

With a 0.7 output power factor, the system delivers 700 W of real usable power, making it suitable for critical rack servers, network switches, and storage equipment under moderate load.

Battery Backup & Runtime Estimates

The UPS integrates two sealed lead‑acid batteries (12 V/9 Ah) featuring Eaton’s Advanced Battery Management (ABM) technology, automatic battery testing, and deep‑discharge protection. Batteries are user‑replaceable and hot‑swappable, simplifying service without shutting down connected loads.

Typical backup runtimes are approximately 11.5 minutes at half load and around 5 minutes at full rated load, sufficient for saving work, executing controlled shutdowns, or activating auxiliary power systems during brief outages.

Connectivity & Monitoring

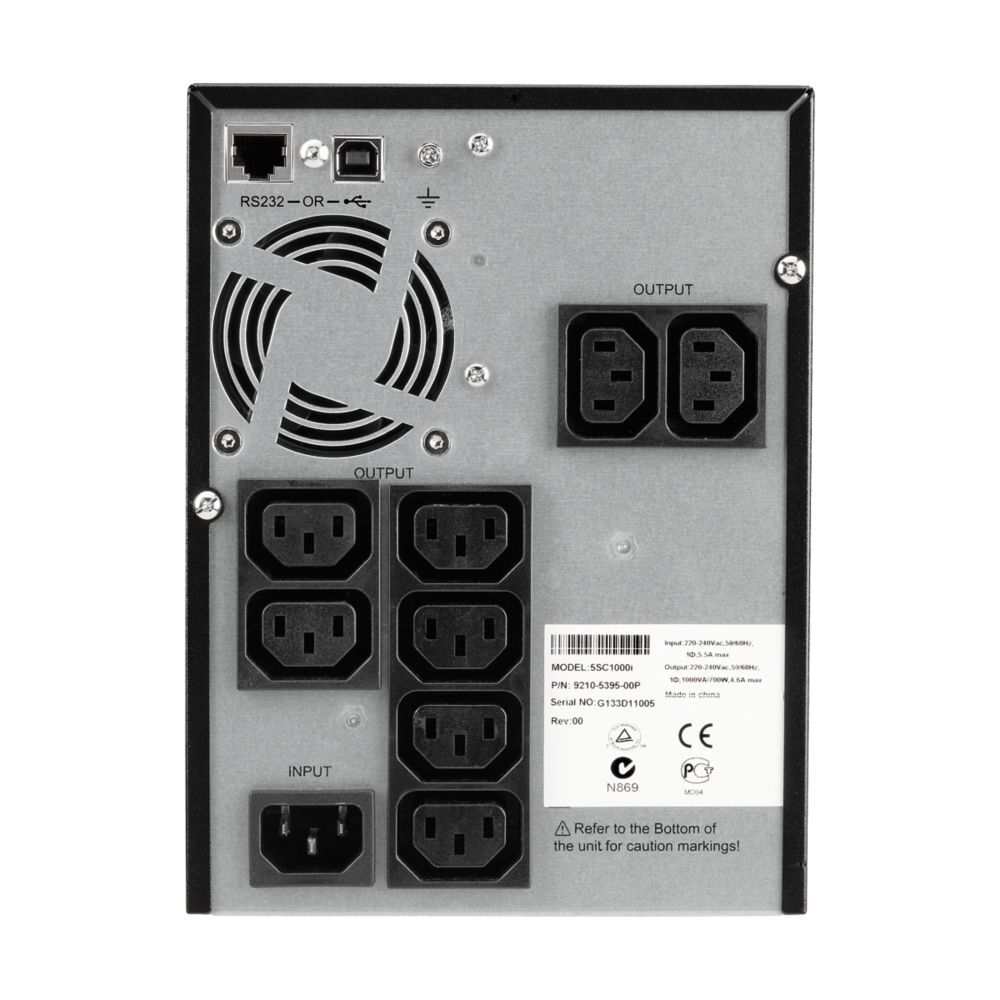

Connectivity options include a USB port (HID-compliant), an RS-232 serial port, dry contact outputs, and a mini terminal block for remote ON/OFF and power-off signaling. A single expansion slot accepts optional network communication cards such as SNMP/Web or relay modules, enabling remote management and event monitoring.

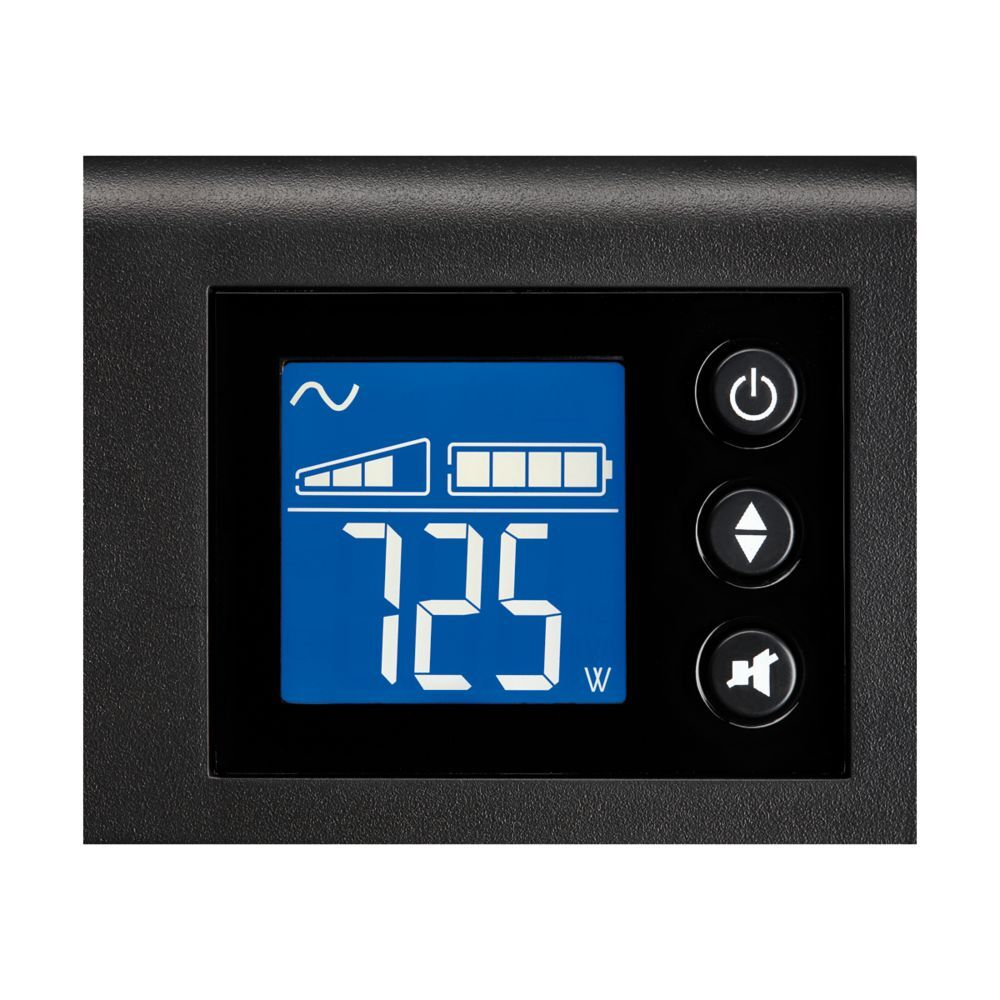

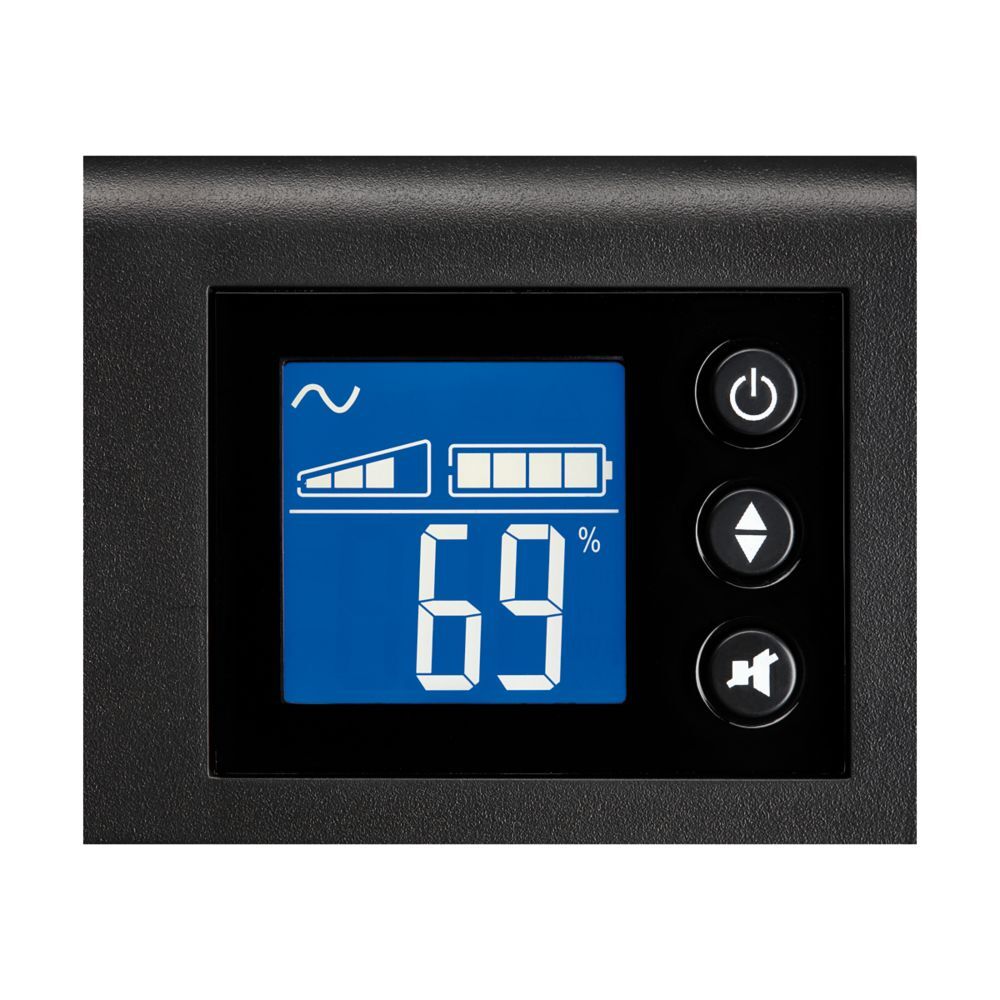

The multilingual LCD display provides real‑time power status, battery condition, load levels, and event alerts—enhancing on‑site diagnostics and status visibility. Eaton UPS management tools like Intelligent Power Manager and Intelligent Power Protector are supported for software‑based monitoring and automated shutdown across virtualised and multi‑platform environments.

Design, Compliance & Environmental Suitability

Built specifically for 19‑inch rack systems, the 5SC1000I includes a rack‑mounting kit and cable locking system for secure installation. With a noise level < 40 dB, it operates quietly in IT environments. The UPS meets international safety and performance standards including UL 1778, IEC/EN 62040‑1, and IEC/EN 62040‑2, and carries CE, EAC, and cTUVus certifications—underscoring Eaton’s commitment to quality and conformity.

Operating conditions allow deployment up to 3000 m altitude with standard humidity and temperature tolerances typical for server rooms and rack closets.
