Eaton 9E1000IR 1 kVA / 900 W Line‑Interactive Rack UPS

PRODUCT OVERVIEW

Product Purpose and Core Architecture

The Eaton 9SX1000IR is a rack‑mountable Uninterruptible Power Supply (UPS) designed to deliver reliable power continuity and protection for critical IT infrastructure. It provides 1000 VA (900 W) of power capacity, which makes it suitable for small servers, network hardware, storage arrays, and edge computing systems where consistent uptime is essential. The unit uses online, double‑conversion topology, a premium UPS architecture that continuously conditions incoming power and isolates connected loads from disturbances such as voltage sags, surges, frequency variations, and harmonic distortion. This topology ensures a clean sinusoidal output under all conditions, mitigating the risk of data corruption or hardware faults due to poor power quality.

Electrical Performance and Output Characteristics

From an electrical standpoint, the 9SX1000IR delivers 230 V output (configurable range 200/208/220/230/240 V) with a 0.9 power factor, meaning it supplies 90 % of its rated VA as usable real power — critical for modern IT loads that don’t draw purely resistive power. The output waveform is a true sine wave, ensuring compatibility with sensitive electronics and avoiding overheating or misbehavior in power supplies that expect clean AC. Six C13 outlets are provided for load connections, typical for rack servers and equipment, with additional connectivity options using optional communication cards if remote monitoring or SNMP management is required.

Battery System and Runtime Capabilities

The internal battery arrangement uses three sealed lead‑acid batteries (12 V/9 Ah) with hot‑swappable capability, allowing battery replacement without shutting down connected equipment. Eaton’s Advanced Battery Management (ABM) combined with temperature‑compensated charging enhances battery life by reducing stress during charging cycles and preventing deep discharge events. Default runtime at half load (~450 W) is approximately 16.5 minutes, which is normally sufficient to perform an orderly shutdown or bridge short outages. Support for up to four external battery modules (EBMs) allows runtime extension to meet more demanding runtime requirements in data closets or small server environments.

Connectivity, User Interface, and Manageability

For systems management, the 9SX1000IR includes USB (HID) and RS‑232 ports, and dry contacts for integration with Building Management Systems (BMS), enabling automated shutdown scripts and event logging. The multilingual graphical LCD display provides real‑time status on load, input/output voltages, battery condition, and energy consumption metrics — a valuable tool for IT staff to assess UPS health at a glance. The design includes one expansion slot for optional communication cards (e.g., network management or environmental monitoring), enhancing integration with enterprise monitoring tools like Eaton Intelligent Power Manager.

Form Factor, Environmental Specs, and Compliance

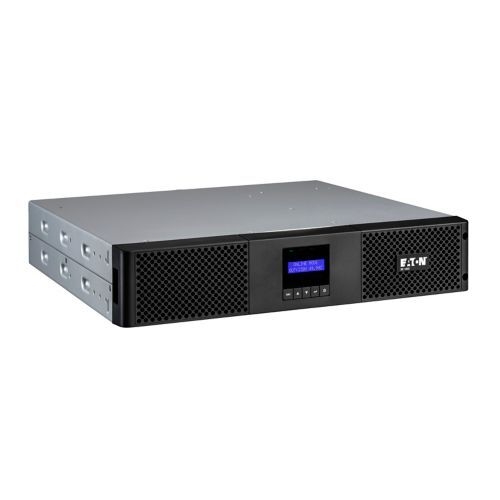

Mechanically, the product is a 2U rack mount unit (19‑inch compatible) with a 438 mm depth and weighing around 15.7 kg, suitable for standard server racks. Operating range is 0–40 °C with humidity tolerance up to 96 % non‑condensing, enabling deployment in controlled data center and server room environments. The UPS carries a broad set of international certifications — including IEC/EN 62040‑1/‑2, UL 1778, CE, cULus, and CSA — demonstrating adherence to global safety and EMC standards. Noise emission is rated at <41 dB at 1 m, meaning it stays reasonably quiet even in an open rack setting.
