Eaton 5PX3000IRT2UG2 3000 VA/ 3000 W Line‑Interactive Rack/Tower UPS

PRODUCT OVERVIEW

Eaton 5PX3000IRT2UG2 Line‑Interactive UPS

The Eaton 5PX3000IRT2UG2 is a high‑performance line‑interactive UPS from Eaton’s Gen2 series designed to deliver robust backup power and voltage regulation for critical IT infrastructure, networking equipment, and servers. Rated at 3000 VA / 3000 W with a unity power factor (1.0), this UPS provides full usable power for connected equipment, maximizing protection capacity. Its 2U rack/tower convertible form factor enables flexible installation in standard 19‑inch racks or as a free‑standing unit.

Electrical Performance and Power Quality

This UPS employs line‑interactive topology with pure sine‑wave output, ensuring reliable power conditioning under varied input conditions. It supports a wide input voltage range of 160–294 V (adjustable to 150–294 V) and operates over a nominal frequency range of 47–70 Hz, enabling it to maintain stable output without prematurely switching to battery power. The output voltage is nominally 230 V, configurable across common standards such as 200/208/220/230/240 V.

Battery System and Runtime Flexibility

Equipped with six user‑replaceable sealed lead‑acid batteries (12 V / 9 Ah), the Eaton 5PX3000IRT2UG2 delivers essential runtime during power outages. Eaton’s Advanced Battery Management (ABM) with temperature‑compensated charging, automatic battery tests, and deep‑discharge protection helps extend battery life and improve reliability. The UPS also supports up to four external battery modules (EBMs) to extend backup time in longer outages or prioritize critical loads.

Connectivity, Management and Monitoring

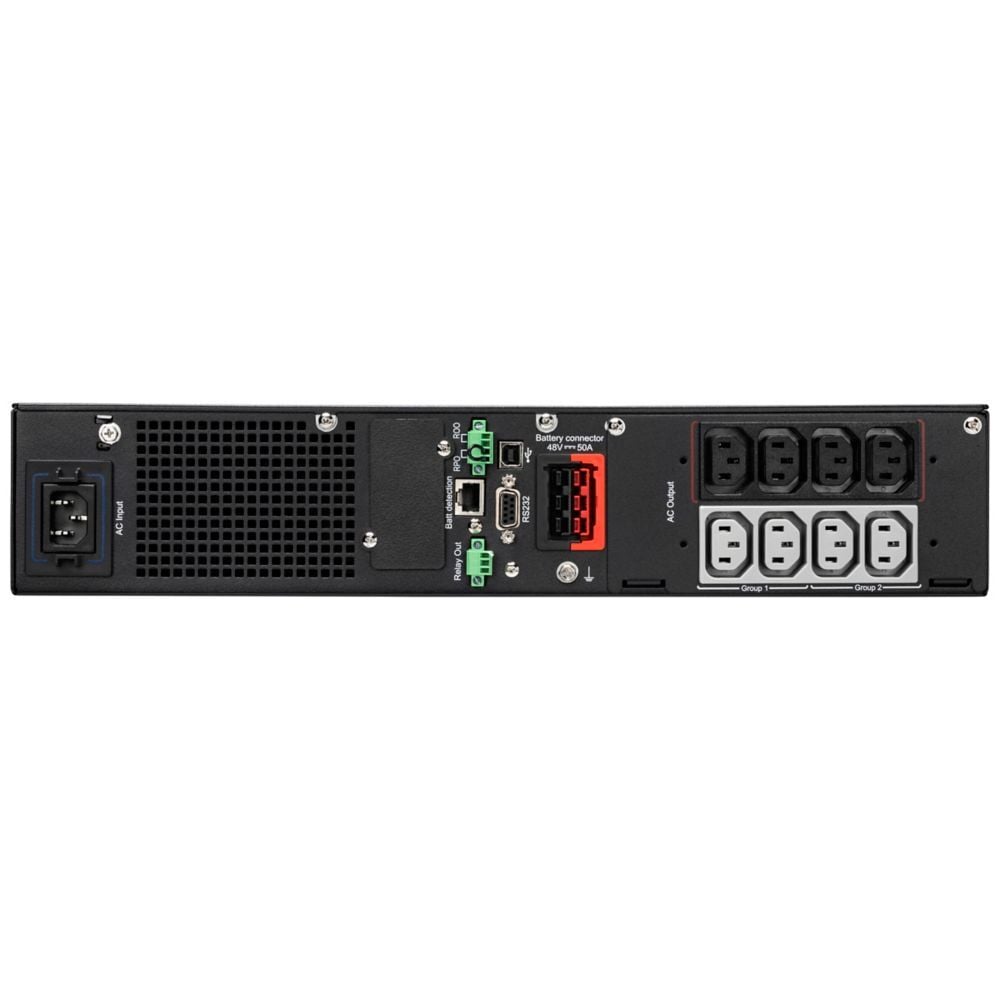

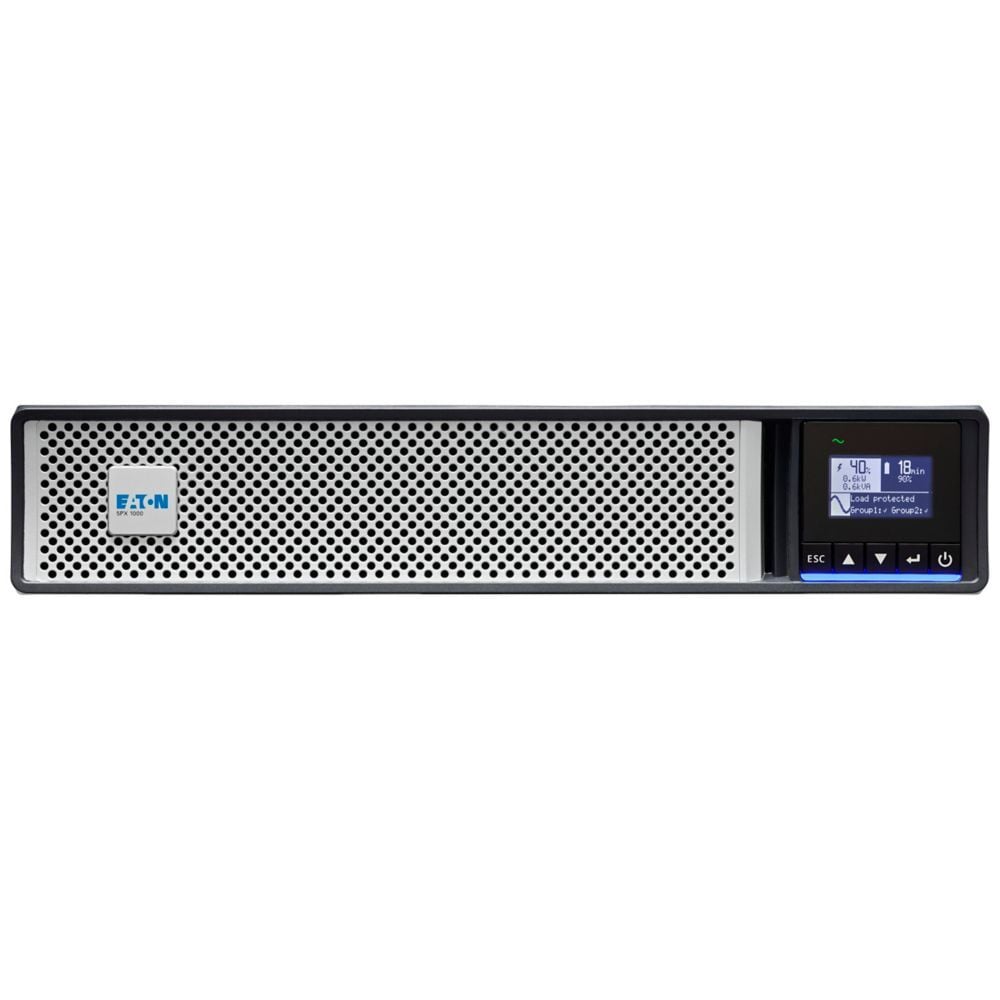

For communications, this model features a multilingual graphical LCD display for real‑time status, load metrics, and diagnostics. Standard interfaces include a USB port (HID‑compliant), an RS‑232 serial port, mini‑terminal blocks for remote On/Off and Remote Power Off, and dry contacts (3 outputs, 1 input) for integration with external systems. One expansion slot allows insertion of an optional communications card (e.g., network management) for remote access and integration with Eaton’s Intelligent Power Manager and Intelligent Power Protector software.
