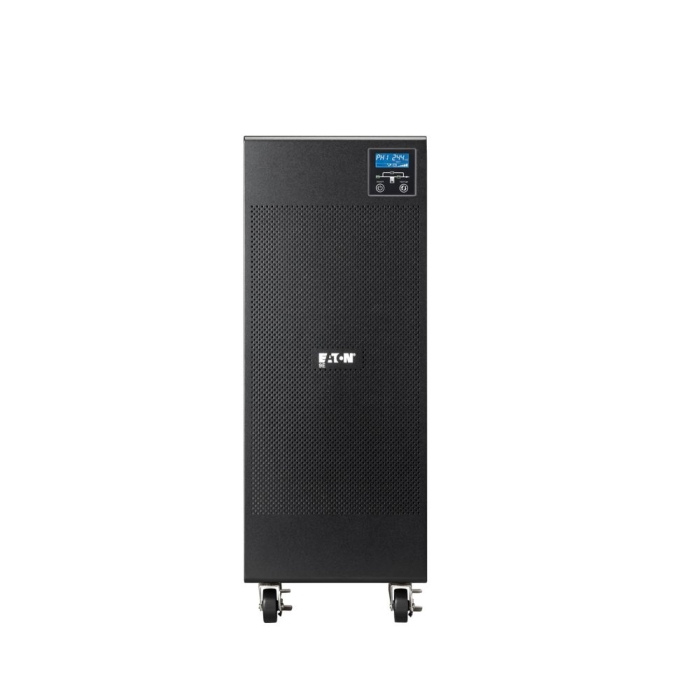

Eaton 9E10KI 9E 10kVA 8kW Input and Output Hardwired Tower UPS
Call For The Best Price
Call: +971-4-3360300 | Email: [email protected]
The Eaton 9E10Ki is a high-performance, double-conversion online UPS designed for mission-critical applications that require reliable and continuous power protection. It is part of the Eaton 9E Series, known for its efficiency, scalability, and advanced features to ensure the availability of critical IT equipment.
PRODUCT OVERVIEW
The Eaton 9E10Ki is a high-performance, double-conversion online UPS designed for mission-critical applications that require reliable and continuous power protection. It is part of the Eaton 9E Series, known for its efficiency, scalability, and advanced features to ensure the availability of critical IT equipment.
Key Features:
-
Double-Conversion Online Technology: The Eaton 9E10Ki utilizes double-conversion online technology, which constantly converts incoming AC power into DC power and then back to AC. This process provides clean, reliable power to connected devices, protecting them from power disturbances.
-
High Efficiency: The 9E Series is designed for efficiency, reducing energy consumption and operating costs while maintaining high levels of reliability.
-
Scalable Design: Eaton 9E Series UPS systems are designed to be scalable, allowing for the addition of external battery modules to extend runtime as needed.
-
Advanced Battery Management: The UPS features advanced battery management capabilities, including temperature-compensated charging and battery health monitoring, to ensure optimal battery performance and longevity.
-
Wide Input Voltage Range: The UPS can operate on a wide input voltage range, providing flexibility and compatibility with various electrical systems.
-
LCD Display: Many models in the Eaton 9E Series come equipped with an intuitive LCD display for easy monitoring of UPS status, alarms, and other critical information.
-
Hot-Swappable Batteries: The Eaton 9E Series UPS supports hot-swappable batteries, allowing for easy and quick replacement without interrupting connected equipment.
-
Network Connectivity: The UPS offers options for network connectivity, enabling remote monitoring and management of the UPS system.
| Product Name | Eaton 9E10KI 9E 10kVA 8kW Input and Output Hardwired Tower UPS |
|---|---|
| Output Power | 10.0kVA/ 10000VA |
| Input Frequency | 45 – 66 Hz (auto‑sensing, supports 50/60 Hz) |
| Input Voltage Range | 176 – 276 V without derating; up to 110 – 276 V with derating |
| Interface Ports | LCD, RJ-45 Serial, RS-232, USB |
| Control Panel | LCD display (status/measurements) |
| Battery Type | Sealed, lead‑acid (VRLA) 20 batteries (internal) |
| Recharge Time | 12 V / 9 Ah per battery |
| Audible Alarm | Standard UPS alarms for utility fail/low battery/fault (standard for Eaton UPS) |
| Cord Length | Hardwired input (terminal block connection) (UPS uses fixed wiring; no detachable mains cord) |
| Approvals | CE, TUV, IEC/EN 62040‑1, IEC/EN 62040‑2, EAC |
| Dimensions | 708.5 × 262.4 × 612.9 mm |
| Weight | 85.400000 |
| Manufacturer | Eaton |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
