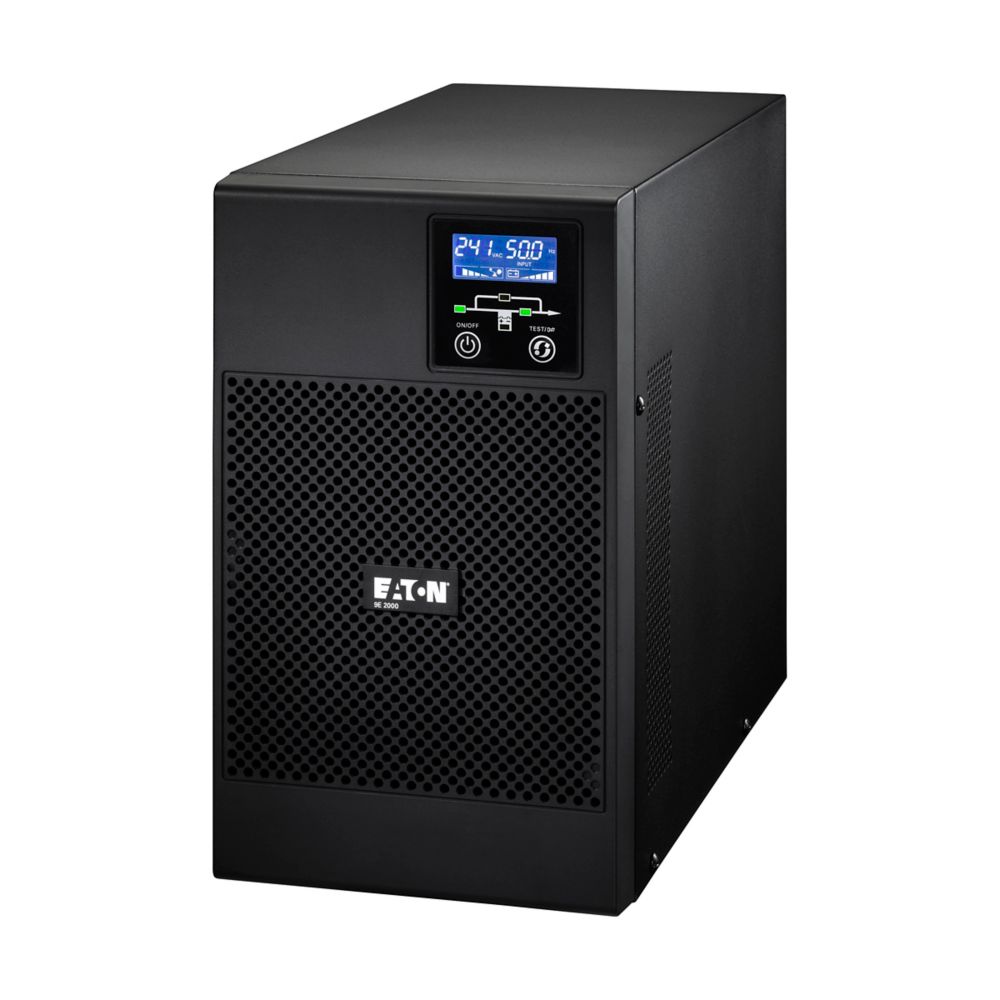

Eaton 9E2000I 2000 VA 1600W Tower UPS Reliable Power Backup

PRODUCT OVERVIEW

Eaton 9E2000I – Online UPS for Critical Power Protection

The Eaton 9E2000I is a high‑performance online double‑conversion uninterruptible power supply (UPS) designed to provide reliable, clean, and continuous AC power for critical infrastructure and sensitive electronics in commercial, IT, and industrial environments. Rated at 2000 VA / 1600 W, this unit supports moderate to heavy loads such as servers, network equipment, telecommunications hardware, and workstation clusters where power disturbances and outages can lead to data loss or downtime.

Robust Electrical Performance

The 9E2000I supports a wide input voltage range (176–300 V without derating, up to 100–300 V with derating) and operates across a 40–70 Hz frequency range, ensuring uninterrupted operation even under severe mains disturbances. It delivers a pure sine waveform output with a tight voltage regulation (± 2%) and a typical online efficiency of up to ~91%, optimizing power usage while reducing energy waste and heat generation.

Intelligent Battery Backup & Management

Internally, the unit houses six sealed, lead‑acid (VRLA) batteries rated at 12 V/7 Ah each, providing immediate backup power during mains failure. The UPS includes automatic battery testing and deep-discharge protection to maximize battery health and ensure readiness. Extended battery runtime can be configured through compatible external battery modules (EBMs) for applications needing longer hold‑up times.

Key Features:

• Line-Interactive Technology: The 9E2000i utilizes line-interactive technology to correct fluctuations in voltage without switching to battery power, thereby extending battery life.

• High Efficiency: This UPS is designed for efficiency, providing up to 93% efficiency in Online mode, reducing energy costs, and maximizing runtime.

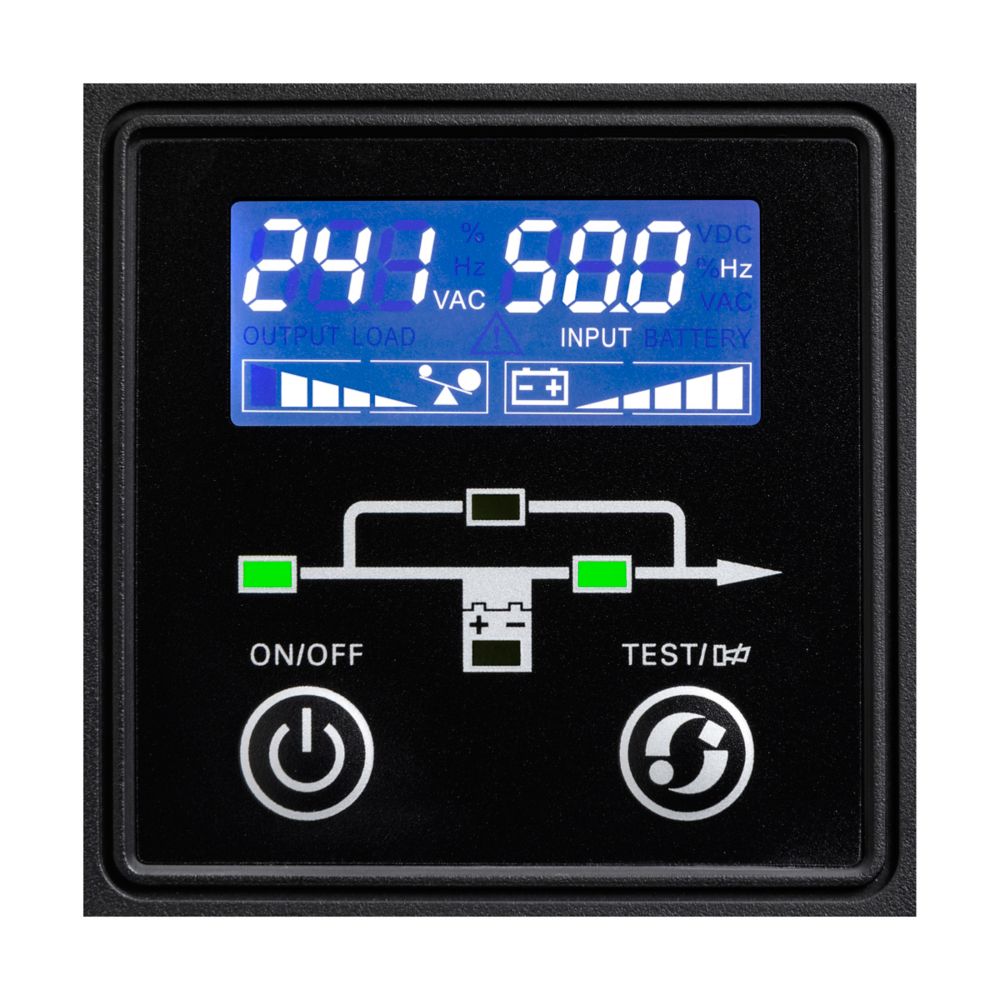

• LCD Display: The intuitive LCD display offers clear status information, including UPS status, battery level, and load level, allowing for easy monitoring and management of the UPS.

• Rack-Mountable: The 9E2000i is designed to be rack-mounted, saving valuable space in server rooms or IT closets.

• Extended Runtime: Depending on the load and configuration, the 9E2000i can provide extended runtime with additional battery modules.

• Hot-Swappable Batteries: Batteries are hot-swappable, allowing for easy and non-disruptive replacement without downtime.

• Advanced Battery Management: The UPS features intelligent battery management capabilities to maximize battery life and performance.

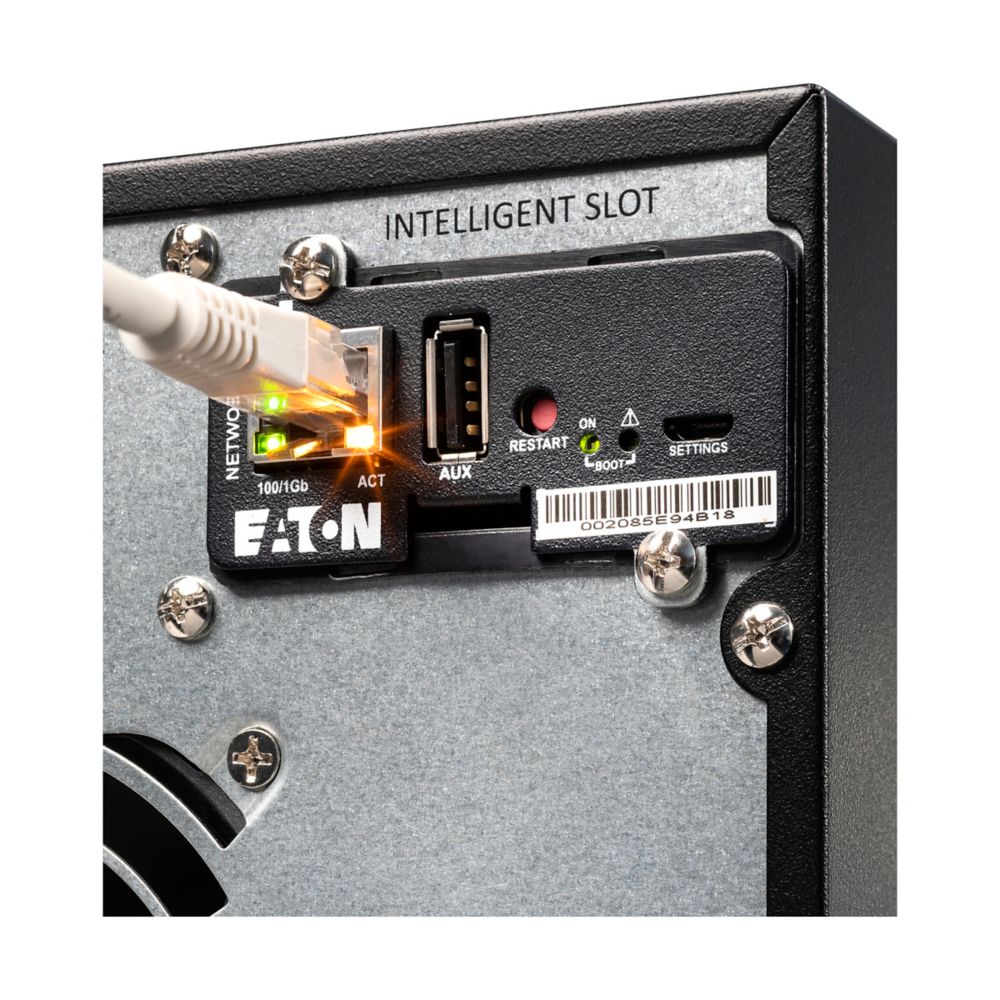

• Remote Monitoring: Supports remote monitoring and management through various connectivity options such as USB and RS-232.
