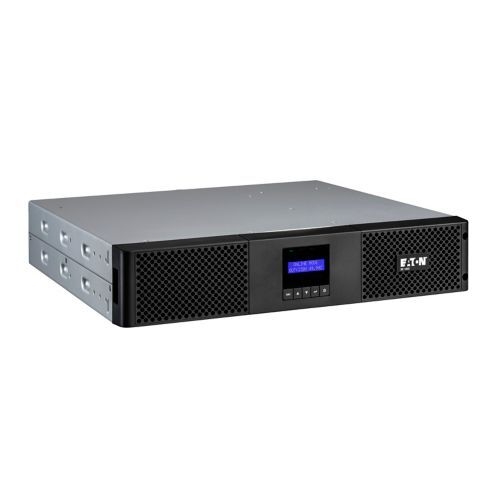

Eaton 9E2000IR 2 kVA / 1800 W Line‑Interactive Rack 2U UPS

PRODUCT OVERVIEW

Eaton 9E2000IR Online UPS

The Eaton 9E2000IR is a high‑performance online/double‑conversion uninterruptible power supply designed to safeguard critical IT systems, servers, and communication equipment against power disturbances and outages. With a 2000 VA / 1800 W capacity, this UPS delivers continuous, clean power through double‑conversion technology that actively regenerates output voltage and frequency independent of input mains quality. Its 2U rack form factor (19‑inch compatible) combines robust protection with space‑efficient installation in server racks or network cabinets.

Electrical Performance and Output Quality

The 9E2000IR provides a pure sine wave output with a 0.9 output power factor, ensuring stable voltage for sensitive loads up to 1800 W. It maintains an output voltage range of 220/230/240 V ± 2 % and supports six IEC C13 receptacles for distributing conditioned power to multiple devices. This UPS continuously monitors and regulates input conditions—correcting voltage and frequency anomalies without transferring to battery whenever possible—making it suitable for critical systems requiring uninterrupted operation

Battery System and Runtime Capability

Equipped with six sealed, lead‑acid batteries (12 V / 7 Ah), the Eaton 9E2000IR delivers essential backup power during mains failures. The internal battery pack incorporates temperature‑compensated charging, automatic self‑testing, and deep discharge protection to optimize performance and prolong service life. The unit also supports optional extended battery modules (EBMs), enhancing runtime for extended power outages or higher‑priority loads beyond the internal supply.

Communications and Management Interfaces

Monitoring and control are facilitated through a multilingual LCD display that reports system status, load levels, and alarms. Standard communication interfaces include USB (HID‑compliant) and RS‑232 serial ports, plus a mini‑terminal block for remote power off (RPO) and dry contact signaling. One expansion slot enables optional network communication cards for remote monitoring and integration with Eaton’s Intelligent Power Manager and Intelligent Power Protector software suites, offering enhanced visibility and management across IT environments.

Mechanical, Environmental, and Compliance Specifications

Mechanically, the 9E2000IR measures approximately 438 mm (W) × 608 mm (D) × 86.5 mm (H) and weighs about 29.9 kg, fitting standard 2U rack space with included mounting hardware. It operates reliably in ambient temperatures from 0 °C to 40 °C with humidity tolerance up to 96 % non‑condensing and altitude capability up to 3000 m. Audible noise stays below 45 dB at 1 m, supporting deployment in typical data centre or equipment room environments. The UPS meets key international standards including IEC/EN 62040‑1 and IEC/EN 62040‑2, and carries the CE Mark, verifying compliance with safety and electromagnetic compatibility requirements.
