Eaton 9E3000I 3000 VA 2400W Tower UPS Reliable Power Backup

PRODUCT OVERVIEW

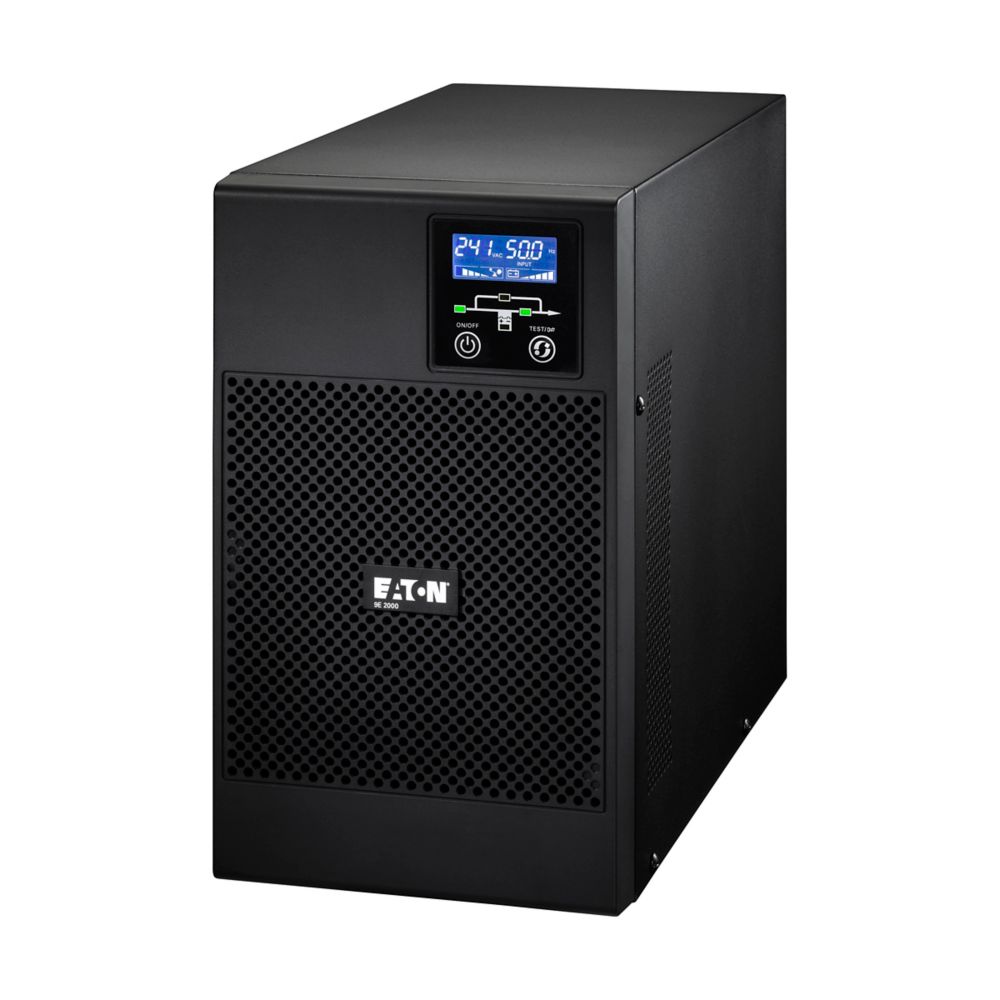

Eaton 9E3000I – High‑Capacity Online UPS for Critical Power Protection

The Eaton 9E3000I is a 3000 VA / 2400 W online double‑conversion uninterruptible power supply (UPS) engineered to deliver high‑quality, uninterrupted power for servers, network infrastructure, storage systems, and other essential electronics in environments with demanding power continuity needs. As part of Eaton’s 9E UPS family, this unit continuously conditions incoming power and regenerates output to provide a stable, clean sine‑wave output—critical for equipment sensitive to power fluctuations and outages.

Power Performance & Electrical Characteristics

The 9E3000I delivers 3000 VA apparent power and 2400 W real power output with a 0.8 output power factor, enabling it to support higher real loads relative to its VA rating. The UPS maintains a tight output voltage regulation of ± 2 % over a wide range of line conditions and supplies a pure sine wave output ideal for sensitive electronics.  Input power handling is equally versatile: the UPS accepts standard 208/220/230/240 V mains, with a wide input voltage range of 176–300 V (100–300 V with derating) and an input power factor of greater than 0.99, enhancing efficiency and reducing stress on upstream circuitry.

Battery System & Runtime

The Eaton 9E3000I uses six sealed lead‑acid (VRLA) batteries with automatic battery testing and deep‑discharge protection for enhanced safety and longevity. Batteries are user-replaceable, and the UPS supports extended battery modules (EBMs) for significantly longer runtime during extended outages. Typical backup times vary with load; at full rated load, the UPS can provide several minutes of runtime sufficient to save data and initiate orderly shutdown procedures, while additional EBMs can extend this into longer bridging periods when required. Key Features:

• Line-Interactive Technology: The 9E3000i utilizes line-interactive technology to correct fluctuations in voltage without switching to battery power, thereby extending battery life.

• High Efficiency: This UPS is designed for efficiency, providing up to 93% efficiency in Online mode, reducing energy costs, and maximizing runtime.

• LCD Display: The intuitive LCD display offers clear status information, including UPS status, battery level, and load level, allowing for easy monitoring and management of the UPS.

• Rack-Mountable: The 9E3000i is designed to be rack-mounted, saving valuable space in server rooms or IT closets.

• Extended Runtime: Depending on the load and configuration, the 9E3000i can provide extended runtime with additional battery modules.

• Hot-Swappable Batteries: Batteries are hot-swappable, allowing for easy and non-disruptive replacement without downtime.

• Advanced Battery Management: The UPS features intelligent battery management capabilities to maximize battery life and performance.

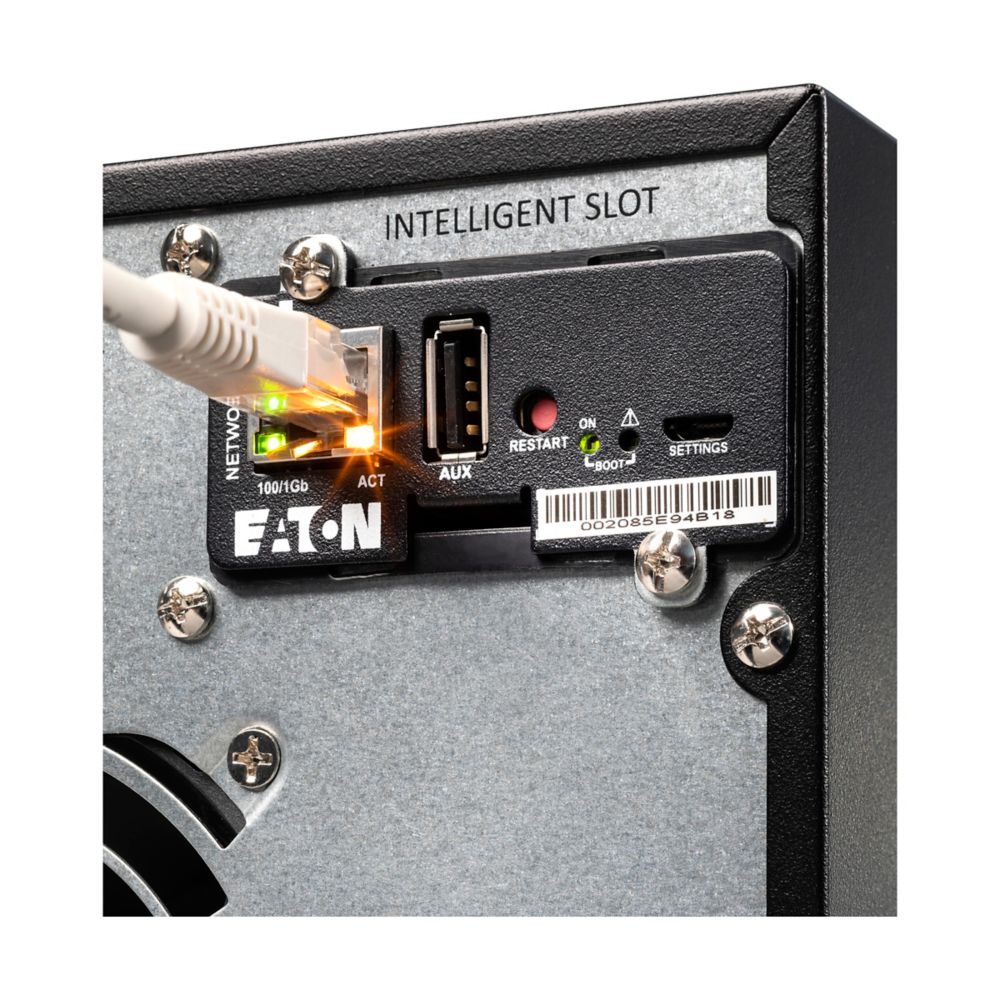

• Remote Monitoring: Supports remote monitoring and management through various connectivity options such as USB and RS-232.
