Eaton 9E3000IR 3000 VA / 2700 W Online Double‑Conversion Rack/Tower UPS

PRODUCT OVERVIEW

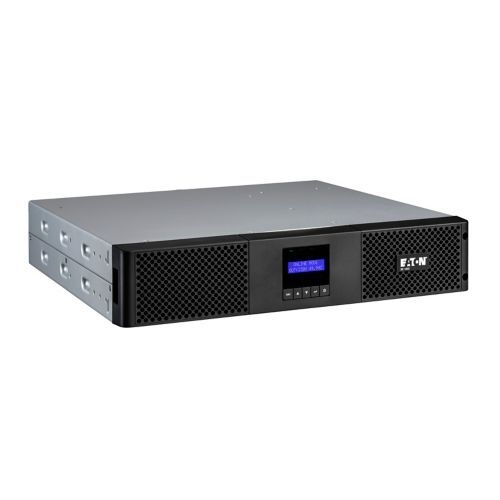

Eaton 9E3000IR Online UPS

The Eaton 9E3000IR is a robust online/double‑conversion uninterruptible power supply (UPS) engineered to provide clean, uninterrupted power for critical IT systems, network hardware, and sensitive electronic equipment. With a 3000 VA / 2700 W capacity and 0.9 output power factor, it delivers reliable power conditioning and backup during mains disturbances, including surges, sags, and outages. The unit is designed in a space‑saving 2U rackmount form factor (19‑inch compatible), enabling installation in server racks, telecom cabinets, and data centre environments.

Electrical Performance and Output Characteristics

This UPS uses online/double‑conversion topology to isolate connected loads from irregularities on the utility supply, ensuring a pure sine wave output with low total harmonic distortion. It supports a configurable output voltage range of 220/230/240 V ±2 % and includes (6) IEC C13 and (1) IEC C19 outlets, allowing multiple devices to be powered and protected simultaneously. The nominal output voltage defaults to 230 V, and the system maintains stable power delivery under variable line conditions.

Battery System and Runtime Management

The 9E3000IR employs six sealed, lead‑acid batteries (12 V / 9 Ah) that provide crucial runtime during mains outages. Battery management features include temperature‑compensated charging, automatic battery tests, and deep‑discharge protection, optimizing performance and extending service life. Extended runtime capability is enabled through support for up to four optional external battery modules (EBMs), allowing the UPS to deliver longer backup durations where required.

Communications and Manageability

For monitoring and control, this model includes a multilingual LCD display that provides real‑time status, alarms, and diagnostics. Communication interfaces consist of a USB port (HID‑compliant), an RS‑232 serial port, and a mini‑terminal block for remote power off (RPO) signaling. One expansion slot supports optional communication cards, enabling network integration and remote management through Eaton’s Intelligent Power Manager and Intelligent Power Protector software suites. A potential‑free switch contact is also available for integration with external automation or alarm systems.

Physical, Environmental, and Compliance Details

Mechanically, the Eaton 9E3000IR measures approximately 608 mm (depth) × 438 mm (width) × 86.5 mm (height) and weighs around 31.3 kg, combining industrial strength with a rack‑optimized footprint. It operates reliably in ambient temperatures from 0°C to 40°C and tolerates relative humidity up to 96% non‑condensing, with altitude support up to 3000 m. Noise levels are kept below 45 dB at 1 m, suitable for data center and equipment room environments. The unit is certified to international safety and EMC standards, including IEC/EN 62040‑1 and IEC/EN 62040‑2, and is CE marked for global compliance.
