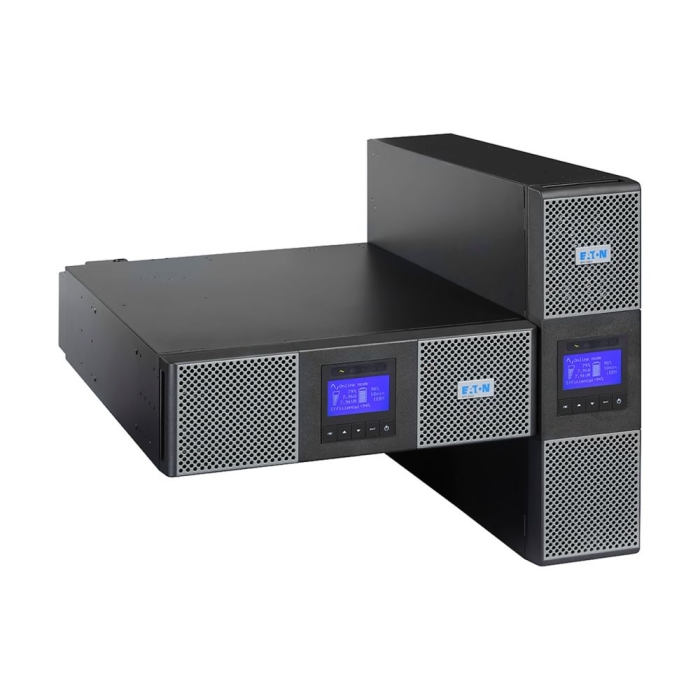

Eaton 9PX11KIPM31 11 kVA 10 kW Input and Output Hardwired 3U Rack/Tower UPS
The Eaton 9PX11KiPM31 is a high-performance, double-conversion online UPS designed for critical IT and electrical applications. It offers reliable and efficient power protection for servers, network equipment, storage systems, and other sensitive devices.
PRODUCT OVERVIEW
The Eaton 9PX11KiPM31 is a high-performance, double-conversion online UPS designed for critical IT and electrical applications. It offers reliable and efficient power protection for servers, network equipment, storage systems, and other sensitive devices.
Key Features:
-
Double-Conversion Online Technology: The 9PX11KiPM31 utilizes double-conversion online technology, providing clean, continuous power to connected equipment by converting incoming AC power to DC and then back to AC.
-
High Efficiency: The UPS is designed for efficiency, offering up to 95% efficiency in Online mode, reducing energy consumption and operating costs.
-
Scalable Design: The 9PX11KiPM31 is designed to be scalable, allowing for additional External Battery Modules (EBMs) to be added to extend runtime as needed.
-
LCD Display: An intuitive LCD display provides real-time information about UPS status, alarms, battery capacity, and more. This allows for easy monitoring and management of the UPS system.
-
Advanced Battery Management: The UPS features intelligent battery management capabilities, including temperature-compensated charging and battery health monitoring, to ensure optimal battery performance and longevity.
-
Remote Management: The UPS supports remote monitoring and management through various connectivity options, such as USB, RS-232, and SNMP (optional network card required).
-
Hot-Swappable Batteries: The 9PX11KiPM31 supports hot-swappable batteries, allowing for easy and non-disruptive battery replacement.
-
High Power Density: This UPS offers high power density, providing 11 kVA / 10 kW of power in a compact form factor.
| Product Name | Eaton 9PX11KIPM31 11 kVA 10 kW Input and Output Hardwired 3U Rack/Tower UPS |
|---|---|
| Output Power | 10.0kVA/ 10000VA |
| Output Voltage | 240 Volts |
| Input Frequency | 40-70 Hz |
| Input Voltage Range | Hardwired 400 V default (380/400/415 V); range 305–480 V |
| Interface Ports | Contact Closure, LCD, RS-232, USB |
| Control Panel | Multilingual graphical LCD display |
| Battery Type | No internal battery (UPS power module only; requires external battery modules) |
| Recharge Time | Not applicable (no internal battery) |
| Audible Alarm | Yes (standard UPS alarms) |
| Cord Length | Hardwired input (no plug cable) |
| Approvals | CE, EAC, IEC/EN 62040‑1/2 certifications |
| Dimensions | 700 × 440 × 130 mm (D×W×H for module) |
| Weight | 23.000000 |
| Color | Black |
| Country of Origin | United Arab Emirates |
