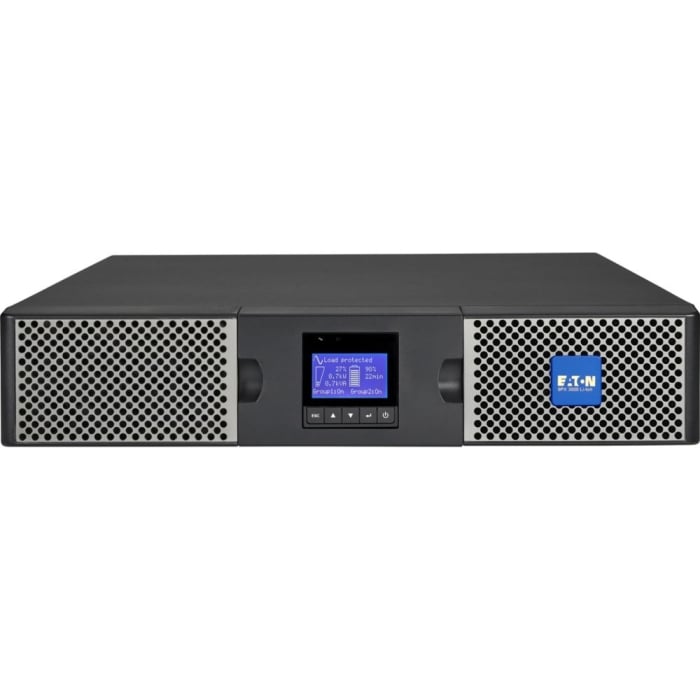

Eaton 9PX3000IRT2U-L 3000 VA 3000 W 2U Rack/tower UPS
Call For The Best Price
Call: +971-4-3360300 | Email: [email protected]
The Eaton 9PX3000IRT2U-L is a high-performance, double-conversion online UPS (Uninterruptible Power Supply) designed to provide reliable power protection for critical IT and electrical equipment. It is part of the Eaton 9PX series, known for its efficiency, reliability, and advanced features.
PRODUCT OVERVIEW
The Eaton 9PX3000IRT2U-L is a high-performance, double-conversion online UPS (Uninterruptible Power Supply) designed to provide reliable power protection for critical IT and electrical equipment. It is part of the Eaton 9PX series, known for its efficiency, reliability, and advanced features.
Key Features:
-
Double-Conversion Online Technology: The 9PX3000IRT2U-L utilizes double-conversion online technology, ensuring continuous, clean power delivery to connected devices by converting incoming AC power to DC and then back to AC.
-
High Efficiency: The UPS is designed for efficiency, providing up to 94% efficiency in Online mode, which helps to reduce energy costs and minimize heat dissipation.
-
LCD Display: An intuitive LCD display provides real-time UPS status information, including input/output voltage, battery level, load level, and more. This allows for easy monitoring and management of the UPS.
-
Rack-Mountable: The 9PX3000IRT2U-L is designed for rack-mount installation in standard 19-inch server racks, saving valuable floor space.
-
Scalable Runtime: The UPS offers the option to add additional External Battery Modules (EBMs) for extended runtime as needed.
-
Hot-Swappable Batteries: Batteries are hot-swappable, allowing for easy and non-disruptive battery replacement without downtime.
-
Advanced Battery Management: The UPS features intelligent battery management capabilities, including temperature-compensated charging and battery health monitoring, to maximize battery life and performance.
-
Remote Monitoring: Supports remote monitoring and management through various connectivity options such as USB, RS-232, and SNMP (optional network card required).
| Product Name | Eaton 9PX3000IRT2U-L 3000 VA 3000 W 2U Rack/tower UPS |
|---|---|
| Output Power | 3.0kVA/ 3000VA |
| Input Frequency | 40 – 70 Hz (auto-sensing; 50/60 Hz nominal) |
| Input Voltage Range | 176 – 276 V (100 – 276 V with derating) |
| Interface Ports | LCD, RS-232, USB |
| Control Panel | LCD display (status/measurements) |
| Battery Type | Lithium-ion (internal, hot-swappable; battery management system) |
| Recharge Time | Not specified by Eaton (Li-ion typically recharges faster than lead-acid but exact spec not published) |
| Audible Alarm | Standard UPS audible alarms (mains fail / low battery / fault) (standard for 9PX models — not explicitly spec’d) |
| Cord Length | Input: 1.8 m (C20 connector) |
| Approvals | CE Marked, UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, cULus, CSA 22.2, FCC Class B, CISPR22 Class B, EAC, Energy Star (common regional compliance set) |
| Dimensions | 440 × 86.5 × 605 mm (2U rack format) |
| Weight | 22.800000 |
| Manufacturer | Eaton |
| Color | Black |
| Country of Origin | United States |
