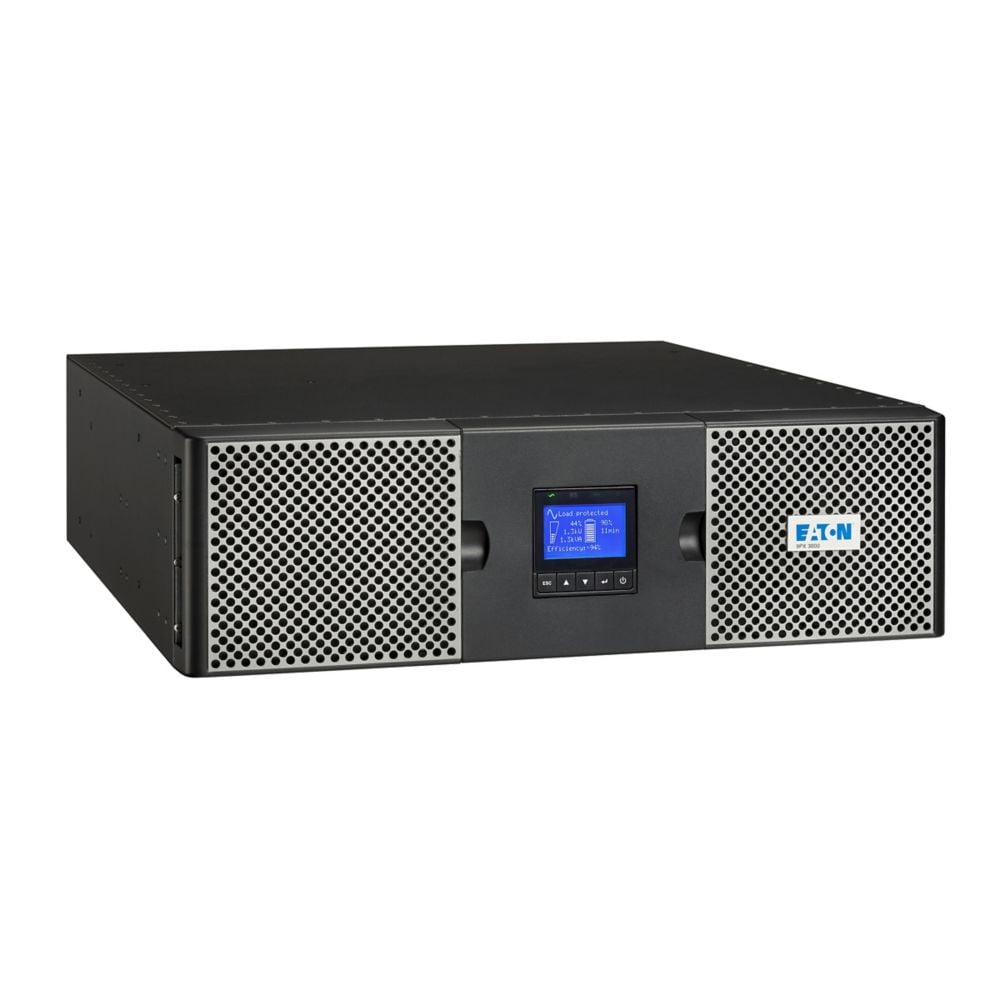

Eaton 9PX3000IRTM 3000VA/3000W Online Double Conversion Rack/Tower Marine UPS
Key Features:
-
Double-conversion online UPS technology delivers continuous clean and reliable 3000W power protection.
-
Unity power factor (3000VA/3000W) provides maximum usable power for critical equipment.
-
Up to 94% operating efficiency helps reduce energy consumption and cooling costs.
-
Hot-swappable battery support with optional extended battery modules enables longer runtime and easy maintenance.
-
Multilingual graphical LCD display with advanced communication options simplifies UPS monitoring and management.
PRODUCT OVERVIEW
Reliable 3000VA Online Double-Conversion UPS
The Eaton 9PX3000IRTM is a high-performance 3000VA/3000W online UPS designed to deliver continuous, clean power for mission-critical equipment. Its double-conversion topology protects connected devices from voltage fluctuations, surges, and power outages. With a unity power factor, it provides full 3000W output, making it ideal for demanding IT and industrial applications.
Advanced Power Protection and High Efficiency
This UPS continuously regulates voltage and frequency to ensure a stable power supply under varying electrical conditions. With up to 94% efficiency in online mode, it helps reduce energy consumption and cooling costs while maintaining superior protection. The built-in internal bypass ensures uninterrupted operation during maintenance or internal faults.
Flexible Rack/Tower Installation
Designed for versatile deployment, the Eaton 9PX3000IRTM features a compact 3U rack/tower convertible design with mounting accessories included. It supports both rack-mounted and standalone tower installations, making it suitable for data centers, server rooms, marine environments, and network infrastructure. The multilingual LCD display provides real-time monitoring and simplified system management.
Extended Runtime and Intelligent Connectivity
The UPS is equipped with sealed lead-acid batteries and supports extended battery modules (EBMs) for longer backup runtime. It includes USB and RS232 communication ports, remote management interfaces, and an expansion slot for optional network cards. Compatibility with Eaton Intelligent Power software enables efficient remote monitoring and power management.
| Product Name | Eaton 9PX3000IRTM 3000VA/3000W Online Double Conversion Rack/Tower Marine UPS |
|---|---|
| Output Power | 3.0kVA/ 3000VA |
| Output Voltage | 230 Volts |
| Input Frequency | 40-70 Hz |
| Input Voltage Range | 176-276 V (100-276 V with derating) |
| Interface Ports | Contact Closure, LCD, RS-232, USB |
| Control Panel | LCD Display |
| Battery Type | Sealed, lead-acid |
| Recharge Time | Not officially specified by Eaton |
| Audible Alarm | Standard UPS alarms (battery mode, fault, overload; not quantified) |
| Dimensions | PRODUCT LENGTH/DEPTH 48.5 cm PRODUCT HEIGHT 13 cm PRODUCT WIDTH 44 cm |
| Weight | 27.500000 |
| Manufacturer | Eaton |
| Color | Black |
Product Datasheet
