Eaton 9SX 3000I 6 Minutes Runtime UPS Reliable Power Backup

PRODUCT OVERVIEW

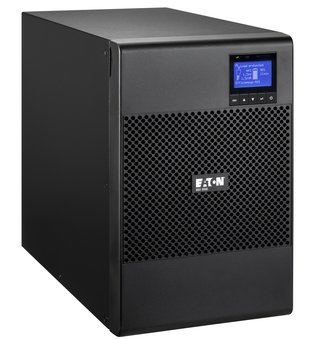

Eaton 9SX 3kVA Power Factor Correction UPS (6 Minutes Runtime)

The Eaton 9SX3000I is a robust 3000 VA / 2700 W online double‑conversion uninterruptible power supply (UPS) designed to deliver dependable, clean and uninterrupted power for critical IT equipment, data infrastructure and network devices. With online/double‑conversion topology, this UPS continuously regenerates its output waveform and isolates connected systems from mains irregularities, including voltage sags, surges, frequency deviations and complete power failures—ensuring optimal uptime for sensitive electronics.

Power Delivery & Electrical Performance

At the core of the 9SX3000I is Eaton’s true online double‑conversion architecture, which provides a pure sine wave output regulated within ± 2 % across common nominal voltages (200/208/220/230/240 V). The UPS supports a 0.9 output power factor, allowing more real power to be delivered to connected loads compared with traditional 0.8 devices. Input power management is equally flexible: it accepts a broad input voltage range (200–276 V without derating) and operates across 40–70 Hz, accommodating unstable grid conditions without frequent battery switchover. The UPS also maintains an input power factor greater than 0.99, enhancing overall efficiency and reducing upstream stress.

Battery System & Runtime Capabilities

The 9SX3000I features eight sealed lead‑acid (VRLA) batteries with hot‑swappable internal modules, allowing for quick battery maintenance or replacement without interrupting the connected load. Eaton’s Advanced Battery Management (ABM) and temperature‑compensated charging further enhance battery health, reduce deep‑discharge stress, and extend service life. The UPS also supports external battery modules (EBMs) for extended runtime under extended outages. The system performs automatic battery tests and deep discharge protection checks, with automatic recognition of external battery units, ensuring operational readiness and accurate runtime estimation.

Operational & Environmental Attributes

Engineered for commercial and professional use, the 9SX3000I reliably operates across a wide temperature range (0 °C to 40 °C) and altitudes up to 3000 m. Noise is maintained below 45 dB at 1 m, allowing deployment in office spaces or equipment rooms without disturbance. Compliance with international safety and EMC standards supports global installations. The UPS includes a standard 1.8 m input cord and comes with essential accessories such as output cables, USB and serial cables, and quick-start documentation for straightforward setup.

Key Features & Benefits

• 3000 VA / 2700 W Online Double‑Conversion – Continuous clean power regardless of mains quality.

• Pure Sine Wave Output with 0.9 Power Factor – Maximises usable real power for critical loads.

• Wide Input Voltage & Frequency Range – Reduces unnecessary battery usage under unstable grids.

• Hot‑Swappable Batteries & EBM Support – Enables maintenance without downtime and longer runtime options.

• Advanced Battery Management (ABM) – Optimises battery longevity and performance.

• Multilingual Graphical LCD – Intuitive local monitoring and configuration.

• Flexible Connectivity & Expansion – USB, RS‑232, dry contacts, and optional network card slot.

• Internal Bypass & Auto‑Shutdown Support – Ensures power continuity and controlled load management.
