Eaton 9SX3000IM 3000 VA / 2700 W Marine Double‑Conversion Online UPS

PRODUCT OVERVIEW

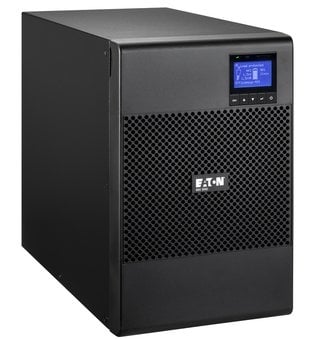

Eaton 9SX3000IM Marine‑Certified Online UPS

The Eaton 9SX3000IM is a high‑reliability online/double‑conversion uninterruptible power supply (UPS) engineered to protect critical IT systems, industrial automation, networking equipment, and power‑sensitive devices from mains disturbances, outages, surges, and frequency anomalies. With a 3000 VA / 2700 W capacity and 0.9 output power factor, it supplies robust real‑power performance in demanding environments. The unit is installed in a tower form factor with intuitive front‑panel controls and a multilingual LCD for real‑time monitoring and configuration.

Electrical Performance and Output Characteristics

Operating on a single‑phase input and output, the 9SX3000IM provides a true sine wave output across eight IEC C13 and one IEC C19 receptacles that support diverse connected loads without additional PDUs. It supports a broad output voltage range of 200/208/220/230/240 V ± 2% and maintains low total harmonic distortion at linear load conditions, ensuring stable power quality for sensitive electronics. The UPS’s topology continuously regenerates output power via online double‑conversion, isolating the load from mains irregularities.

Advanced Battery System and Runtime Flexibility

The Eaton 9SX3000IM incorporates eight sealed, lead‑acid batteries (12 V / 9 Ah) with hot‑swappable internal packs, enabling safe battery replacement without interruption of load power. Eaton’s Advanced Battery Management (ABM) with temperature‑compensated charging, automatic battery tests, deep‑discharge protection, and automatic recognition of external battery units (EBMs) helps extend battery service life and reliability. Users can connect up to four external battery modules to increase runtime for prolonged outages or critical load prioritization.

Mechanical, Environmental, and Compliance Details

The Eaton 9SX3000IM measures roughly 412 mm (D) × 214 mm (W) × 346 mm (H) and weighs about 34 kg, reflecting a robust build for rack‑ready or standalone tower installations. It operates reliably in ambient temperatures from 0 °C to 40 °C with humidity tolerance up to 96 % non‑condensing and altitude capability up to 3000 m above sea level. Audible noise remains below 45 dB at 1 m, and the unit complies with a comprehensive set of standards including IEC/EN 62040‑1/‑2, UL 1778, CSA 22.2, FCC Class B, CISPR22 Class B, CE, cULus, EAC, RCM, and DNV‑GL certification, making it suitable for commercial, industrial, and marine applications.

Key Features & Benefits

• 3000 VA / 2700 W Online Marine Double‑Conversion – Continuous clean power regardless of mains quality.

• Pure Sine Wave Output with 0.9 Power Factor—Maximizes usable real power for critical loads.

• Wide Input Voltage & Frequency Range – Reduces unnecessary battery usage under unstable grids.

• Hot‑Swappable Batteries & EBM Support – Enables maintenance without downtime and longer runtime options.

• Advanced Battery Management (ABM)—Optimizes battery longevity and performance.

• Multilingual Graphical LCD – Intuitive local monitoring and configuration.

• Flexible Connectivity & Expansion—USB, RS‑232, dry contacts, and optional network card slot.

• Internal Bypass & Auto‑Shutdown Support – Ensures power continuity and controlled load management.
