Eaton 9SX5KIRT3UG2 5000 VA / 5000 W Online Double‑Conversion Rack/Tower UPS
The Eaton 9SX5KIRT3UG2 is a robust online/double‑conversion uninterruptible power supply (UPS) engineered to safeguard critical IT infrastructure and sensitive electronics. With an impressive 5 kVA / 5 kW power rating and unity output power factor (1.0), it delivers the full available wattage to connected equipment, maximizing usable power in demanding environments such as server rooms.
PRODUCT OVERVIEW
High‑Capacity Online UPS for Critical Loads

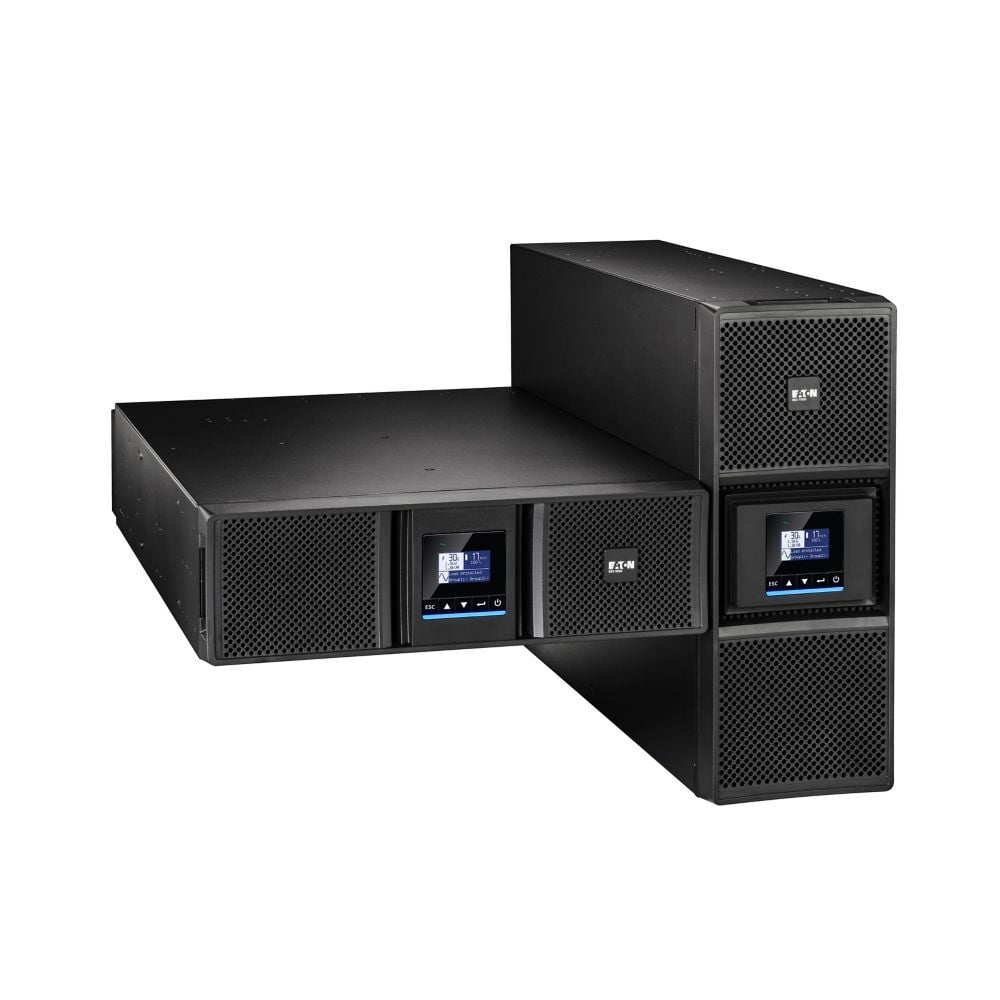

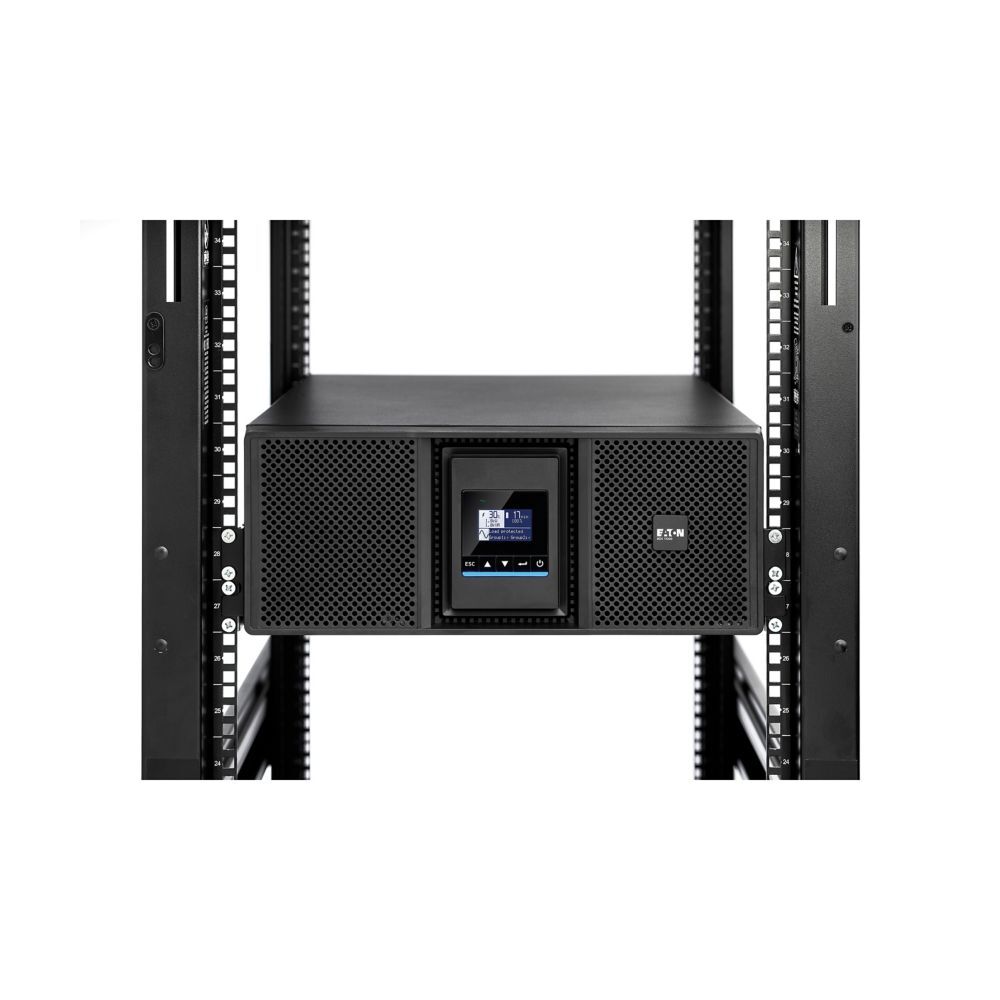

The Eaton 9SX5KIRT3UG2 is a robust online/double‑conversion uninterruptible power supply (UPS) engineered to safeguard critical IT infrastructure and sensitive electronics. With an impressive 5 kVA / 5 kW power rating and unity output power factor (1.0), it delivers the full available wattage to connected equipment, maximizing usable power in demanding environments such as server rooms, edge data closets, and networking racks. It supports both rack (3U) and tower deployment configurations with included mounting hardware, offering flexible physical installation options.
Electrical Performance and Output Characteristics
Employing online/double‑conversion topology, the Eaton 9SX5KIRT3UG2 continuously regenerates its output voltage and frequency, isolating critical loads from mains disturbances including surges, sags, and frequency fluctuations. It outputs a pure sine wave with tight regulation (±1 % nominal) across a configurable voltage range (200/208/220/230/240 V), ensuring stable power delivery for sensitive servers, storage systems, and communication gear. The UPS includes multiple receptacles — (8) IEC C13, (3) IEC C19, and a hardwired output option — providing broad connectivity without additional PDUs.
Battery System and Runtime Management
Internally, the UPS is equipped with 15 sealed lead‑acid batteries (12 V, 5 Ah) managed by Eaton’s Advanced Battery Management+ (ABM+) with temperature‑compensated charging to extend battery lifespan and maximize performance. Batteries are hot‑swappable, allowing replacement without shutting down the UPS, and the system supports connection of external battery modules (EBMs) to extend runtime for prolonged outages or mission‑critical load priorities. Typical runtime at full load is approximately 3.5 minutes, with significantly longer ride‑through at reduced loads or with EBMs installed.
Communications, Control, and Integration

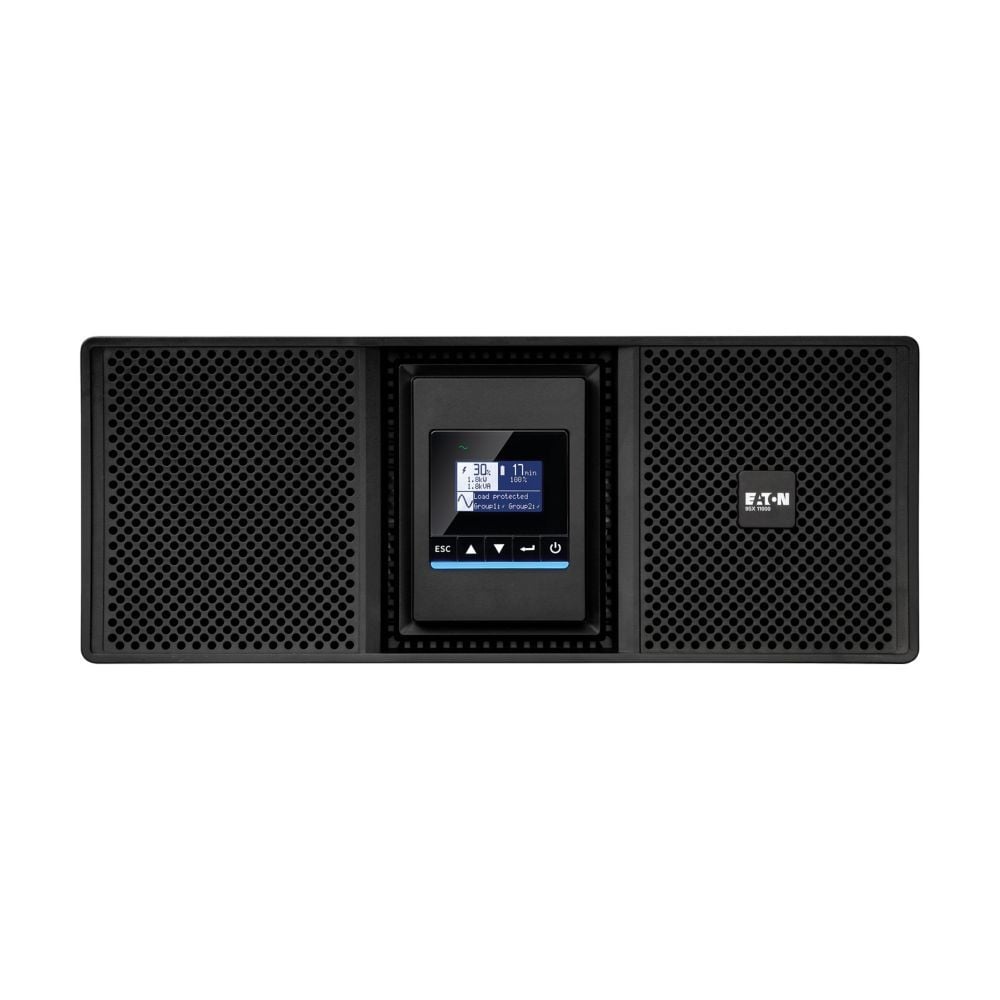

The 9SX5KIRT3UG2 includes a multilingual graphical LCD display for local monitoring of status and diagnostics. Communication interfaces comprise USB (HID‑compliant) and RS‑232 serial ports, along with mini‑terminal blocks for remote On/Off, Remote Power Off (RPO), and dry contact signaling. A single expansion slot allows installation of optional network management cards for SNMP or web‑based remote monitoring. Compatibility with Eaton’s Brightlayer Software suite enables automated shutdown, alerting, and integration with broader IT management frameworks.
| Product Name | Eaton 9SX5KIRT3UG2 5000 VA / 5000 W Online Double‑Conversion Rack/Tower UPS |
|---|---|
| Output Power | 5.0kVA/ 5000VA |
| Output Voltage | 230 Volts |
| Input Frequency | 50–60 Hz nominal (47–70 Hz operational range) |
| Input Voltage Range | 230 V nominal (range: 160–294 V adjustable) |
| Interface Ports | Contact Closure, LCD, RS-232, USB |
| Control Panel | LCD Display |
| Battery Type | Sealed lead‑acid maintenance‑free (VRLA), 4 × 6 V/9 Ah (user‑replaceable) |
| Recharge Time | Not specified in Eaton official specs (exact hours not published) |
| Audible Alarm | Standard UPS alarms (battery mode, fault, overload; not quantified) |
| Cord Length | ~1.8 m (power and USB cables included in package) |
| Approvals | CE, UL 1778, IEC/EN 62040‑1, IEC/EN 62040‑2, EAC, cTUVus |
| Dimensions | 440 mm × 684 mm × 130 mm |
| Weight | 43.100000 |
| Manufacturer | Eaton |
| Color | Black |
