Eaton 9SX6KIRT3UG2 6000 VA / 6000 W Online Double‑Conversion UPS
The Eaton 9SX6KIRT3UG2 (catalogued as Eaton 9SX 6000i RT3U G2) is a high‑capacity online double‑conversion uninterruptible power supply (UPS) designed for mission‑critical power protection in enterprise IT, networking, and infrastructure environments. It delivers 6000 VA / 6000 W of real power at a unity output power factor (1.0), enabling maximum usable energy for connected equipment.
PRODUCT OVERVIEW

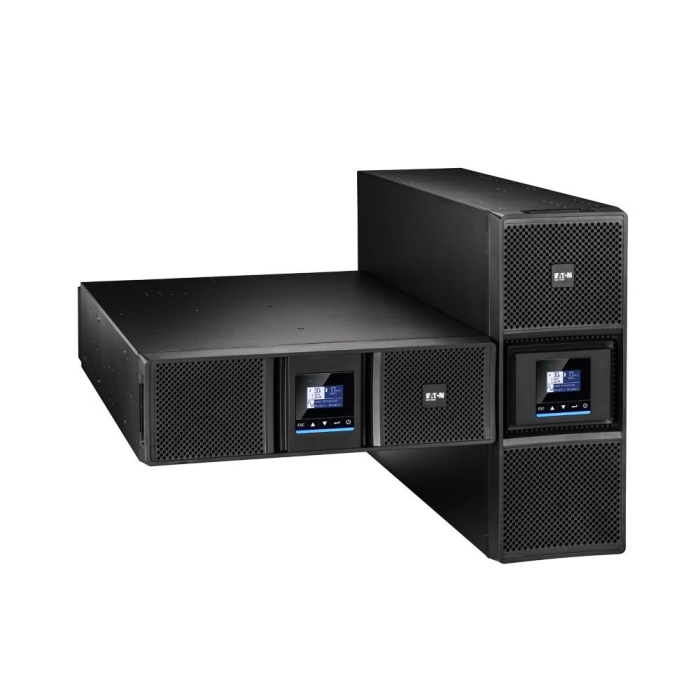

Eaton 9SX6KIRT3UG2 Online UPS
The Eaton 9SX6KIRT3UG2 (catalogued as Eaton 9SX 6000i RT3U G2) is a high‑capacity online double‑conversion uninterruptible power supply (UPS) designed for mission‑critical power protection in enterprise IT, networking, and infrastructure environments. It delivers 6000 VA / 6000 W of real power at a unity output power factor (1.0), enabling maximum usable energy for connected equipment. The unit supports both rack (3 U) and tower installations, with the necessary rack‑mounting kit included in the package.
Electrical Performance and Power Quality
This UPS uses online/double‑conversion topology to continuously regenerate output voltage and frequency — isolating connected loads from mains disturbances, including sags, swells, and frequency variations. It outputs a pure sine wave with low total harmonic distortion and supports a wide output voltage range (200/208/220/230/240 V ±1 %), ensuring clean and stable power for sensitive IT gear. The unit includes (8) IEC C13 outlets, (3) IEC C19 outlets, and a hardwired output for flexible load connections.
Battery System and Runtime Expandability
The Eaton 9SX6KIRT3UG2 features 15 internal sealed lead‑acid batteries (12 V / 5 Ah each) with hot‑swappable capability and advanced battery management. Eaton’s ABM+ intelligent charging with temperature‑compensated charging, automatic battery testing, and deep‑discharge protection helps extend battery life and reliability. The UPS supports extended battery modules (EBMs) for scalable backup runtime during longer outages — automatic recognition of external batteries simplifies expansion. Typical runtime is around 7.1 minutes at half load and 2.6 minutes at full load without EBMs, with significantly longer durations when EBMs are deployed.
Connectivity, Monitoring, and Control
For monitoring and integration, this UPS includes a multilingual graphical LCD display that reports real‑time status, load level, battery condition, and alarms. Standard communication ports include a USB (HID‑compliant) port, RS‑232 serial port, and mini‑terminal blocks for remote On/Off, remote power off (RPO), and dry contact outputs. One expansion slot allows optional communication cards for network management and SNMP/Web integration. The system is compatible with Eaton’s Brightlayer Software suite for remote monitoring, alerting, and automated shutdown.
| Product Name | Eaton 9SX6KIRT3UG2 6000 VA / 6000 W Online Double‑Conversion UPS |
|---|---|
| Output Power | 6.0kVA/ 6000VA |
| Output Voltage | 230 Volts |
| Input Frequency | 50–60 Hz nominal (47–70 Hz operational range) |
| Input Voltage Range | 230 V nominal (range: 160–294 V adjustable) |
| Interface Ports | Contact Closure, LCD, RS-232, USB |
| Control Panel | LCD Display |
| Battery Type | Sealed lead‑acid maintenance‑free (VRLA), 4 × 6 V/9 Ah (user‑replaceable) |
| Recharge Time | Not specified in Eaton official specs (exact hours not published) |
| Audible Alarm | Standard UPS alarms (battery mode, fault, overload; not quantified) |
| Cord Length | ~1.8 m (power and USB cables included in package) |
| Approvals | CE, UL 1778, IEC/EN 62040‑1, IEC/EN 62040‑2, EAC, cTUVus |
| Dimensions | 440 mm × 684 mm × 130 mm |
| Weight | 43.100000 |
| Manufacturer | Eaton |
| Color | Black |
