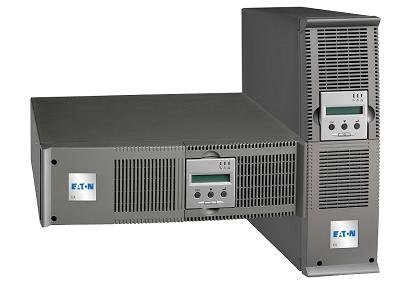

Eaton EX 2200 RT 2200VA/1980Watts UPS

Actual Stock Can Be Confirmed After Placing the Order.
Price Match Request

Please call at +971-4-3360300, Email Us for Special Pricing!

Pay 4 interest-free payments of AED 421.00.Learn more

We provide installation services within UAE. Please contact +971-4-3060300 or Email us to book site survey.

Maximum Availability

• Topology: double conversion on-line UPS with automatic by-pass and power factor correction
• Power share: the Eaton EX output sockets are individually controlled to provide load-shedding to maximize the backup time and provide remote reboot and sequential start-up as standard
• Continuous power supply: Hot swappable batteries. The Hot Swap MBP (Maintenance By-Pass) module allows the UPS to be replaced without interrupting the power supply
• Long backup times: 1 to 4 EXB battery units can be added to the Eaton EX. The Eaton EX 3000XL has a built-in super charger for extra-long backup times

Minimum total cost of ownership

• Easy operation: the LCD gives you access to a wide range of measurements and set-up menus
• Remote supervision: the Eaton software suite offers a wide range of communication option including: SNMP and HTML, ModBus/JBus and relay outputs

Total flexibility

Eaton EX has unmatched Flexibility.

• Format: EX 700 to 1500 are available in tower format or RT2U convertible rack/tower format (compatible with short-depth rack). EX 2200 & 3000 are available in RT2U format (optimized for rack mounting) or RT3U (for tower or short-depth racks)
• Connections: with FlexPDU and Hot Swap MBP, the RT2U and RT3U models can be connected by sockets or terminal blocks. They can be installed as required, on the side or on top of the unit.
• Compatible with high power factor loads: Eaton EX is rated for 0.9 power factor (700 VA/630 W, 1000 VA/900 W, 1500 VA/1350 W, 2200 VA/1980 W and 3000 VA/2700 W)
• Communication: the EX includes both serial and USB ports, plus remote On/Off connector and an extra slot for optional communication cards. The UPS comes with a complete Eaton software suite.

More Information
Product Name Eaton EX 2200 RT 2200VA/1980Watts UPS
Output Power 2.2KVA/ 2200VA
Output Voltage 230 Volts
Input Frequency 100/120/160/184 V to 284V
Input Voltage Range 40 to 70 Hz for load level <20% / <33% / <66% / >=66% of rated output
Interface Ports DB-9 RS-232, LCD, USB
Control Panel On-line double conversion with automatic by-pass and power factor correction
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Recharge Time Automatic weekly test (period adjustable using LCD display or in software supplied), automatic recognition of external battery units => continuous maximisation of backup time + deep discharge protection
Audible Alarm -
Cord Length -
Approvals CE, TüV GS, CB report, cTüV-US
Dimensions 440 x 131 x 490 mm (6)
Shipping Dimensions -
Weight 13.61 Kg
Shipping Weight -
Manufacturer Eaton
Color Grey
