FLIR TG165-X 80×60 IR Resolution -25°C to 300°C MSX Thermal Camera
Key Features:
-
80 × 60 IR Resolution – Captures detailed thermal images for accurate inspection and troubleshooting.
-
-25°C to 300°C Temperature Range – Measures a wide range of surface temperatures for diverse applications.
-
<70 mK Thermal Sensitivity – Detects subtle temperature differences for reliable thermal analysis.
-
FLIR MSX® Image Enhancement – Adds visible-spectrum detail to thermal images for improved clarity.
-
Rugged Thermal Imaging Camera – Designed for professional electrical, mechanical, HVAC, and building inspections.

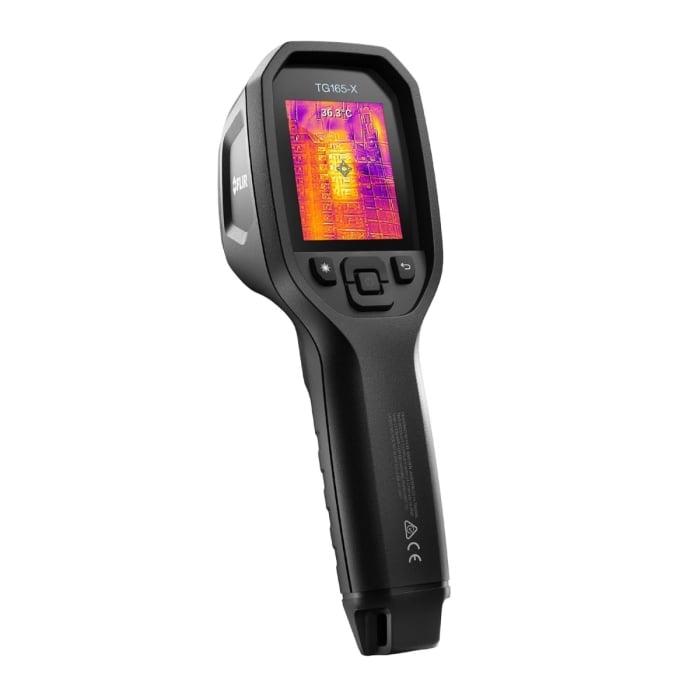

FLIR TG165-X Thermal Imaging Camera
Professional thermal imaging performance for fast, accurate and reliable inspection.
Advanced Thermal Imaging Performance
The FLIR TG165-X is a professional thermal imaging camera designed to help technicians quickly identify temperature variations and potential problems. Its 80 × 60 infrared resolution provides clear thermal imagery for efficient inspection and troubleshooting across a wide range of applications.
Wide Temperature Measurement Range
With a temperature measurement range of approximately -25°C to 300°C, the FLIR TG165-X is suitable for inspecting electrical components, mechanical equipment, HVAC systems, motors, machinery and building surfaces. This broad range allows users to detect abnormal heat conditions before they develop into more serious issues.
Enhanced Thermal Detail with MSX®
FLIR's MSX® image enhancement technology combines thermal imagery with visible-spectrum details to make important features easier to recognize. This helps users identify the exact location of hot spots, components, edges and other physical details while performing inspections.
High Thermal Sensitivity
The FLIR TG165-X delivers thermal sensitivity of <70 mK, helping reveal subtle temperature differences that may otherwise be difficult to detect. This makes the camera a practical solution for preventative maintenance, fault detection, electrical inspection and mechanical troubleshooting.
Professional Inspection & Troubleshooting
Built for practical field use, the FLIR TG165-X provides a convenient way to visualize heat and investigate potential faults without direct contact with components. It is well suited for professionals working in electrical maintenance, HVAC, industrial maintenance, building inspection and equipment diagnostics.
| Product Name | FLIR TG165-X 80×60 IR Resolution -25°C to 300°C MSX Thermal Camera |
|---|---|
| Weight | 0.394000 |
| Battery Type | Rechargeable Li-ion, 3.7 V battery |
| Battery | 5 hours of scanning (LCM medium brightness) 4.5 hours with laser on (LCM medium brightness) |
| Power | Adjustable: off, 5 minutes, 15 minutes, 30 minutes |
| Display | 320 × 240 pixels |
| Accuracy | •50°C to 100°C (122°F to 212°F) - acc. of ±1.5°C (±3°F) •0°C to 50°C/100°C to 300°C (32°F to 122°F/212°F to 572°F) - acc. of ±2.5°C (±5°F) •-25°C to 0°C (-13°F to 32°F) - acc. of ±3°C (±7°F) |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Spectral Range | Uncooled microbolometer/7.5–14 µm |
| Dimensions | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Manufacturer | Flir |
| Color | Black |
| Country of Origin | United States |
