Fluke 124B/EU/S 120 B Series 40Mhz Industrial ScopeMeter Digital Oscilloscope

PRODUCT OVERVIEW

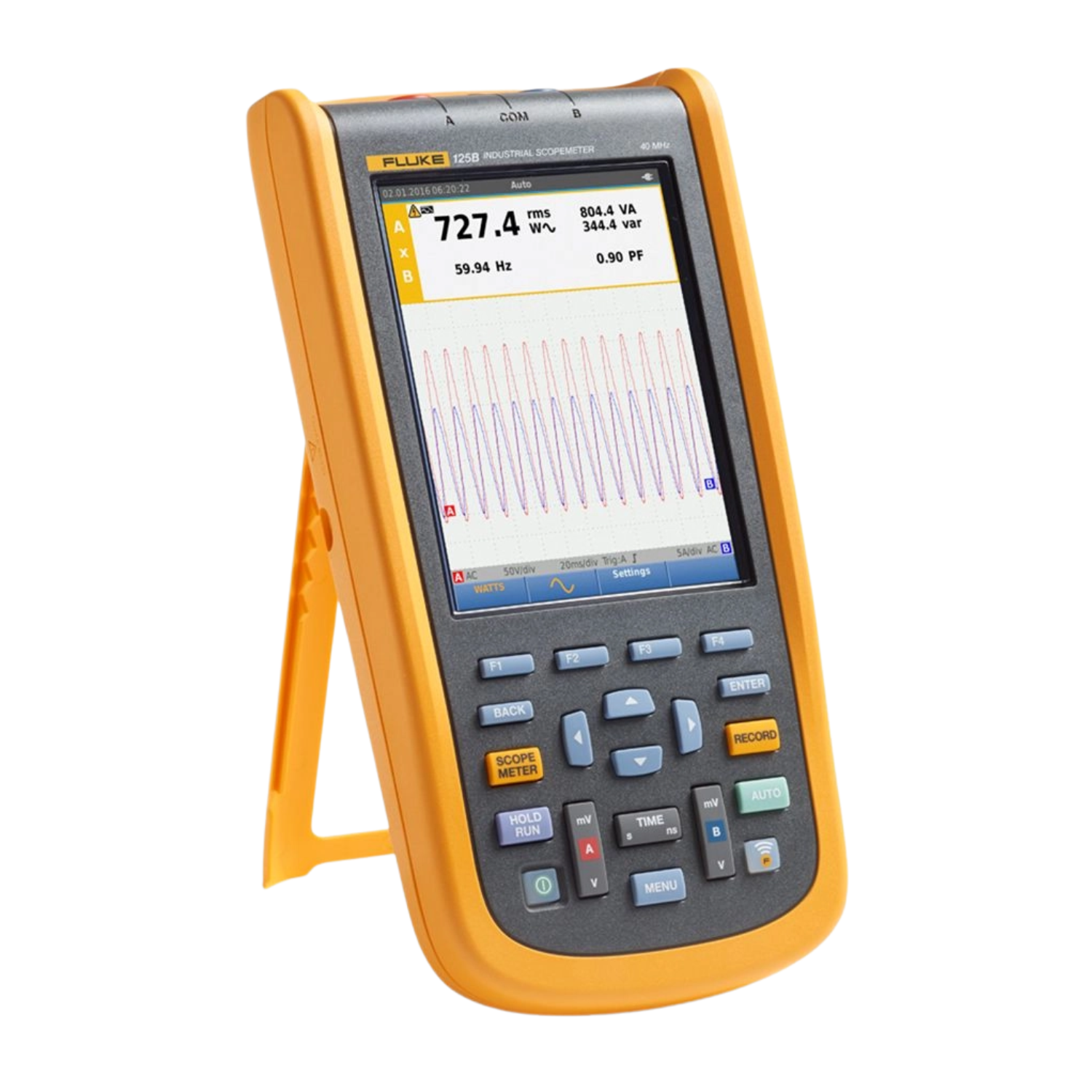

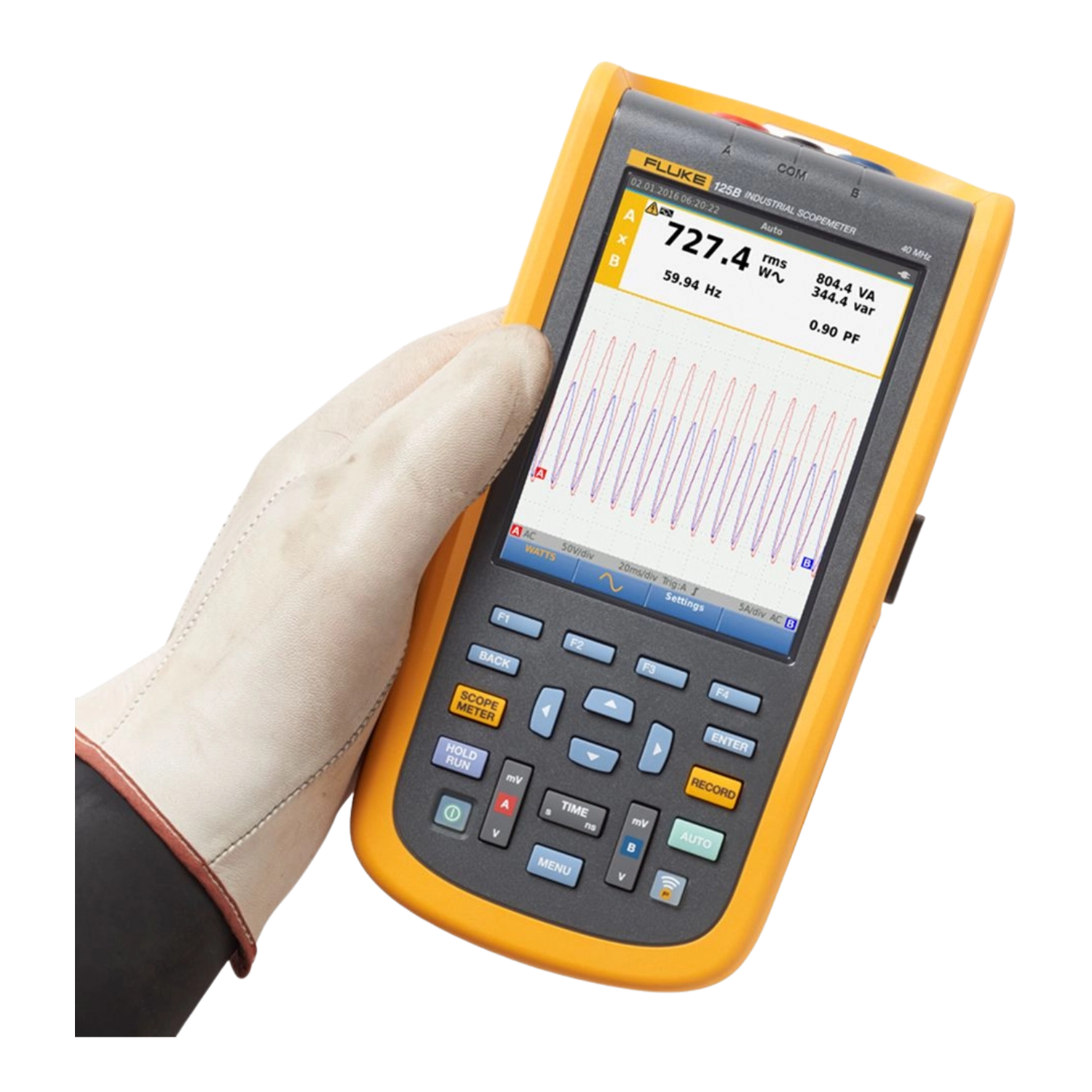

Fluke 124B/EU/S Industrial Scopemeter, 40 MHz

The FLUKE 124B/EU/S is a 120B series ScopeMeter handheld oscilloscope with 40 MHz bandwidth, 2 analog channels, and an EU plug. It is a rugged oscilloscope solution for industrial electrical and electromechanical equipment troubleshooting and maintenance applications. This is a truly integrated test tool with an oscilloscope, multimeter, and high-speed recorder in one easy-to-use instrument. It also integrates with the Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis, and archiving of critical test information.

The 124B includes innovative functions designed to help technicians troubleshoot faster, and it has a rugged design to withstand 3g vibration and 30g shock. IntellaSet technology automatically and intelligently adjusts numerical readouts based on measured signals. The oscilloscope is IP51 rated according to EN/IEC 60529. It has a 5.7-inch color active matrix TFT display (640 x 480 pixels) and is qualified by 600V CAT IV, CE, and CSA.

Features

• Key measurements: Voltage and power waveforms
• Automatically capture, view and analyze complex waveforms: Fluke Connect and View™ triggering automatically displays waveforms without having to adjust amplitude, timebase and trigger settings, while Intellaset™ technology analyzes the signal and automatically displays critical numerical readings, making troubleshooting faster than ever
• View data locally on the instrument, or via Fluke Connect mobile app
• Dual-input digital oscilloscope and multimeter
• 40 MHz oscilloscope bandwidth
• Two 5000-count true-rms digital multimeters
• Connect-and-View trigger simplicity for hands-off operation
• IntellaSet technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
• Shielded test leads for oscilloscope, resistance and continuity measurements
• Resistance, continuity, diode and capacitance meter measurements
• Power measurements (W, VA, VAR, PF, DPF, Hz)
• Save or recall data and instrument setups
• Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures
• External optically isolated USB interface to transfer, archive and analyze scope or meter data
• Optional WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect mobile app
• FlukeView ScopeMeter Software for Windows
• Rugged design to withstand 3 g Vibration, 30 g shock, and rated IP51 according to EN/IEC60529
• Highest safety rating in the industry: safety rated for CAT IV 600 V
