Fluke 125B/EU/S 120 B Series 40Mhz Industrial ScopeMeter Digital Oscilloscope

PRODUCT OVERVIEW

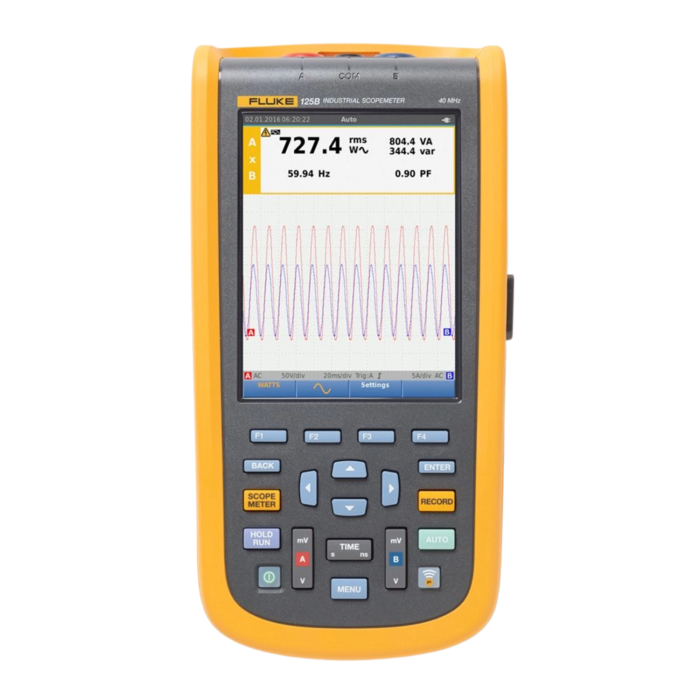

Fluke 125B/EU/S Industrial Scopemeter, 40 MHz

The FLUKE 125B/EU/S is a 120B series ScopeMeter handheld oscilloscope with 40 MHz bandwidth, 2 analog channels, and an EU plug. It is a rugged oscilloscope solution for industrial electrical and electromechanical equipment troubleshooting and maintenance applications. This is a truly integrated test tool with an oscilloscope, multimeter, and high-speed recorder in one easy-to-use instrument. It also integrates with the Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis, and archiving of critical test information.

The 125B includes innovative functions designed to help technicians troubleshoot faster, and it has a rugged design to withstand 3 g vibration and 30 g shock. IntellaSet technology automatically and intelligently adjusts numerical readouts based on measured signals. The oscilloscope is IP51 rated according to EN/IEC 60529. It has a 5.7-inch color active matrix TFT display (640 x 480 pixels) and is qualified by 600V CAT IV, CE, and CSA.

FEATURES

• Dual-input 40 MHz digital oscilloscope with Bus Health Test and SCC Kit
• Features two 5000 counts true-RMS digital multimeters
• Automatic measurements
• A dual-input Trend Plot recorder
• IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
• Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures
