Fluke 125B/EU 120 B Series 40Mhz Industrial ScopeMeter Digital Oscilloscope

PRODUCT OVERVIEW

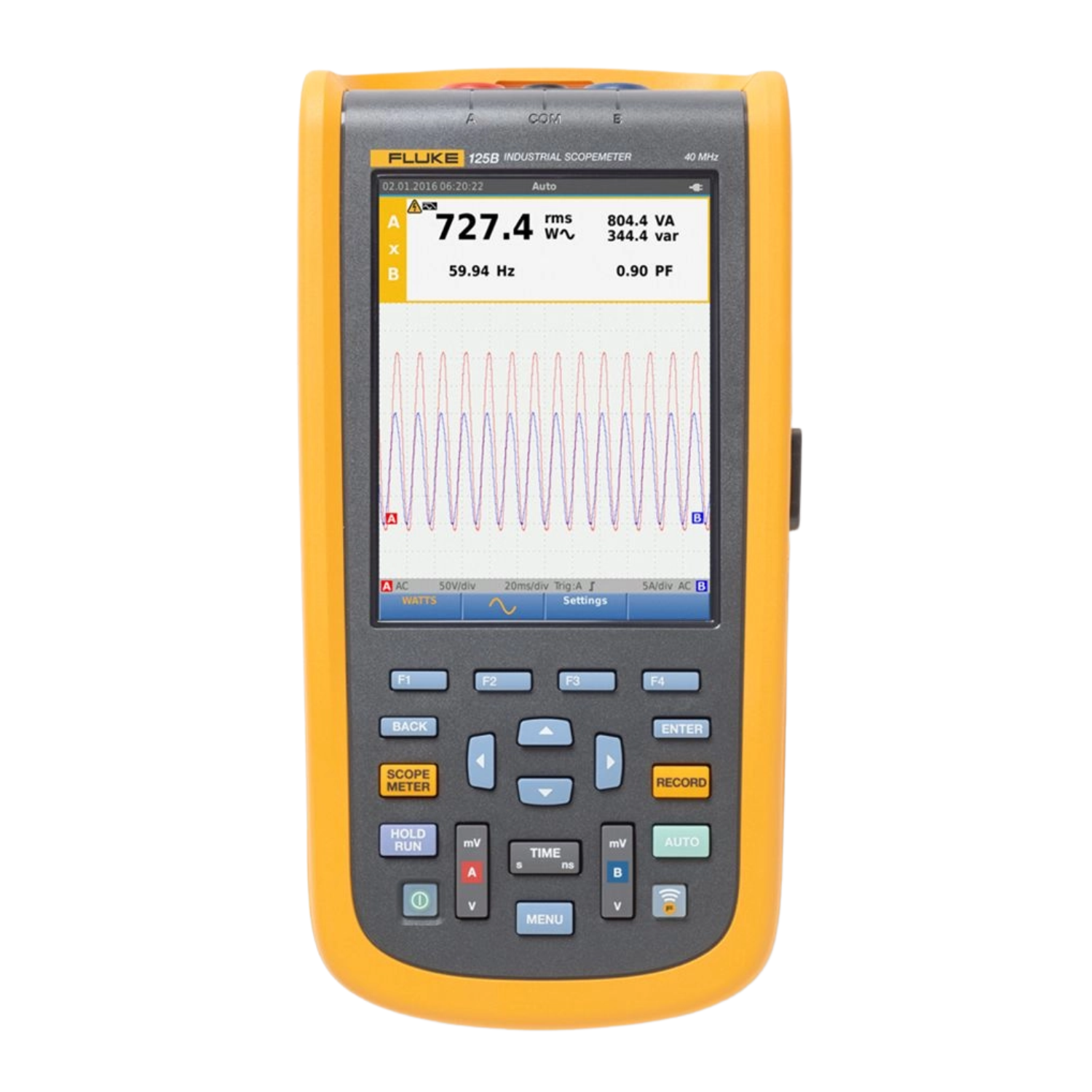

Fluke 125B / EU ScopeMeter 40 MHz

The compact ScopeMeter® 120B Series is the rugged oscilloscope solution for industrial electrical and electromechanical equipment troubleshooting and maintenance applications. It’s a truly integrated test tool, putting the functions of an oscilloscope, multimeter, and high-speed recorder into one, easy-to-use instrument. The ScopeMeter 120B Series also integrates with the Fluke Connect® mobile app and FlukeView® for ScopeMeter software to enable further collaboration, data analysis, and archiving of critical test information.

Faster Electro-Mechanical Troubleshooting

Troubleshoot faster and get the answers you need to keep systems up and running. Display waveforms with Connect and View™ trigger and setup technology. Automatically view related numerical measurements using Fluke IntellaSet™ technology, all without making manual measurement adjustments. With recorder event detection capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.

Connect-And-View™ Triggering For An Instant, Stable Display

Oscilloscope users know how difficult triggering can be. Using the wrong settings can lead to unstable waveform captures, and sometimes, even the wrong measurement data. Fluke’s unique Connect-and-View™ triggering technology recognizes signal patterns and automatically sets up the correct triggering to provide a stable, reliable, and repeatable display.

Connect-and-View™ triggering is designed to work with virtually any signal, including motor drives and control signals without adjusting parameters or even touching a button. Signal changes are instantly recognized, and settings are automatically adjusted, providing a stable display even when measuring multiple test points in quick succession.

Characteristics:

• Cursor readout

• Power measurements (W, VA, VAR, PF, DPF, Hz)

• Harmonics in voltage, current and power

• Bus control function

• TRMS with 5,000 counts

• Connect-and-View ™ triggering for easy hands-free operation

• IntellaSet ™ technology automatically and intelligently adjusts the numerical readout based on the measured signal

• Recorder Event Detect registers hard-to-find intermittent signals on repeating waveforms up to 4. kHz

• Measuring resistance, doorbell, diode, capacity

• Check with BusHealth the physical layer of industrial networks with regard to defined reference levels

• External optically isolated USB interface for sending, archiving and analyzing scoop or measurement data

• An optional WiFi adapter to be connected to the internal USB port to send wireless information to the PC, laptop or Fluke Connect® Mobile App

• Protection class: IP51

• Safety category: CAT IV 600 V
