Fluke 1587FC CAT IV 600V, 600mV Insulation Tester - 1000V
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- Auto-discharge of capacitive voltage for added user protection
- Insulation test (1587 FC: 0.01 MΩ to 2 GΩ) (1577: 0.1 MΩ to 600 MΩ)
- AC/DC voltage, DC millivolts, AC/DC milliamps, Resistance (Ω), Continuity
- Capacitance, diode test, temperature, Min/Max, frequency (Hz)(1587 FC only)
- Auto power off to save battery power
- CAT III 1000 V, CAT IV 600 V measurement category
PRODUCT OVERVIEW

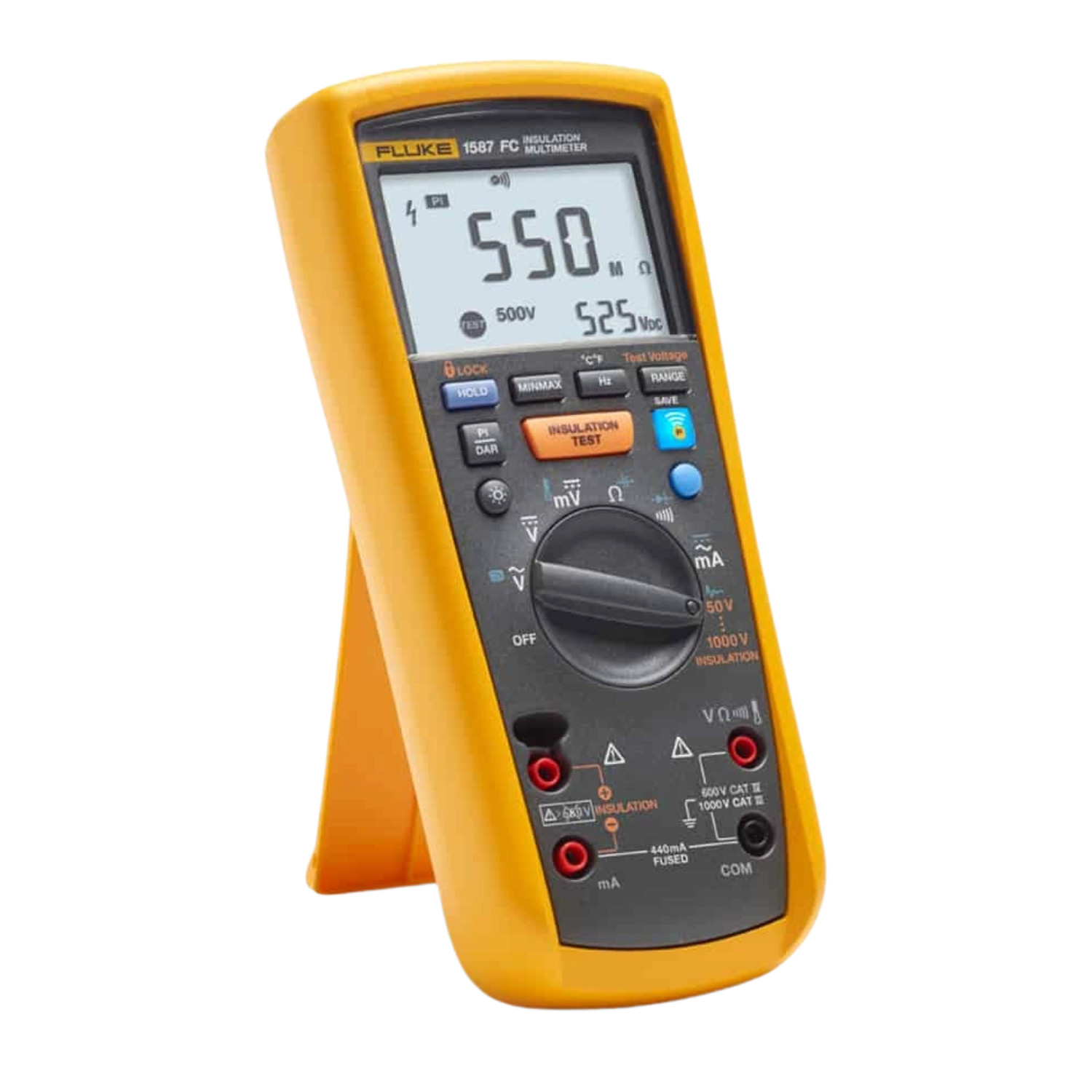

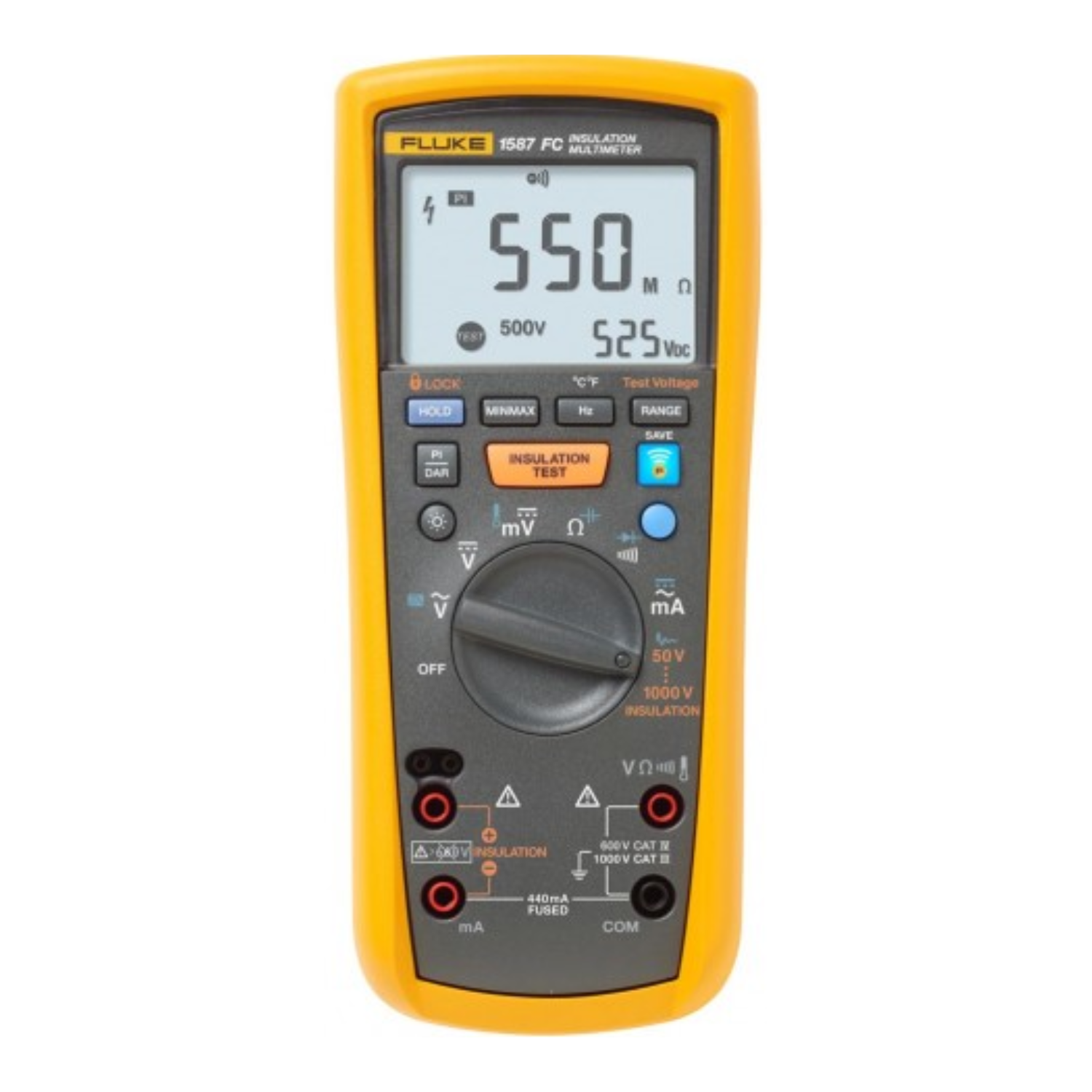

Fluke 1587 FC Insulation Multimeter
Keep yourself safe. Find hidden problems faster. Put the paperwork down.
Fluke Connect + Fluke's 1587 FC Insulation Multimeter helps you identify challenging problems, fix them, and wirelessly communicate your work quickly and easily - all at a safe distance.

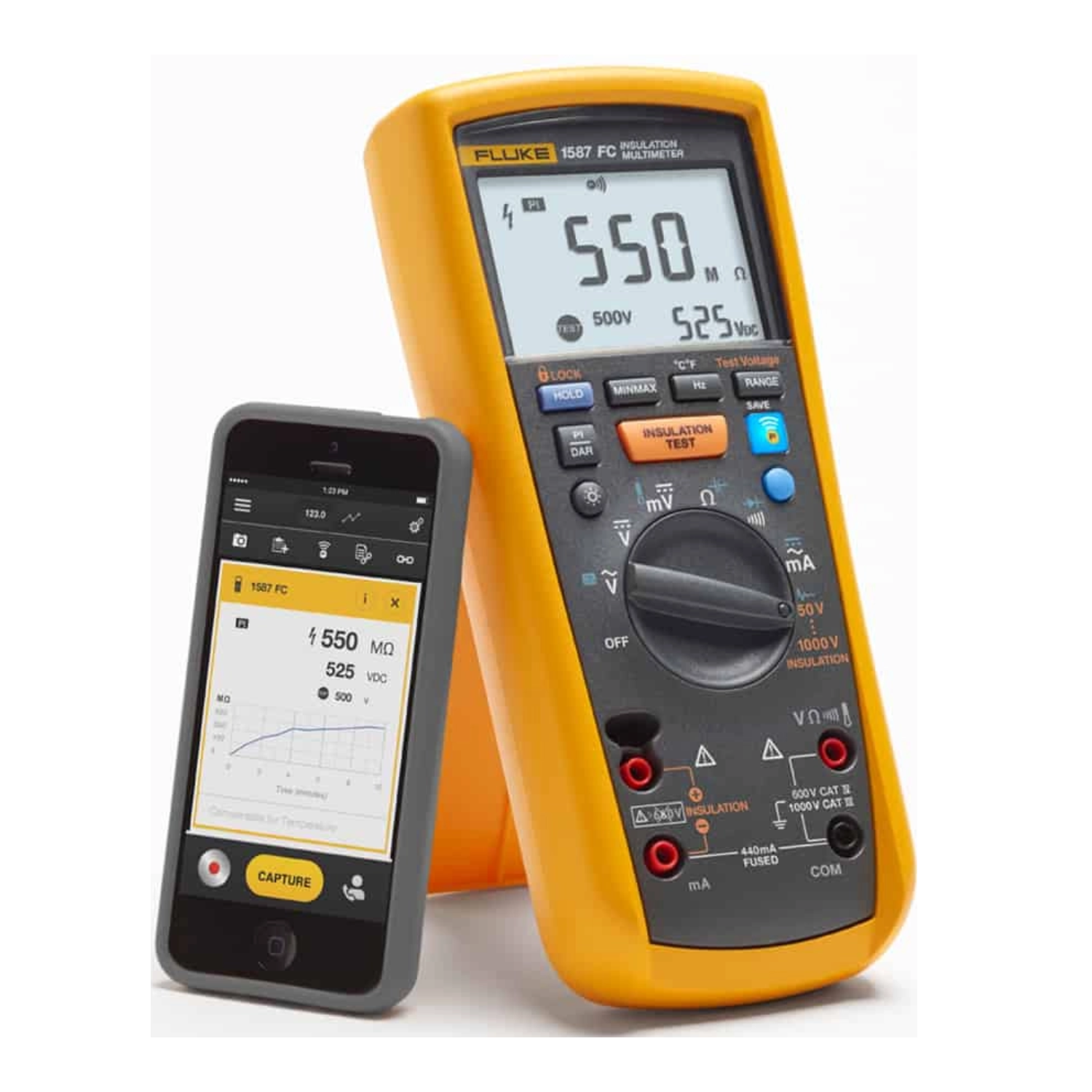

Add Diagnostics With Fluke Connect
The Fluke 1587 FC is Fluke Connect-enabled, so you can download the free Fluke Connect Measurements app to your smartphone and gain additional functions, including the following:
- Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely.
- Prove your job is done by quickly seeing and sharing measurement results wirelessly with your smartphone.
- Quickly find problems by saving and comparing measurements over time on a wireless device.
- PI/DAR timed ratio tests with TrendIt™ graphs to identify the moisture and contaminated insulation problems faster
- Memory storage through Fluke Connect saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
- Temperature compensation to establish accurate baselines and relevant historical comparisons
- Historical tracking and trending of assets to identify insulation degradation over time and allow real-time decisions to be made in the field with Fluke Connect® Assets (sold separately)
- Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
- Includes live circuit detection to prevent insulation test if voltage >30 V is detected
- Supports historical tracking and asset trending of assets to identify degradation over time with Fluke Connect® Assets (sold separately)
- Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
- Includes auto-discharge of capacitive voltage for added user protection
- Measures ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity
- Has capacitance, diode test, temperature, min/max, frequency measurements, and insulation test smoothing reading
- Automatically powers off to save battery power
- Comes with a remote probe, test leads, alligator clips, a K-type thermocouple, a hard case, and a three-year warranty
|
|
|
What's in the box:
- Fluke 1587 FC Insulation Multimeter
- Remote probe
- Test leads
- Alligator clips
- K-type thermocouple
- Soft case
- User documentation
| Product Name | Fluke 1587FC CAT IV 600V, 600mV Insulation Tester - 1000V |
|---|---|
| Voltage | 50, 100, 250, 500, 1000 V |
| Current | 1 mA @ 50 kΩ |
| Capacitance | 1000 nF |
| Frequency | 2.4 GHz ISM Band |
| Battery | Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. |
| Operating Temperature | -20 °C to 55 °C (-4 °F to 131 °F) |
| Weight | 1.000000 |
| Dimensions (WxHxD) mm | 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in) |
| Manufacturer | Fluke |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
