JBL ASB6112 12" Front-Firing Subwoofer Speaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept

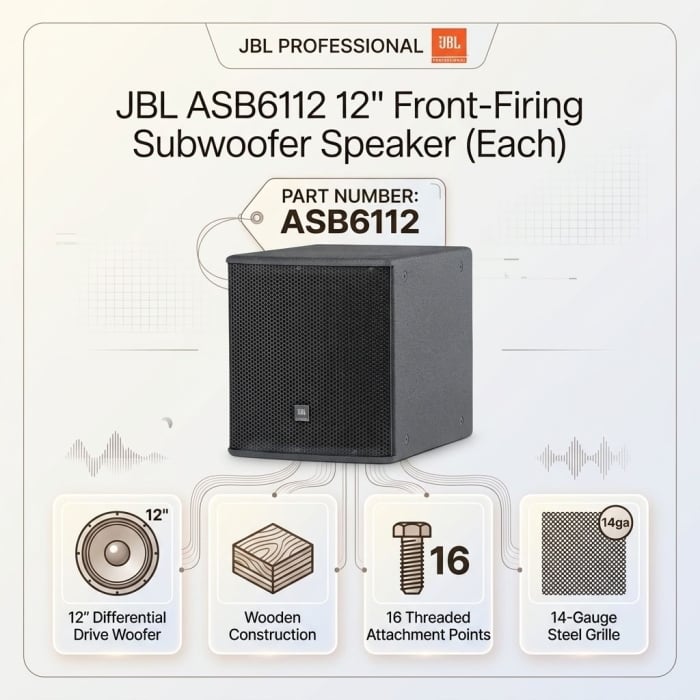

Quick Overview
- 12" Differential Drive Woofer
- Wooden Construction
- 16 Threaded Attachment Points
- 14-Gauge Steel Grille
PRODUCT OVERVIEW
Compact High-Power Single 12" Subwoofer

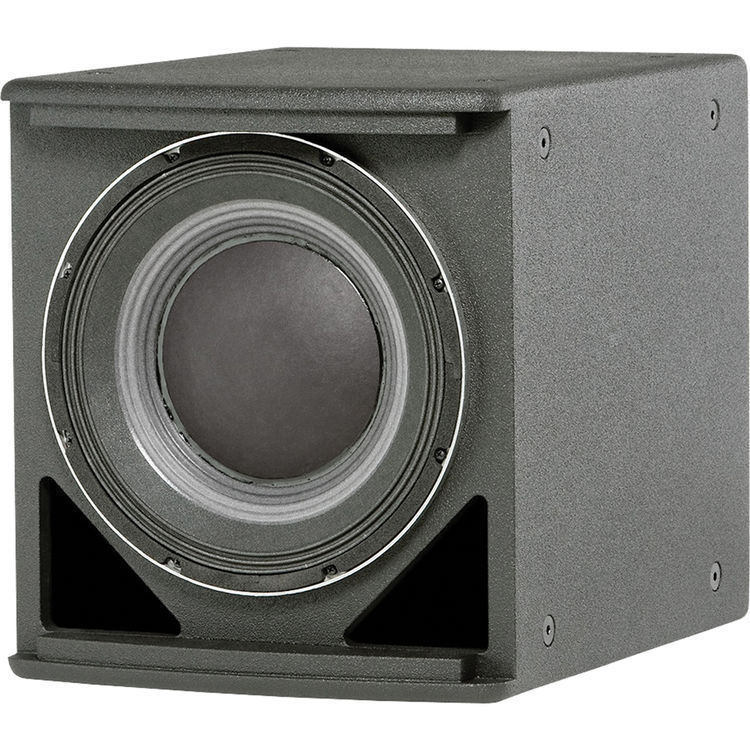

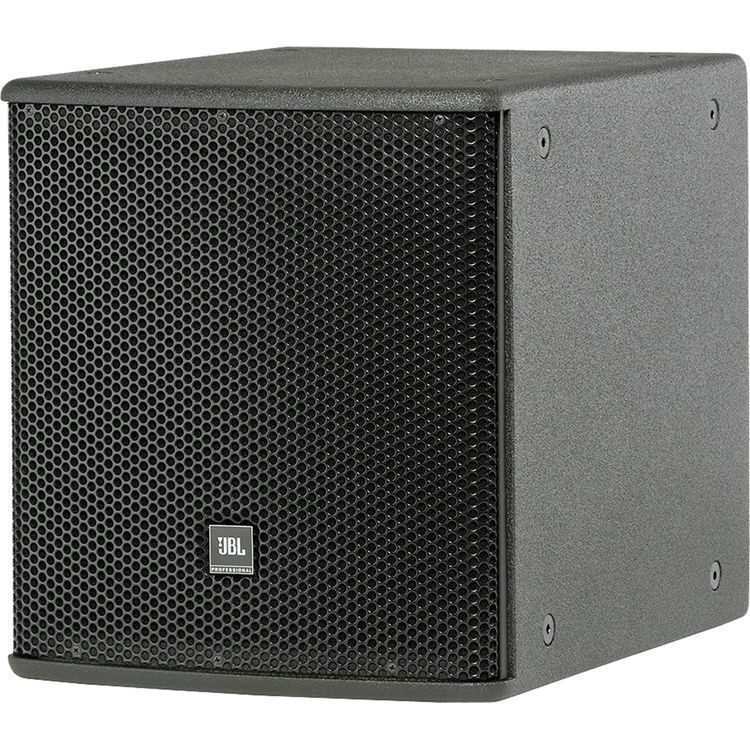

The ASB6112 from JBL is a professional-quality passive subwoofer that provides strong, reliable bass performance for a variety of applications. The wooden cabinet houses a 12" differential drive dual voice coil driver with a large neodymium magnet for a long performance life. The 14-gauge steel grille is lined with acoustically transparent foam to protect the driver. The subwoofer has a 1000W (4000W Peak) power rating and has a large vent area to provide high output with low distortion. The enclosure has 16 threaded M10 attachment points to provide versatile mounting options.
This woofer features a neodymium magnet and ultra-robust cone for extra-long life.
|
|
|
Features
- 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Product Name | JBL ASB6112 12" Front-Firing Subwoofer Speaker (Each) |
|---|---|
| Weight | 16.300000 |
| Frequency Response | 43 Hz – 1 kHz |
| Frequency Range | 35 Hz – 1 kHz |
| Power Capacity | 700 W (2800 W peak), 100 hrs. |
| Maximum SPL | 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Dimensions | 406 x 369 x 483 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
