JBL ASB6118 18" 1200W Suspension Ready P.A. Subwoofer Speaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 18" 2242H SVG driver with 4" voice coil with a Super Vented Gap cooling design for drivers
- Large vent area for high output with low distortion
- Arrays with various AE Series mid-high frequency 2-way modules
- 1200-watt program, 4800-watt peak power handling capacity
- Parallel Speakon and barrier strip connectors with loop-through feature
- Deep cabinet for extended low-frequency bandwidth, minimum frontal profile
PRODUCT OVERVIEW

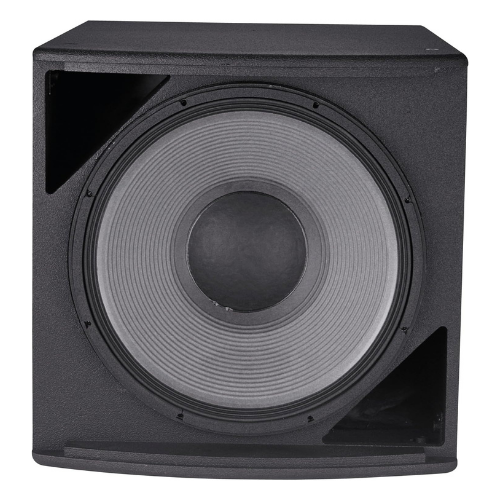

High-Power Subwoofer: 1 x 18" 2242H SVG™ Driver

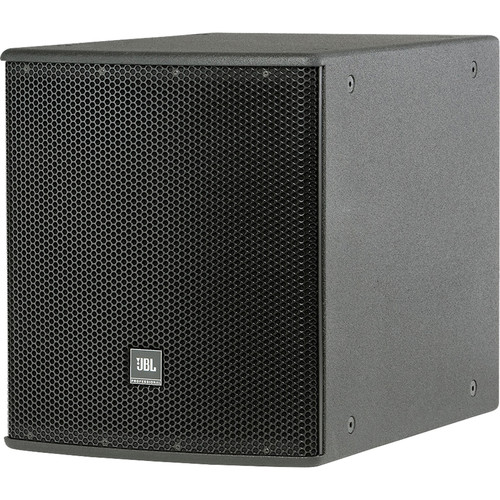

The black JBL ASB-6118 1200-watt high-power subwoofer is loaded with an 18" SVG low-frequency driver in a front-loaded, vented cabinet configuration. The extended depth of the rectangular cabinet allows for increased low-frequency bandwidth while maintaining a minimal frontal profile. The ASB-6118 enclosure is fitted with M10 threaded suspension points and suits a variety of P.A. applications, including theaters, auditoriums, performing arts centers, dance clubs, and other array installations.
|
|
|
Features
- Large vent area for high output.
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs/discotheques, sports facilities, and themed entertainment venues.
| Product Name | JBL ASB6118 18" 1200W Suspension Ready P.A. Subwoofer Speaker (Each) |
|---|---|
| Weight | 44.500000 |
| Frequency Response | 35 Hz – 1 kHz |
| Frequency Range | 28 Hz – 1 kHz |
| Power Capacity | 675 W (2700 W peak), 100 hrs |
| Maximum SPL | 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak) 100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 98 dB100 |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 548 x 561 x 816 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
