PRODUCT OVERVIEW

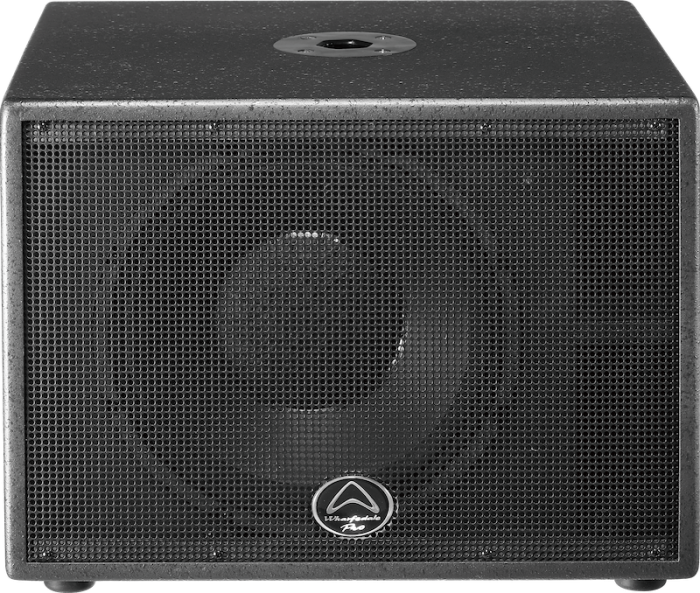

Titan Sub A12

The Wharfedale Pro Titan Sub-A12, is a powerful active subwoofer system for small to medium active PA speaker setups. It utilises a 12” active reflex subwoofer to generate 250W RMS (500W peak) power, with a frequency response of 55-200Hz. It’s a perfect match teamed up with the Wharfedale Titan 8A MKII for an incredibly portable sound reinforcement system.

Class D Amplification Technology

Our engineers have used class D technology on the Sub A12 to make an efficient and lightweight subwoofer making for easy transportation and set up ideal for mobile DJs, bands and other musicians on the road. Qubit™ is our new powerful and precise 24-bit 192kHz DSP processing. With advanced adaptive multi-band dynamic processing and filtering Qubit helps fine tune your system to sound natural and open. Qubit processing optimises the loudspeaker to provide smooth digital crossover points that are perfectly aligned in terms of phase response and time-domain.

ACG Technology

A custom designed, pressed frame 12" woofer, with a 2.5" voice coil, is utilized as the heart of the Titan™ Sub-A12's complementary low frequency enhancement system. Integral signal processing includes a dynamic AGC (Automatic Gain Control) circuit, a stereo crossover and signal limiting for the prevention of a distorted signal to the internal amplifier. A convenient and an essential PHASE switch is included to allow for proper subwoofer signal polarity to be selected.

Built-in Crossover

To integrate with your satellite speakers and to minimise the amount of equipment needed to take for more portable applications the Titan SubA12 has a built-in crossover. This is adjustable from 80Hz to 200Hz so you can use the subwoofer for sub bass frequencies only right the way through to low mids.

Key Features

• 12” active reflex subwoofer
• Low-frequency power amplifier (class d) 250w rms, 500w peak
• Preset integral peak limiter prevents signal distortion and amplifier clipping
• Integral phase switch with 0° and 180° selections
• Thermal, dc fault and short circuit protection
• XLR / 1⁄4 ” combo jack inputs
• Balanced line level output
• Preset limiter prevents signal clipping
• Integral pole mount adapter
• High pass frequency selection:150hz
