JBL ASB6125 Dual 15" Front Firing Subwoofer Speaker (Each)
Quick Overview

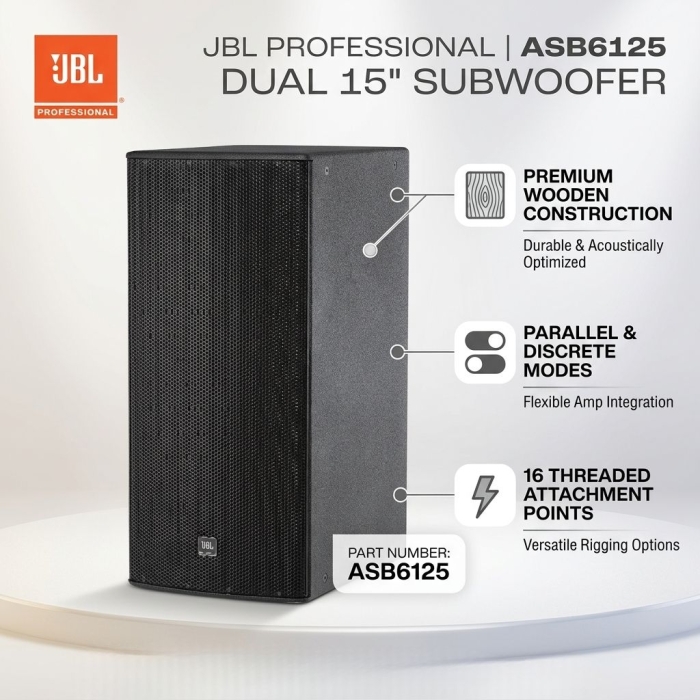

- Dual 15" Differential Drive Woofers
- Wooden Construction
- Parallel and Discrete Modes
- 16 Threaded Attachment Points
- 14-Gauge Steel Grille
PRODUCT OVERVIEW
High-Power Dual 15" Subwoofer

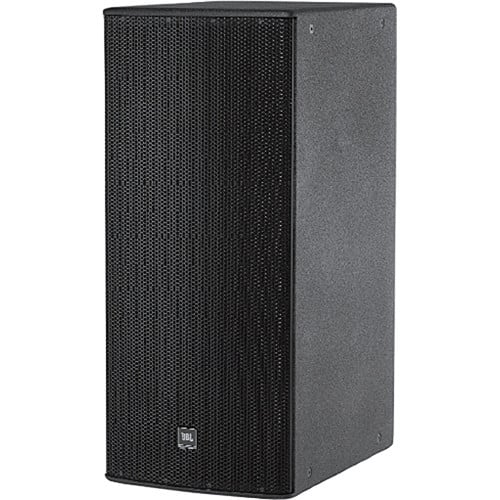

The ASB6125 from JBL is a professional-quality passive subwoofer that provides strong, reliable bass performance for a variety of applications. The wooden cabinet houses a pair of 15" differential drive dual voice coil drivers with large neodymium magnets for a long performance life. The subwoofer can operate in parallel or discrete input modes for excellent versatility. The 14-gauge steel grille is lined with acoustically transparent foam to protect the driver. The subwoofer has a 1600W (6400W Peak) power rating and has a large vent area to provide high output with low distortion. The enclosure has 16 threaded M10 attachment points to provide versatile mounting options.
|
|
|
These woofers feature neodymium magnets and ultra-robust cones for extra-long life.
Features

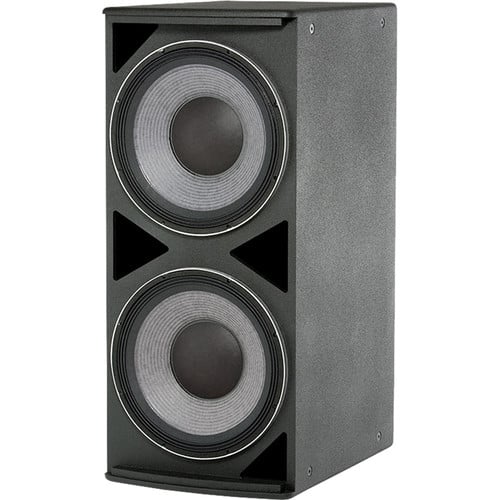

- 2 x 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
- 1600 watts continuous pink noise, 6400 watts peak power handling capacity
- Parallel/Discrete switchable input mode
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
| Product Name | JBL ASB6125 Dual 15" Front Firing Subwoofer Speaker (Each) |
|---|---|
| Weight | 36.700000 |
| Frequency Response | 38 Hz - 1 kHz |
| Frequency Range | 32 Hz - 1 kHz |
| Power Capacity | 1350 W (5400 W peak), 100 hrs |
| Maximum SPL | 35 Hz - 400 Hz: 132 dB-SPL cont av (138 dB peak) |
| Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
| Sensitivity (SPL / 1 W @ 1 m) | 35 Hz - 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Dimensions | 965 x 419 x 597 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
