JBL ASB6128 High-Power Dual 18" 2400W Subwoofer Speaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 2 x 18" 2242H Super Vented Gap (SVG) Driver
- Large vent area for high output with low distortion
- Parallel/Discrete switchable input mode
- Can be used in arrays with various AE series models
PRODUCT OVERVIEW
High-Power Subwoofer 2 x 18" 2242H SVG™ Driver

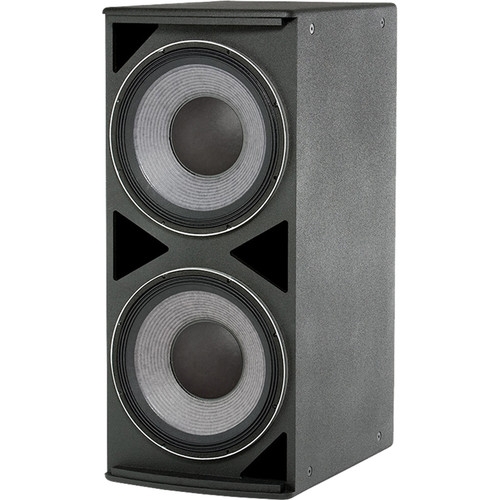

The black ASB6128 High-Power Dual 18" 2400W Subwoofer from JBL is a high-power subwoofer system comprised of two 18" Super Vented Gap (SVG) low-frequency drivers in a front-loaded, vented configuration. The deep cabinet allows for extended low-frequency bandwidth with a minimum frontal profile. The rectangular cabinet is fitted with M10 threaded suspension points.
|
|
|
The ASB6128 Subwoofer is suitable for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs, discotheques, sports facilities, and themed entertainment venues.
Features
- Large vent area for high output.
- Parallel/discrete and switchable.
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs/discotheques, sports facilities, and themed entertainment venues.
| Product Name | JBL ASB6128 High-Power Dual 18" 2400W Subwoofer Speaker (Each) |
|---|---|
| Weight | 73.000000 |
| Frequency Response | 35 Hz – 1 kHz |
| Frequency Range | 28 Hz – 1 kHz |
| Power Capacity | 1600 W (6400 W peak), 100 hrs |
| Maximum SPL | 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak) 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak) |
| Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
| Sensitivity (SPL / 1 W @ 1 m) | 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 1094 x 561 x 816 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
