JBL ASB7128 Dual 18" Front Firing Subwoofer Speaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept

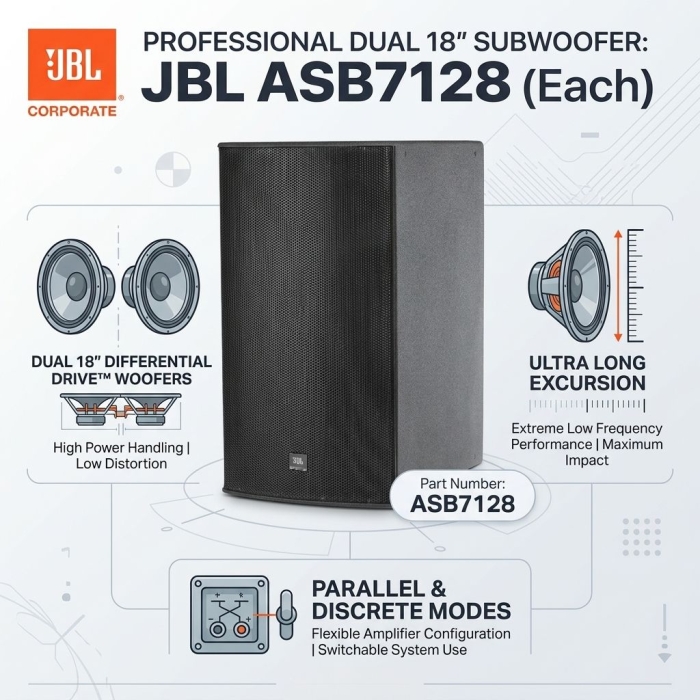

Quick Overview
- Dual 18" Differential Drive Woofers
- Ultra Long Excursion
- Parallel and Discrete Modes
- Wooden Construction
- 16 Threaded Attachment Points
- 14-Gauge Steel Grille
PRODUCT OVERVIEW
Ultra Long Excursion High Power Dual 18" Subwoofer

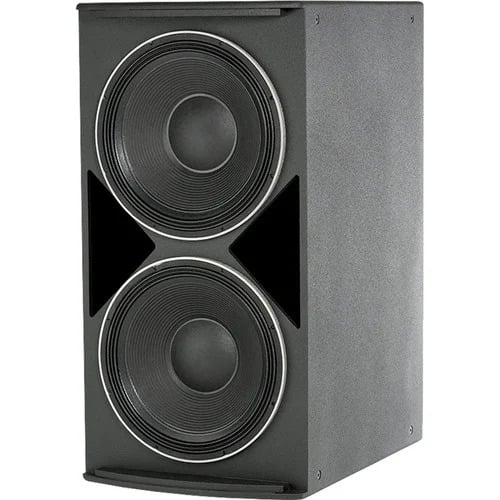

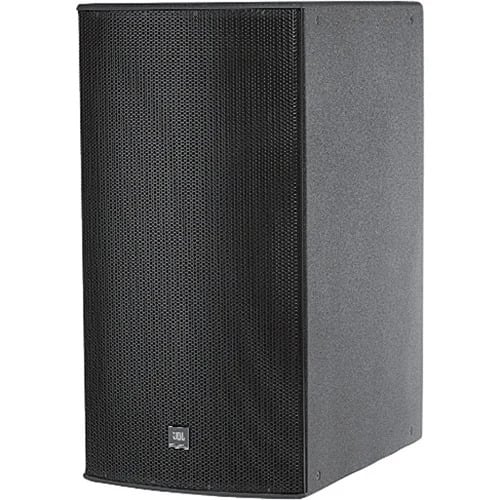

The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers.
This woofer features a neodymium magnet, dual voice coils, and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra-robust composite cone for high excursion and extra long life. The woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
|
|
|
Features
- 2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
- 4000 watts continuous pink noise,
16000 watts peak power handling capacity - Ultra Long Excursion
- Large vent area for high output with low distortion
- Parallel/Discrete switchable input mode
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
| Product Name | JBL ASB7128 Dual 18" Front Firing Subwoofer Speaker (Each) |
|---|---|
| Weight | 71.900000 |
| Frequency Response | 40 Hz – 1 kHz |
| Frequency Range | 30 Hz – 1 kHz |
| Power Capacity | 600 W (2400 W peak), 100 hrs |
| Maximum SPL | 30 Hz – 100 Hz: 133 dB-SPL cont avg (139 dB peak) 100 Hz – 500 Hz: 133 dB-SPL cont avg (139 dB peak) |
| Impedance | 8 Ohms4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
| Sensitivity (SPL / 1 W @ 1 m) | 25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 1094 x 561 x 816 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
