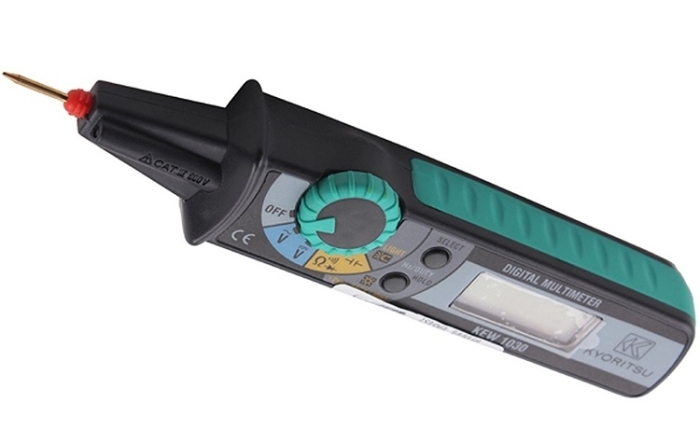

Kyoritsu Model 1030 Digital Multimeter
Your Exclusive Offer Awaits! Call +971-4-3360300 or Email Today!
Kyoritsu Model 1030 Digital Multimeter- With Case.
Kyoritsu 1030 Digital Multimeter
• Compact in Size, Light in Weight and Simple in Use.
• Double moulding provides comfortable and good feeling in hand.
• Penlight illuminates brightly the point to be measured, even in dark place.
• Backlight LCD is highly visible, even in darkness.
• Unique wrapping mechanism for test lead in the rear side compartment.
• Unique protection mechanism for the test prod for safety.
• All ranges including Ohm range are protected against overload voltage of 600V.
| Product Name | Kyoritsu Model 1030 Digital Multimeter |
|---|---|
| Weight | 0.045359 |
| DC V | 400m/4/40/400/600V (5 Range auto) ±0.8%rdg ±5dgt(400mV - 400V) ±1.0%rdg ±5dgt(600V) |
| AC V | 4/40/400/600V (4 Range auto) ±1.3%rdg ±5dgt (4/40V) (50/60Hz) ±1.6%rdg ±5dgt (400/600V) (50/60Hz) |
| DC A | - |
| AC A | - |
| Ω | 400/4k/40k/400k/4M/40MΩ (6 Range auto) ±1.0%rdg ±5dgt (400Ω - 4MΩ) ±2.5%rdg ±5dgt (40MΩ) |
| Capacitance | 50n/500n/5µ/50µ/100µF (5 Range auto) ±3.5%rdg ±10dgt (50nF) ±3.5%rdg ±5dgt (500n - 50µF) ±4.5%rdg ±5dgt (100µF) |
| Frequency | 5/50/500/5k/50k/200kHz ±0.1%rdg ±5dgt (Measurable input: 1.5Vrms or more) |
| Manufacturer | Kyoritsu |
| Color | Black |
Write Your Own Review
Product Datasheet
