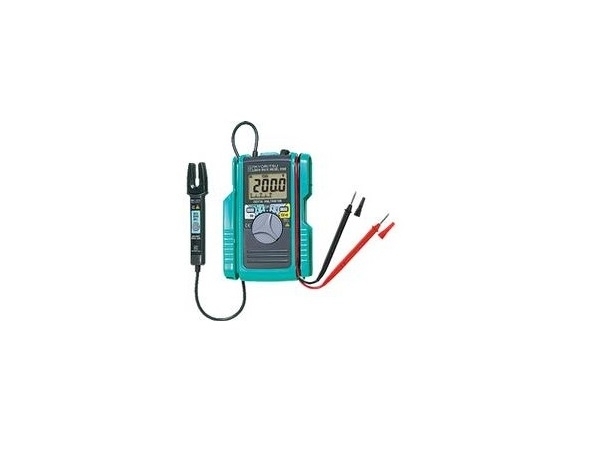

Kyoritsu Model KM2000 600V/60A Digital Multimeter
Kyoritsu Model KM2000 Digital Multimeter.
Features thin jaws, perfect to clamp wires even in tight spaces where a normal clamp meter is too big or wires are too short. Has a maximum resolution of 0.1A AC/DC.
Kyoritsu Kew Mate 2000 Offers
Features
-
Insulated and removable caps prevent shortening of IC legs for proving high density component boards
-
One test probe can be fixed to the meter to help get the job done safer and faster
-
Quick one touch DC zero adjustment
Applications
-
Electrical and electronic troubleshooting in residential, commercial, and industrial installations
-
Sub-distribution boards, consumer units, final circuits, connection boxes, and control panels
-
Output of a solar panel in photovoltaic installations
-
Servicing of cars, electric forklifts, small electric cars, or trolleys for cleaning, DC motor adjustable speed controllers, golf cars and trolleys, small electric cars and chairlifts for the disabled, work platforms, UPS's, electric scooters and bikes, etc.
| Product Name | Kyoritsu Model KM2000 600V/60A Digital Multimeter |
|---|---|
| Weight | 0.13 Kg |
| DC V | 340mV/3.4/34/340/600V (Input Impedance: 10MΩ), ±1.5%rdg±4dgt |
| AC V | 3.4/34/340/600V (Input Impedance: 10MΩ), ±1.5%rdg±5dgt (50 to 400Hz) |
| DC A | 600A, ±2%rdg±5dgt |
| AC A | 60A, ±2%rdg±5dgt (50/60Hz) |
| Ω | 340Ω/3.4/34/340kΩ/3.4/34MΩ |
| Capacitance | 400.0nF/4.000/40.00µF |
| Frequency | 3.4/10kHz ±0.1%rdg±1dgt, 3.4/34/300kHz ±0.1%rdg±1dgt |
| Manufacturer | Kyoritsu |
| Color | Green |
