Panasonic AK-HC3900GSJ HD/4K Upgradeable Multi-Format Studio Camera System for Live Cinematic Video
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Quick Overview
- Full HD (1080p) studio camera with HDR support
- 4K CMOS sensor with high-quality HD downconversion
- Upgrade path to 4K (future-ready design)
- High sensitivity (F10) with low noise (~62 dB SNR)
- Advanced image processing: CAC, DRS, skew reduction, digital extender
- HDR + wide color support (BT.709 / BT.2020 in 4K mode)
Product Overview
Panasonic AK-HC3900GSJ Studio Camera System
A high-performance HD/4K upgradeable multi-format studio camera system engineered for broadcast production, live events, education, and professional studio environments.
Built for Modern Broadcast Excellence
The AK-HC3900GSJ delivers professional-grade imaging performance with a large high-sensitivity CMOS sensor, designed to produce exceptional clarity, low noise, and stable color reproduction across demanding production environments.
With scalable 4K upgrade options, IP connectivity, and fiber-based transmission support, this system ensures future-ready flexibility for evolving broadcast infrastructures.
Why Professionals Choose AK-HC3900GSJ
A flexible, scalable, and high-performance camera system designed to meet both current HD demands and future 4K/IP workflows.
System Architecture & Design Details
Engineered for precision, scalability, and seamless integration into modern broadcast ecosystems.
Advanced Production Capabilities
A future-ready system designed to support evolving broadcast standards and high-performance production environments.
- HDR and SDR simultaneous output
- High dynamic range imaging control
- IP (SMPTE ST 2110) compatibility via upgrade
- Digital Extender (2x) functionality
- Chromatic Aberration Compensation (CAC)
Technical Specifications
Imaging System
Large 4K CMOS sensor
High sensitivity performance
Low-noise output
Output Formats
HD 1080/59.94p
HD 720/59.94p
HDR / SDR simultaneous output
Connectivity
Fiber transmission support
IP workflow integration
Optional ST 2110 upgrade
Scalability
4K upgrade kit support
Modular CCU/ROP system
Flexible production expansion
Elevate Your Broadcast Production
The AK-HC3900GSJ delivers a powerful combination of flexibility, scalability, and broadcast-grade imaging performance for professional production environments.
Request a Quote| Product Name | Panasonic AK-HC3900GSJ HD/4K Upgradeable Multi-Format Studio Camera System for Live Cinematic Video |
|---|---|
| Weight | 4.000000 |
| Lens Mount | 2/3-type bayonet |
| Image Sensor | MOS image sensor |
| Effective Sensor Resolution | 11.14 Megapixels |
| Max Recording Modes | 1920 × 1080/59.94p/50p/29.97p/25p/23.98p | Optional 4K upgrade: 3840 × 2160/59.94p/50p/29.97p/25p/23.98p |
| Max Video Output | 3840 × 2160 / 59.94p (4K UHD, with upgrade kit installed) |
| Media/Memory Card Slot | Yes |
| Built-In ND Filter | Clear / 1/4 / 1/16 / 1/64 (built-in mechanical ND filter wheel, 2 / 4 / 6 stops) |
| Built-In CC Filter | Clear / 3200K / 4300K / 5600K / 6300K (built-in color correction filter wheel) |
| Shutter Type | Electronic rolling shutter |
| Shutter Speed | 1/48 to 1/2000 |
| Internal Recording | No |

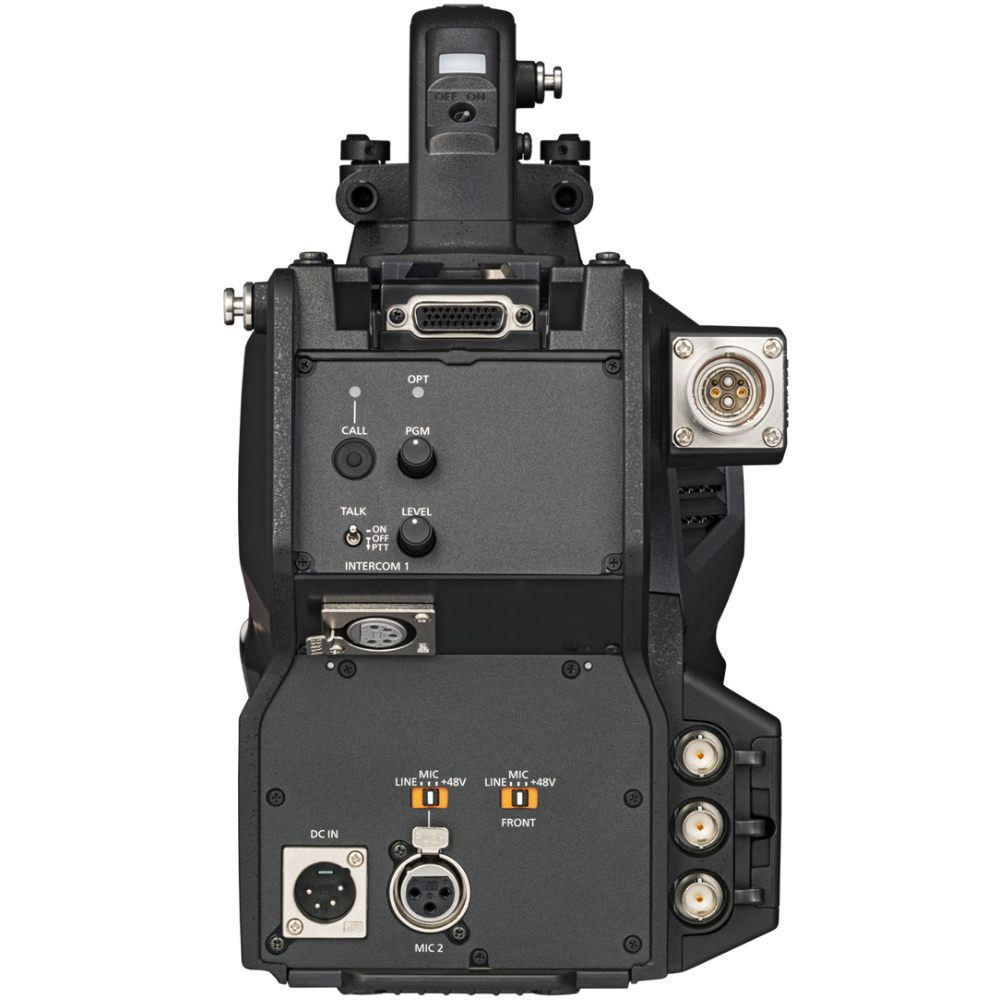

| Video Output | Optical composite connector x 1 12-pin x 1 20-pin x 1 29-pin x 1 XLR x 1, 4-pin, DC 12 V RJ-45 x 1 |
| Video I/O | < HD-SDI1 > Terminal: BNC x 1 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω < HD-SDI2 > Terminal BNC x 1 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω < AUX > Terminal BNC x 1 Functions as terminal/ terminal by switching the setting in the menu : 3G/1.5G-SDI: 0.8 V [p-p], 75 Ω : VBS signal 1 V [p-p], 75 Ω |
| Audio I/O | XLR x 1, 3-pin (female) // switchable : 0 dBu : −60 dBu, −40 dBu, or −20 dBu menu can be selected |Terminal (front): XLR x 1, 3-pin (female) // switchable : 0 dBu : −60 dBu, −40 dBu, or −20 dBu menu can be selected |
| Storage Conditions | −20 °C to 60 °C (−4 °F to 140 °F) |
| Dimensions | Body only 151 mm x 267 mm x 369 mm (5-31/32 inches x 10-17/32 inches x 14-17/32 inches) (excluding protrusions) |
| Manufacturer | Panasonic |
| Color | Black |
Product Datasheet
