Panasonic AK-UC3300GSJ 4K HDR with 2x HD Slow Motion Studio Camera for Live Cinematic Video
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Quick Overview
- 11.14MP Super35 CMOS Image Sensor
- Broadcast-Style B4 Lens Mount
- Up to UHD 4K59.94 3G-SDI Out
- LEMO SMPTE Hybrid Fiber Connector
- Simultaneous HD and UHD 4K Output
- Optical ND Filter Wheel
PRODUCT OVERVIEW
AK-UC3300GSJ 4K HDR Studio Camera
A next-generation professional broadcast camera engineered for live production, LED walls, sports broadcasting, and IP-based workflows with exceptional 4K HDR clarity and flexible system integration.
Broadcast Performance for Modern Production Environments
The AK-UC3300GSJ is built on Panasonic’s advanced studio camera platform, delivering uncompromising 4K HDR performance with high dynamic range, superior low-light sensitivity, and broadcast-grade color reproduction.
Designed for professional live production workflows, it supports baseband and IP environments simultaneously, making it ideal for hybrid studios, sports broadcasting, and large-scale event production.
Engineered for Professional Broadcast Workflows
Every component is optimized for reliability, precision imaging, and seamless integration into modern production systems.
Professional Engineering Highlights
- 12G-SDI output with high-bandwidth performance
- SMPTE ST 2110 IP redundancy support
- Dual SFP+ / SFP28 slots for network resilience
- Integrated ND filter wheel (CLEAR to 1/64)
- Optional optical low-pass filter for LED environments
- Future-ready PDAF autofocus support
- Genlock input and reference output
- Tally and remote control integration
Technical Specifications
Imaging System
19MP MOS Sensor
UHD 4K Output
2000 TV-Line Resolution
Video Output
12G-SDI
Fiber Optic
IP Streaming Support
Networking
SMPTE ST 2110
NDI High Bandwidth
SRT Protocol
Control Systems
Remote Camera Control
ROP Compatibility
Master Setup Integration
Elevate Your Broadcast Production
The AK-UC3300GSJ delivers precision imaging, advanced IP connectivity, and unmatched workflow flexibility for modern broadcast environments.
Request a Quote| Product Name | Panasonic AK-UC3300GSJ 4K HDR with 2x HD Slow Motion Studio Camera for Live Cinematic Video |
|---|---|
| Weight | 5.846806 |
| Lens Mount | 2/3-type bayonet |
| Image Sensor | Super35 |
| Effective Sensor Resolution | 17.14 Megapixel |
| Max Recording Modes | Up to UHD 4K |
| Max Video Output | Up to UHD 4K at 23.98/25/29.97/50/59.94 fps |
| Media/Memory Card Slot | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/48 to 1/2000 |
| Internal Recording | 3840 x 2160 1920 x 1080p |
| Video Output | 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps |

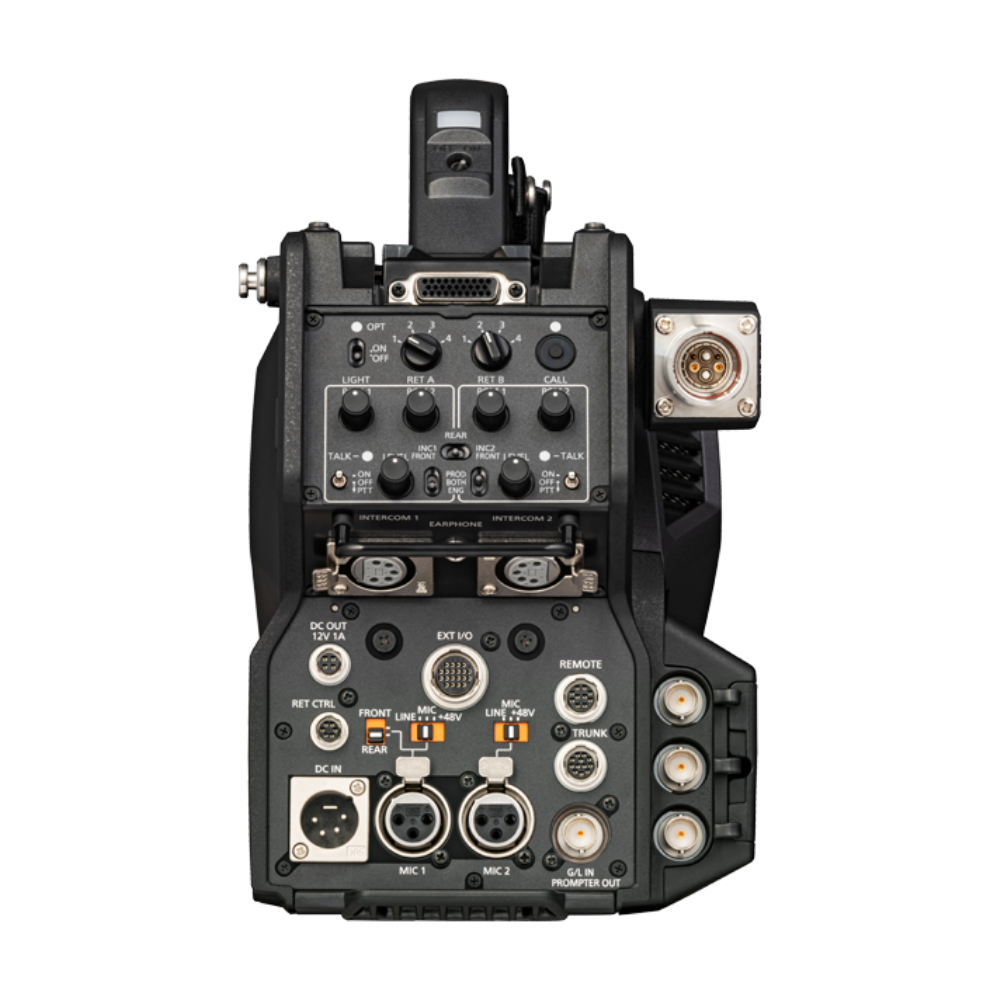

| CCU I/O | 1x Proprietary |
| Video I/O | 2x BNC (3G-SDI) Output |
| Audio I/O | 3x XLR 3-Pin Input |
| Power I/O | 1x XLR 4-Pin (12VDC) Input | 1x Hirose 4-Pin (12VDC at 1 A) Output | 1x Proprietary (12VDC at 2.5 A) Input |
| Other I/O | 1x BNC Aux 1x BNC (Sync) 1x Hirose 12-Pin Control 1x 20-Pin Aux Output 1x 29-Pin Viewfinder Output 1x Hirose 6-Pin 1x Hirose 10-Pin Data 1x RJ45 (LAN) |
| Global Positioning | No |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Tripod Mount | VCT-14 |
| Dimensions | 14.7 x 10.5 x 5.9" / 37.4 x 26.7 x 15.1 cm |
| Manufacturer | Panasonic |
| Color | Black |
Product Datasheet
