Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera for Live Cinematic Video
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Quick Overview
- 19.29MP MOS Image Sensor, B4 Mount
- Up to UHD 4K60 12G-SDI Output
- Independent Operation without CCU
- Redundant Operation with ST 2110
- 2000 TV Lines High-Resolution
- Simultaneous HLG/BT.2020 and SDR /BT.709
AK-UCX100 4K Studio Camera – Product Overview

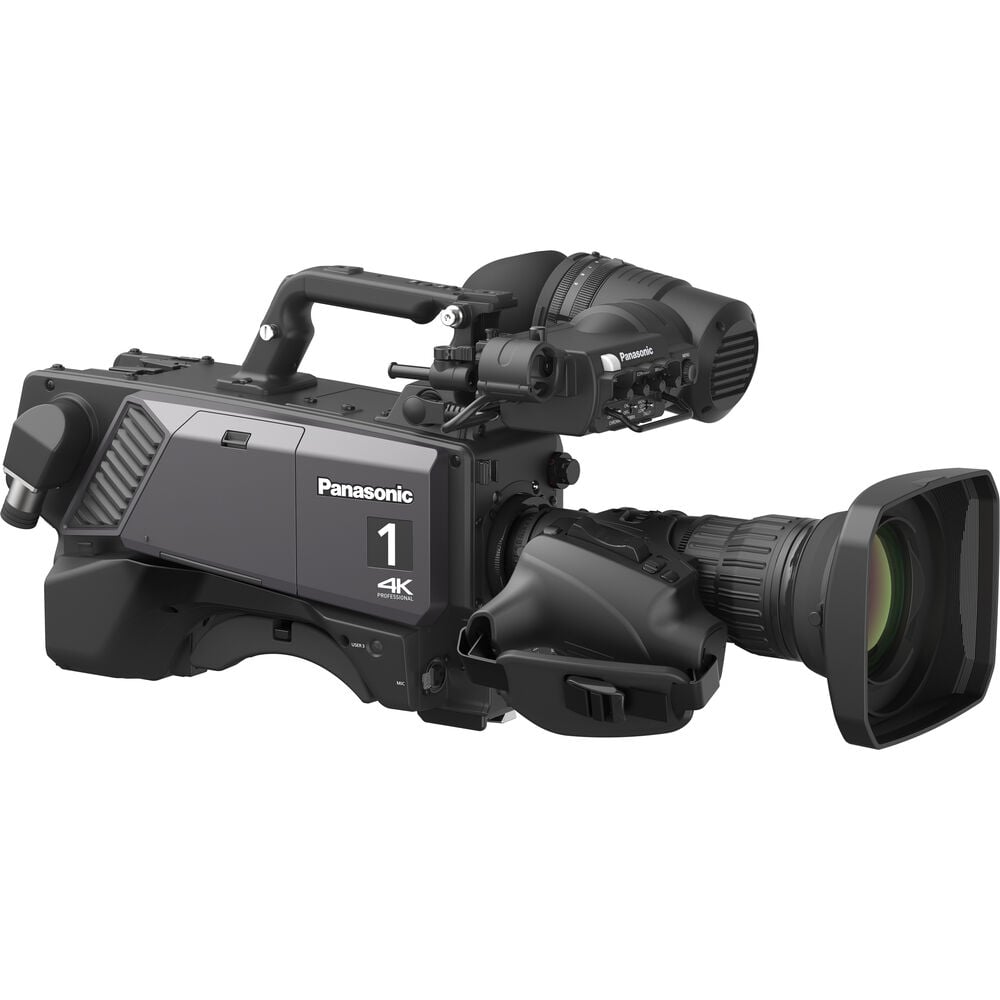

AK-UCX100 4K Studio Camera
A next-generation 4K studio camera engineered for broadcast, live production, sports, and high-end studio environments—delivering uncompromising image quality and IP-native workflow flexibility.
Built for the Future of Broadcast Production
The AK-UCX100 delivers premium-grade imaging performance for modern production environments, combining ultra-high resolution output with advanced HDR rendering and next-generation IP connectivity.
Designed by :contentReference[oaicite:0]{index=0}, this system eliminates traditional CCU dependency while enabling seamless integration across studio, OB, and live event workflows.
Engineered for Professional Production Demands
Every subsystem is optimized for image fidelity, workflow efficiency, and network-native broadcast environments.
IP-Native Broadcast Architecture
Built for modern broadcast infrastructure with enterprise-grade networking, redundancy, and low-latency video transport.
- SMPTE ST 2110 uncompressed video transmission
- JPEG XS low-latency visually lossless workflow
- Dual 12G-SDI hybrid output support
- Network redundancy and VLAN tagging
- Integrated broadcast control compatibility
Technical Specifications
Imaging
4K HDR Output
2,000 TV Lines Resolution
Wide Dynamic Range
Connectivity
SMPTE ST 2110
NDI High Bandwidth
SRT Support
12G-SDI x2
Workflow
CCU-Free Operation
Remote Control Integration
Multi-Camera Sync
Standards
BT.2020 Color Gamut
HLG HDR
Broadcast-Grade Compliance
Production in Action
A closer look at the engineering, design, and real-world deployment of the AK-UCX100 system.
Upgrade Your Broadcast Workflow
The AK-UCX100 delivers uncompromising image quality, IP-native architecture, and production-ready flexibility for the next generation of live and studio broadcasting.
Request a Quote| Product Name | Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera for Live Cinematic Video |
|---|---|
| Weight | 4.550000 |
| Lens Mount | 2/3-type bayonet |
| Image Sensor | Size-Unspecified |
| Effective Sensor Resolution | 19.29 Megapixel |
| Max Recording Modes | Up to UHD 4K |
| Max Video Output | via Optical Fiber / SDI/BNC Up to UHD 4K at 23.98/25/29.97/50/59.94 fps |
| Media/Memory Card Slot | No |

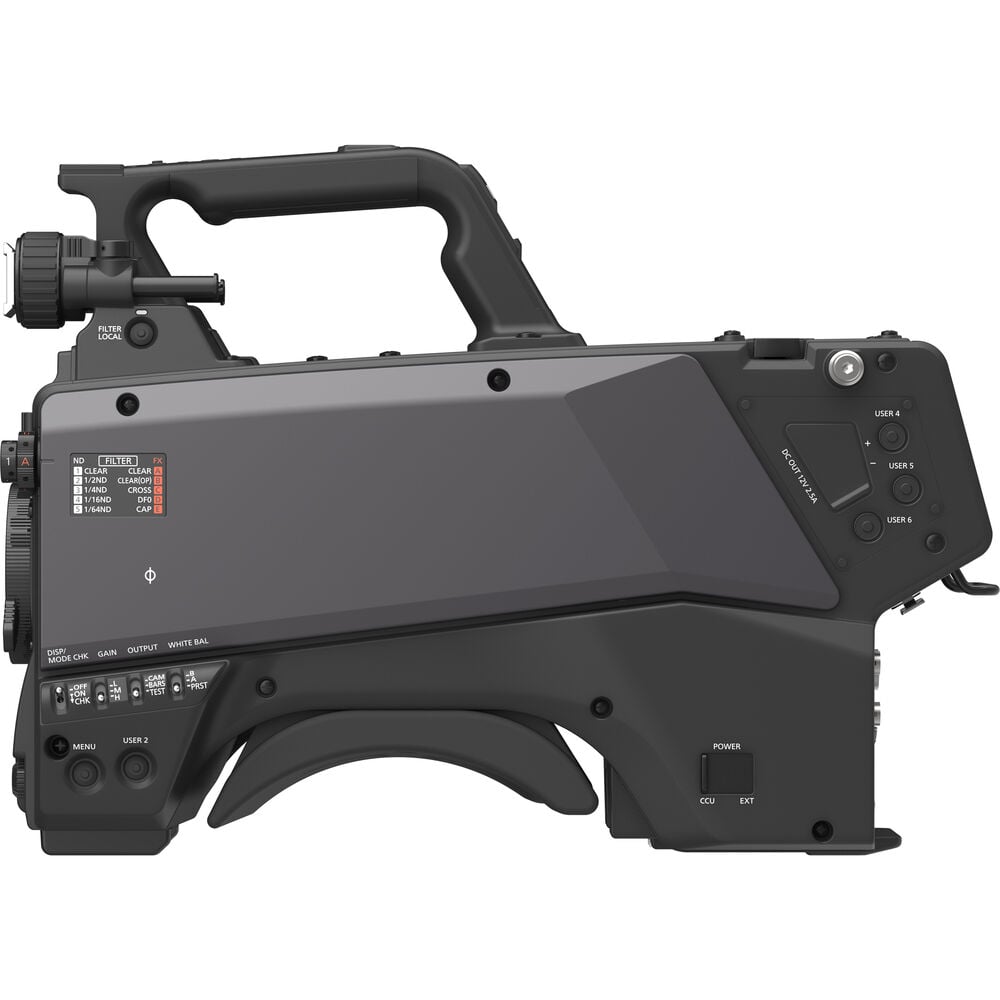

| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/48 to 1/2000 |
| Internal Recording | 3840 x 2160 1920 x 1080p |
| Video Output | via Optical Fiber / SDI/BNC 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps |
| CCU I/O | 1x RJ45 |
| Video I/O | 2x BNC (12G-SDI) Output 1x BNC (3G-SDI) Input |

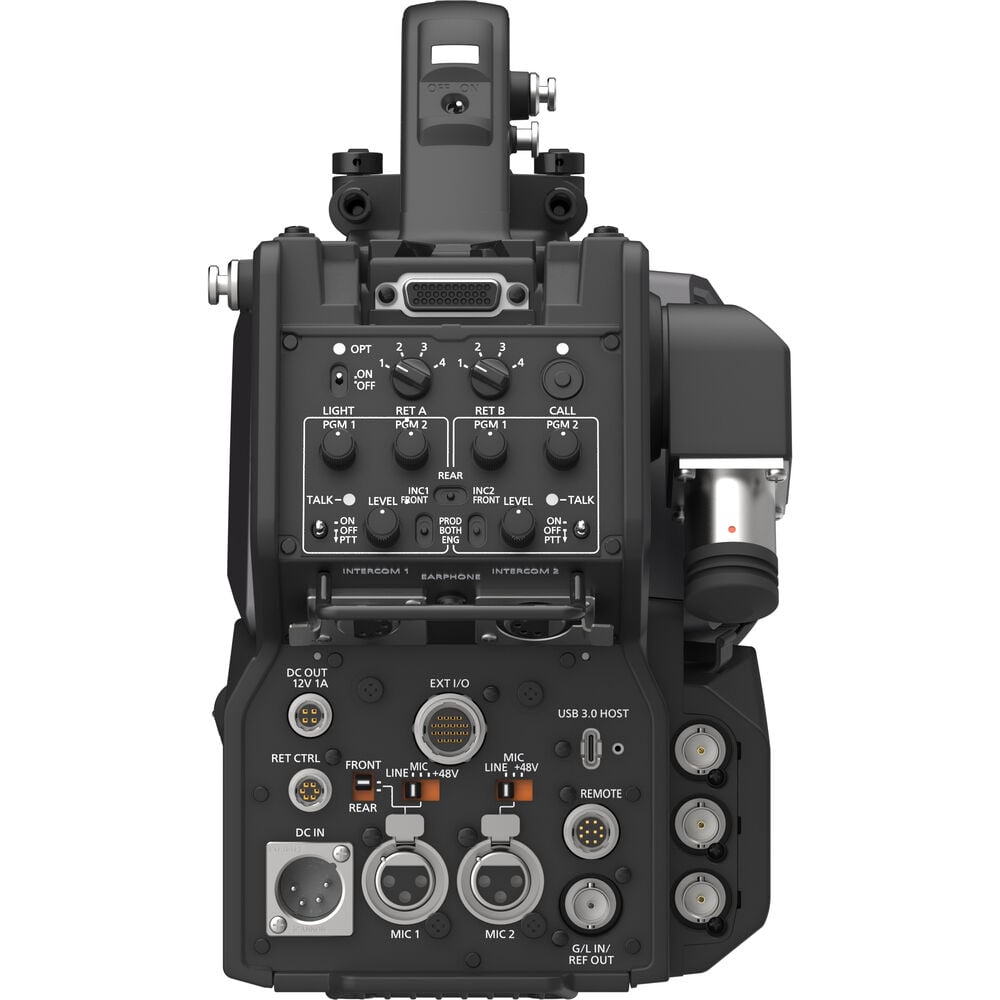

| Audio I/O | 3x XLR 3-Pin Mic/Line Input (+48 V Phantom Power) | 2x XLR 5-Pin Intercom Input/Output | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x XLR 4-Pin (12VDC) Input | 1x LEMO 2-Pin (12VDC at 2.5 A) Output | 1x USB-C Output |
| Other I/O | 1x BNC (Genlock, Reference, Sync) Input/Output 2x SFP Input/Output 1x 20-Pin Viewfinder 1x 29-Pin Viewfinder Output 1x Hirose 6-Pin 1x 20-Pin 1x Hirose 10-Pin Data 1x RJ45 (LAN) |
| Global Positioning | No |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Tripod Mount | 1x 1/4"-20 Female |
| Dimensions | 14.6 x 10.5 x 6.2" / 371.5 x 267 x 157 mm |
| Manufacturer | Panasonic |
| Color | Black |
Product Datasheet
