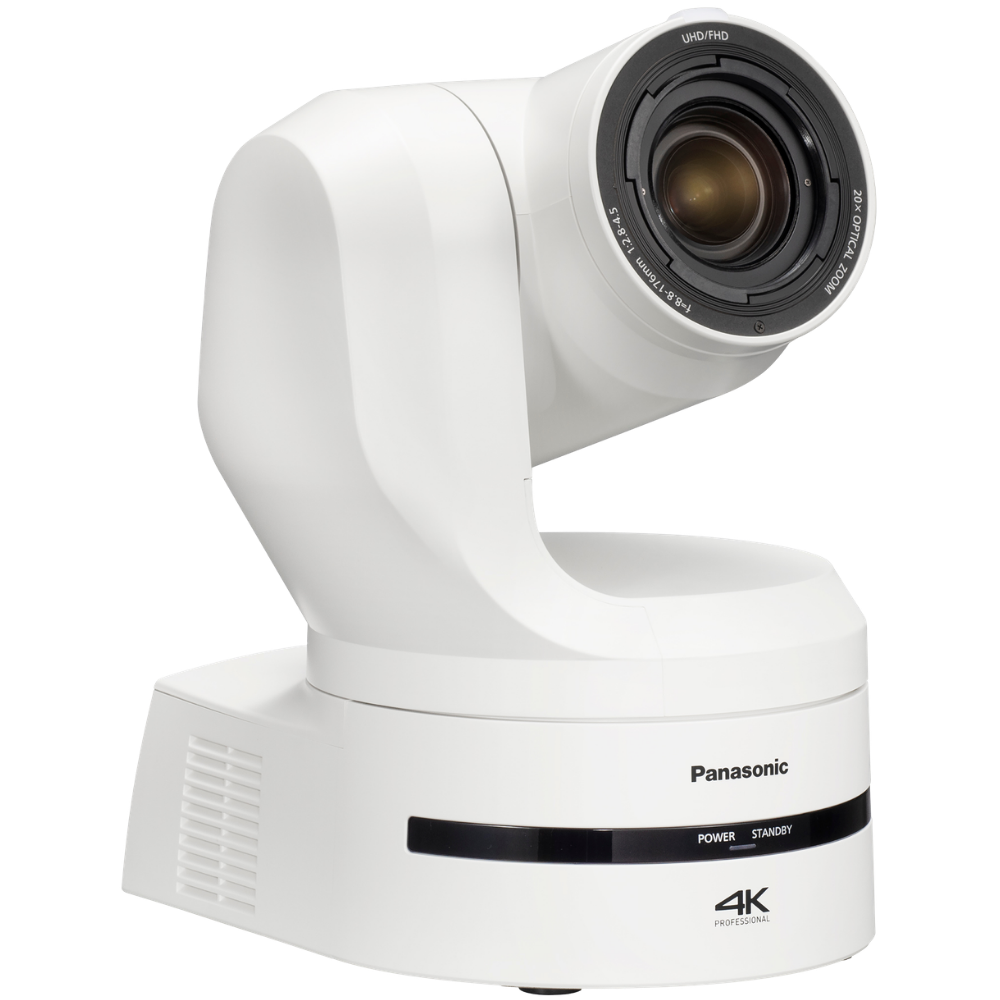

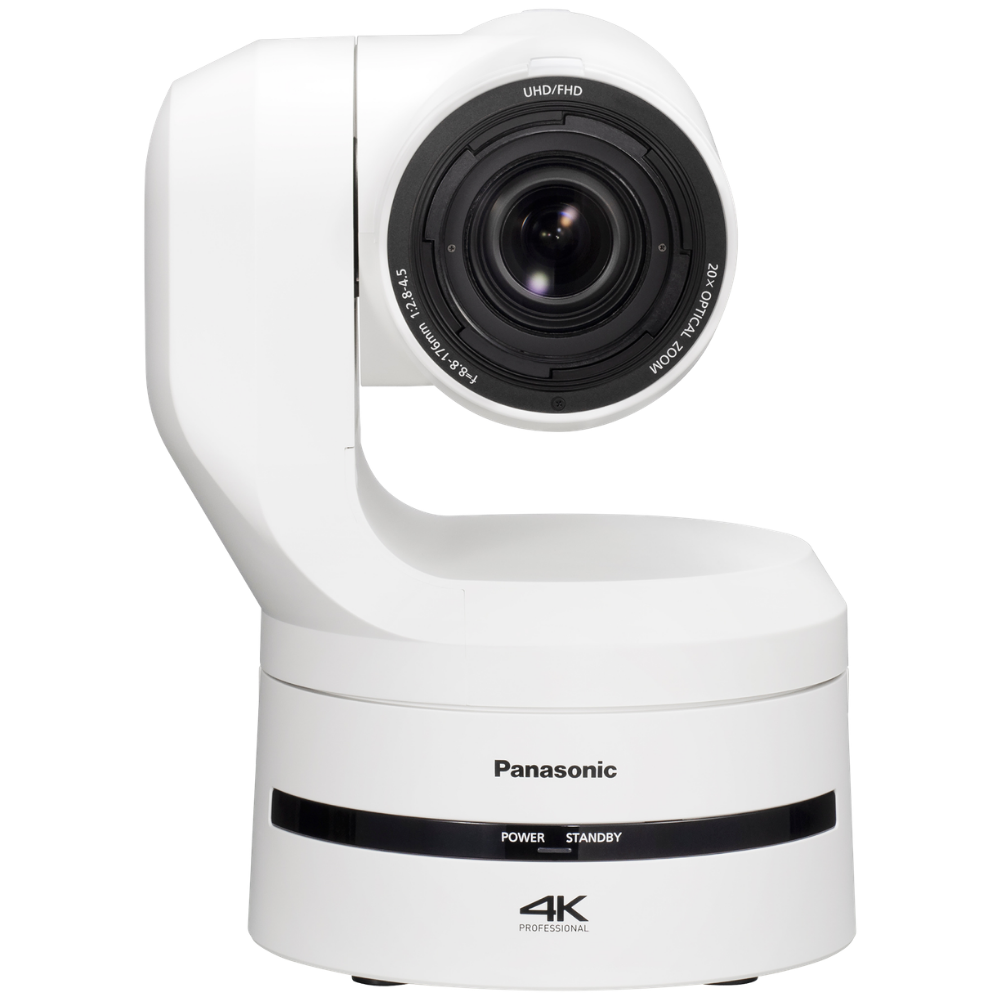

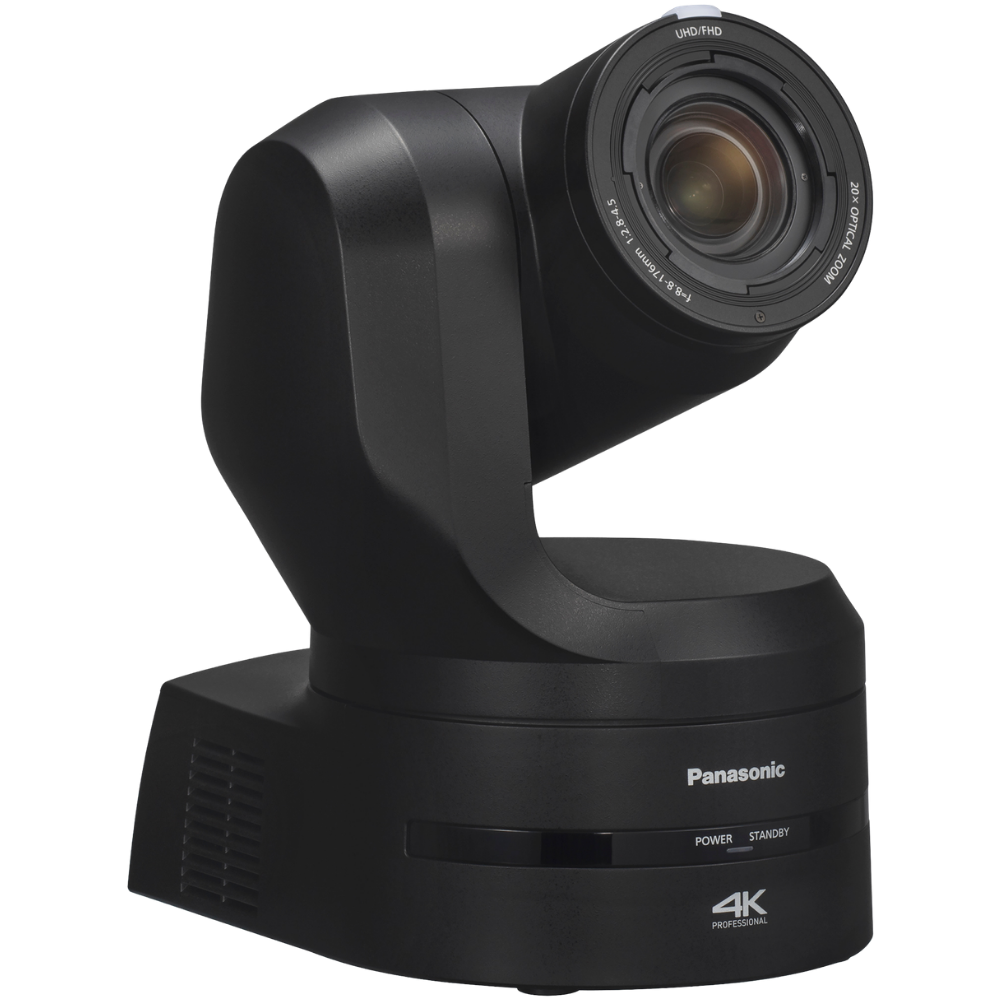

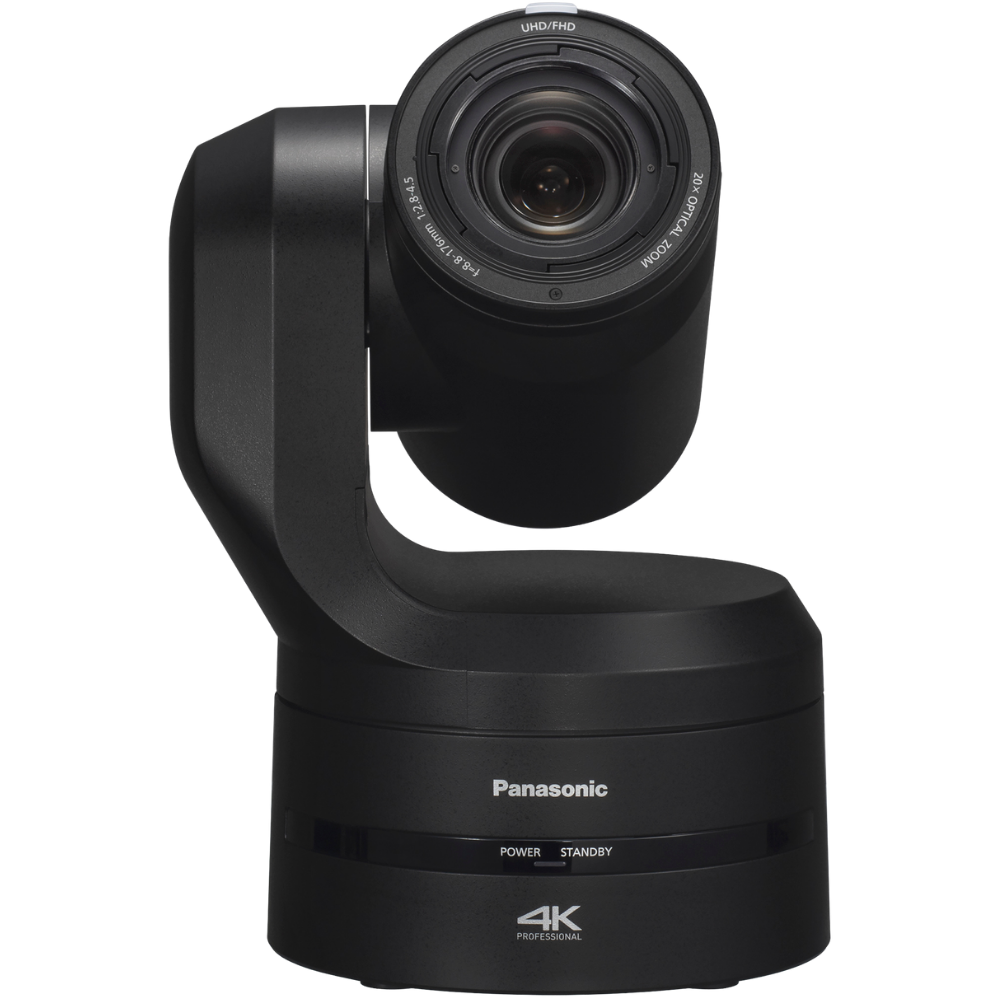

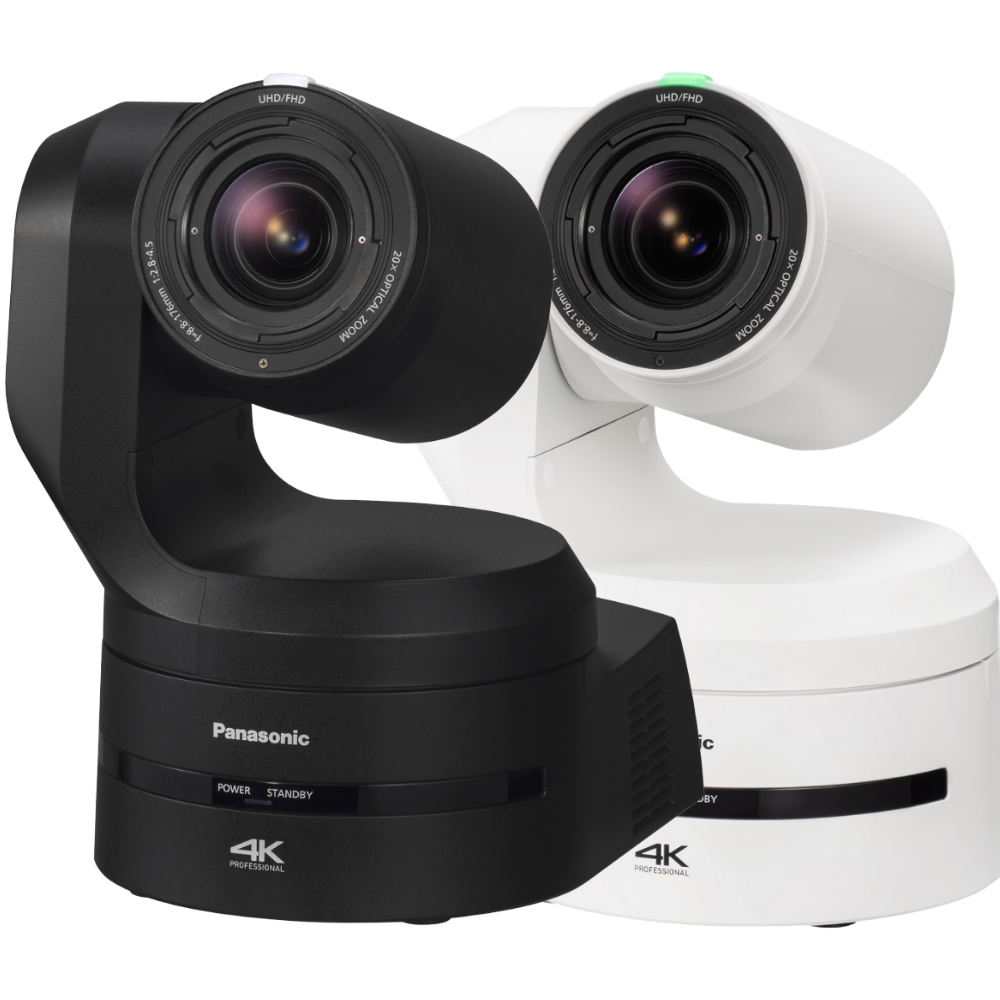

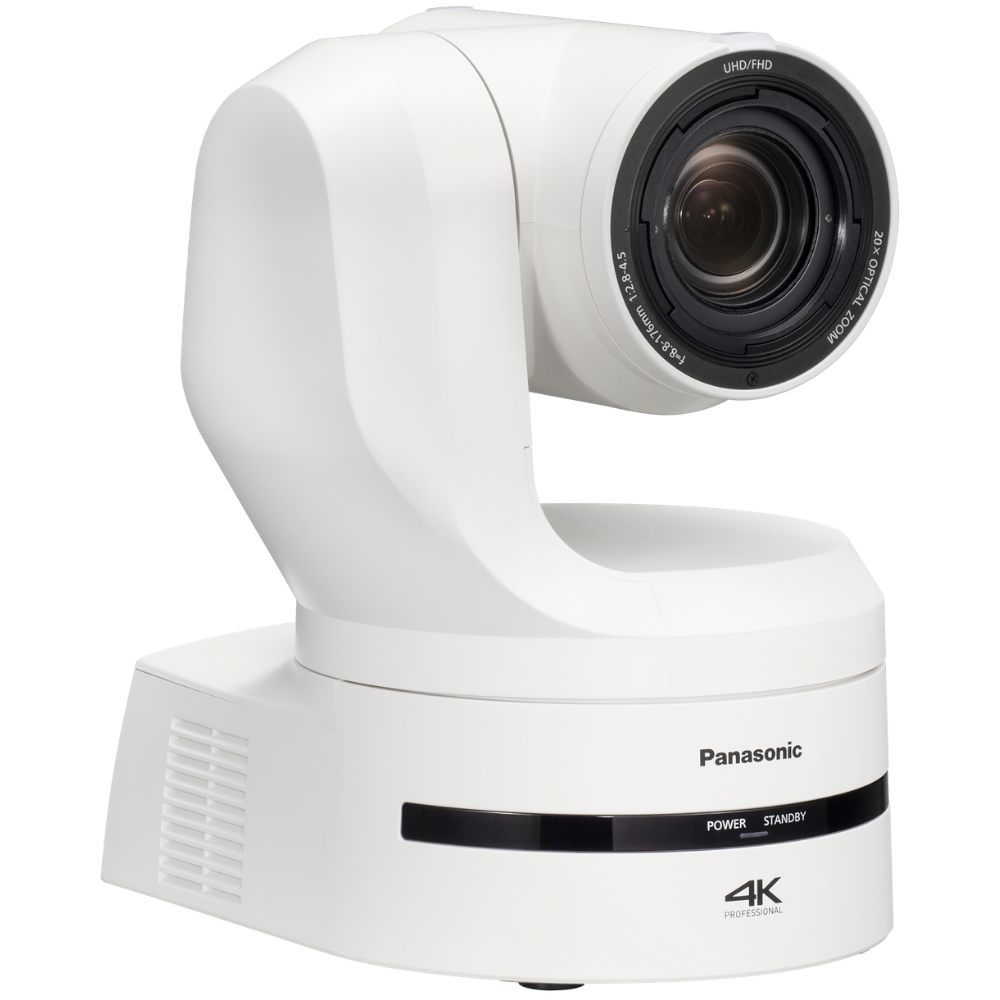

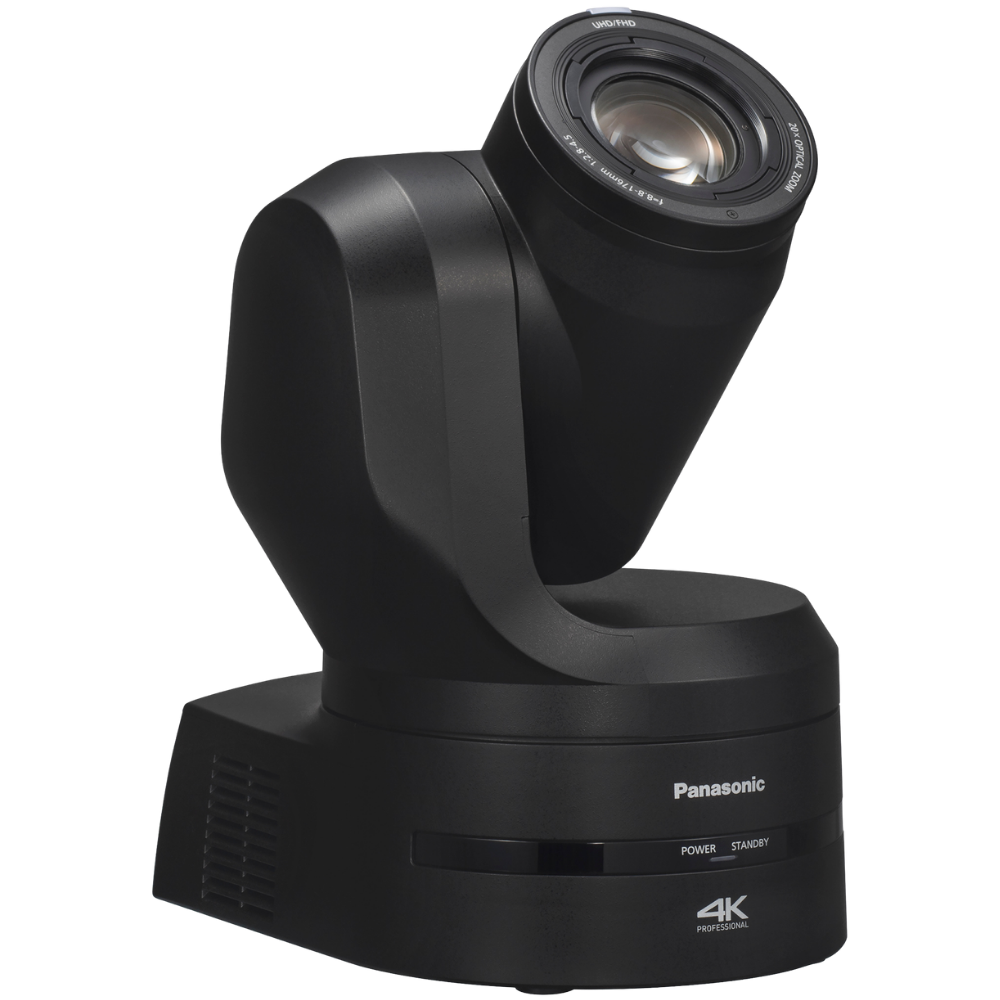

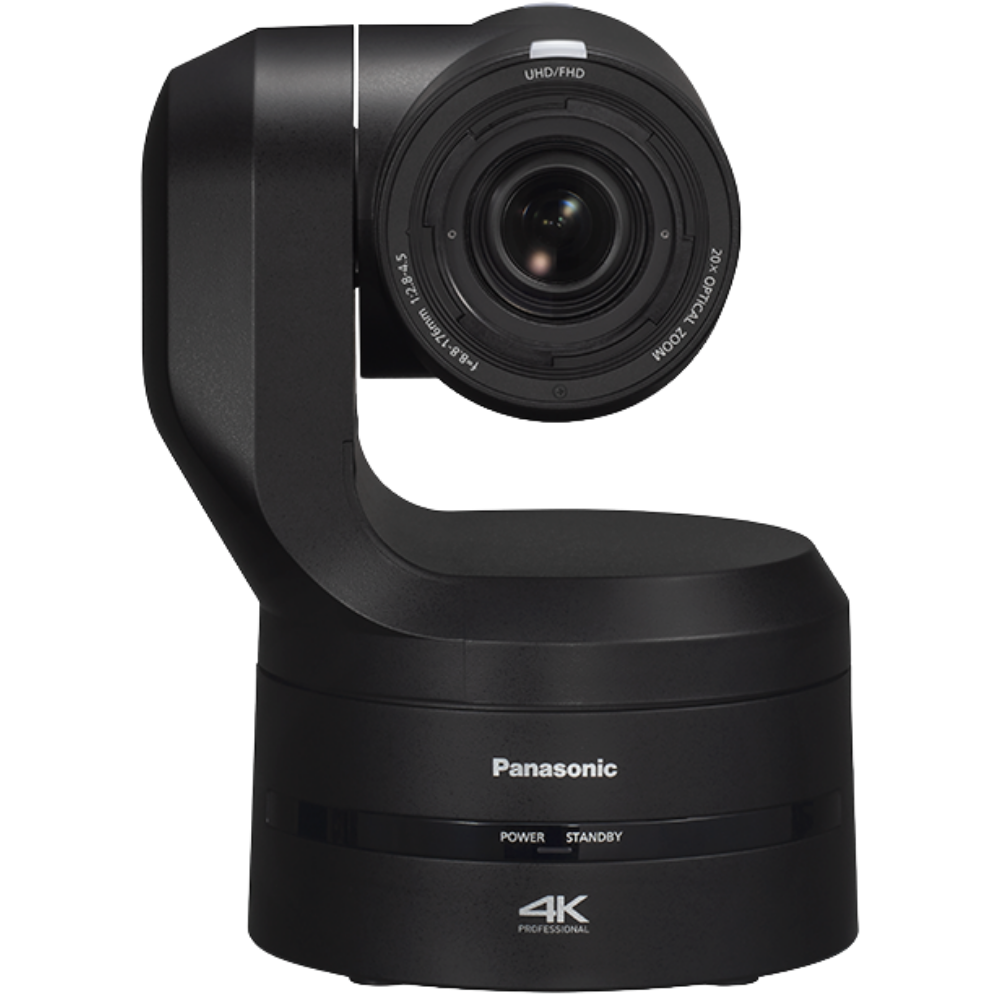

Panasonic AW-UE160 Integrated 4K 20x Optical Zoom with 9.6MP MOS Sensor PTZ Camera
Quick Overview
- 4K 1" Type 9.6MP MOS Sensor
- Up to UHD 4K60 & 1080 Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- Built-In NDI & NDI|HX, ST 2110 Option
- Built-In OLPF, Improved Autofocus
- 20x Optical Zoom, 2x High-Speed Capture
PRODUCT OVERVIEW

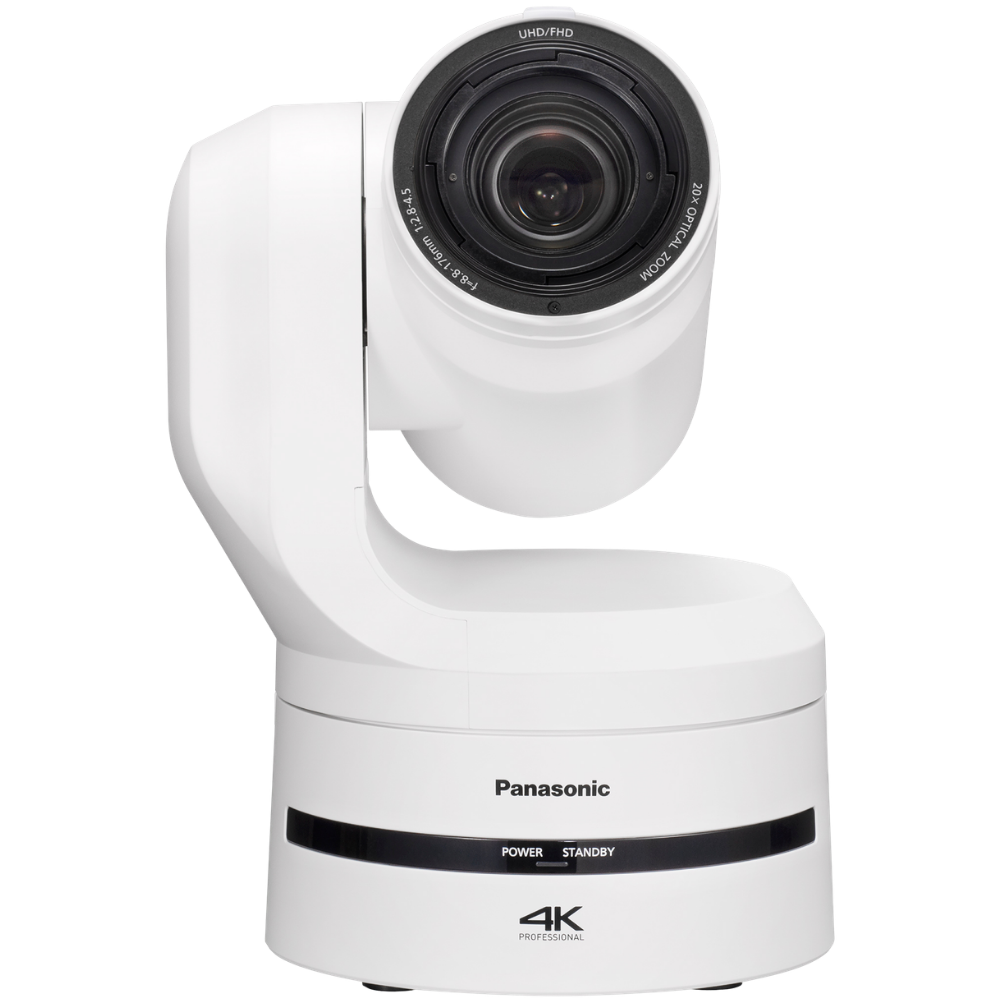

AW-UE160 4K PTZ Camera
A next-generation professional PTZ camera engineered for ultra-high sensitivity, flexible IP workflows, and broadcast-grade 4K production in demanding environments.
Broadcast-Grade Precision Imaging
The AW-UE160 is designed for professional broadcast, live events, worship environments, and sports production where reliability and image fidelity are critical.
With a 1-inch MOS sensor and advanced imaging pipeline, it delivers exceptional low-light performance, wide dynamic range, and consistent 4K output across multiple production workflows.
Core Engineering Highlights
A fully integrated PTZ platform built for modern IP-based production environments and high-end video workflows.
System Integration & Build Detail
A complete imaging system designed for flexible deployment across studios, live venues, and IP-based production workflows.
Workflow & Connectivity Architecture
Built for hybrid production environments requiring flexibility, redundancy, and high-bandwidth video transport.
- 12G-SDI, HDMI, Fiber and IP output support
- Simultaneous multi-output operation
- NDI / NDI|HX network streaming
- ST 2110 broadcast integration option
- Professional audio input via dual XLR channels
Technical Specifications
Imaging System
1" 4K MOS Sensor
UHD 4K Output
High Sensitivity Architecture
Connectivity
12G-SDI
HDMI
Fiber Output
IP Streaming (NDI / ST 2110)
Control & AF
PTZ Precision Control
Phase Detection Autofocus
Remote Operation Support
Broadcast Features
HDR / HLG Support
Dual Tally System
Multi-output Simultaneous Operation
Upgrade Your Production Workflow
The AW-UE160 delivers broadcast-grade imaging, IP flexibility, and professional reliability for modern production environments.
Request a Quote| Product Name | Panasonic AW-UE160 Integrated 4K 20x Optical Zoom with 9.6MP MOS Sensor PTZ Camera |
|---|---|
| Weight | 4.600000 |
| Image Sensor | 1"-Type MOS |
| Effective Sensor Resolution | 9.62 Megapixel |
| Shutter Speed | 1/2000 to 1/48 Second |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 10x |
| Max Video Output | via HDMI / RJ45 / SDI/BNC: Up to UHD 4K at 23.98/24.00/25/29.97/50/59.94 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Wireless | IR |
| Mounting | 1x 1/4"-20 Female | 6x M3 Female |
| Focal Length | 8.8 to 176mm |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 3.9' / 1.2 m |
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| Presets | 100 |
| Pan | 350° (-175 to 175°) at 0.08 to 1800°/s |
| Tilt | 240° (-30 to 210°) at 0.08 to 1800°/s |
| Tally Light | Yes |

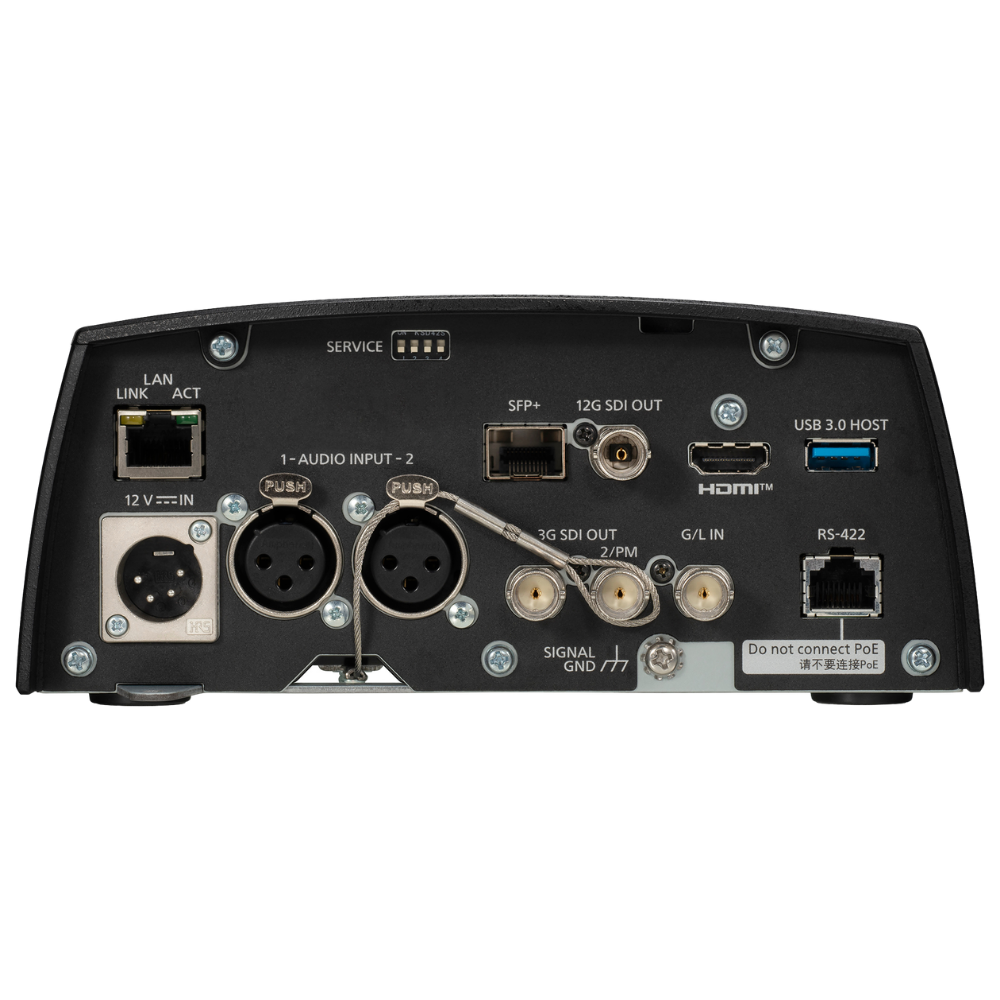

| Video I/O | 1x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output 1x HDMI 2.0 Output |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power) |
| Other I/O | 1x RJ45 (LAN) Control 1x RJ45 (RS-422) Control 1x BNC (Genlock) Input 1x USB-A (USB 3.0) Host (Shared with Video Output) |
| Built-In Microphone | No |
| Power I/O | 1x XLR 4-Pin (12VDC at 1.5 A) Input |
| Built-In Speaker | No |
| Operating Temperature | 32 to 72°F / 0 to 40°C at 20 to 90% Humidity |
| Storage Conditions: | 24 to 122°F / -4 to 50°C |
| Environmental Resistance | No |
| Dimension | 10.9 x 9.4 x 8.4" / 27.7 x 24 x 21.3 cm (Without Bracket, Protrusions) |
| Supported OS | Chrome OS / Windows 10 or Later / macOS 10.13 to 15 |
| Package Weight | 7.31 kg |
| Packaging Dimensions | 51.1 × 40.4 × 37.3 cm |
| Manufacturer | Panasonic |
