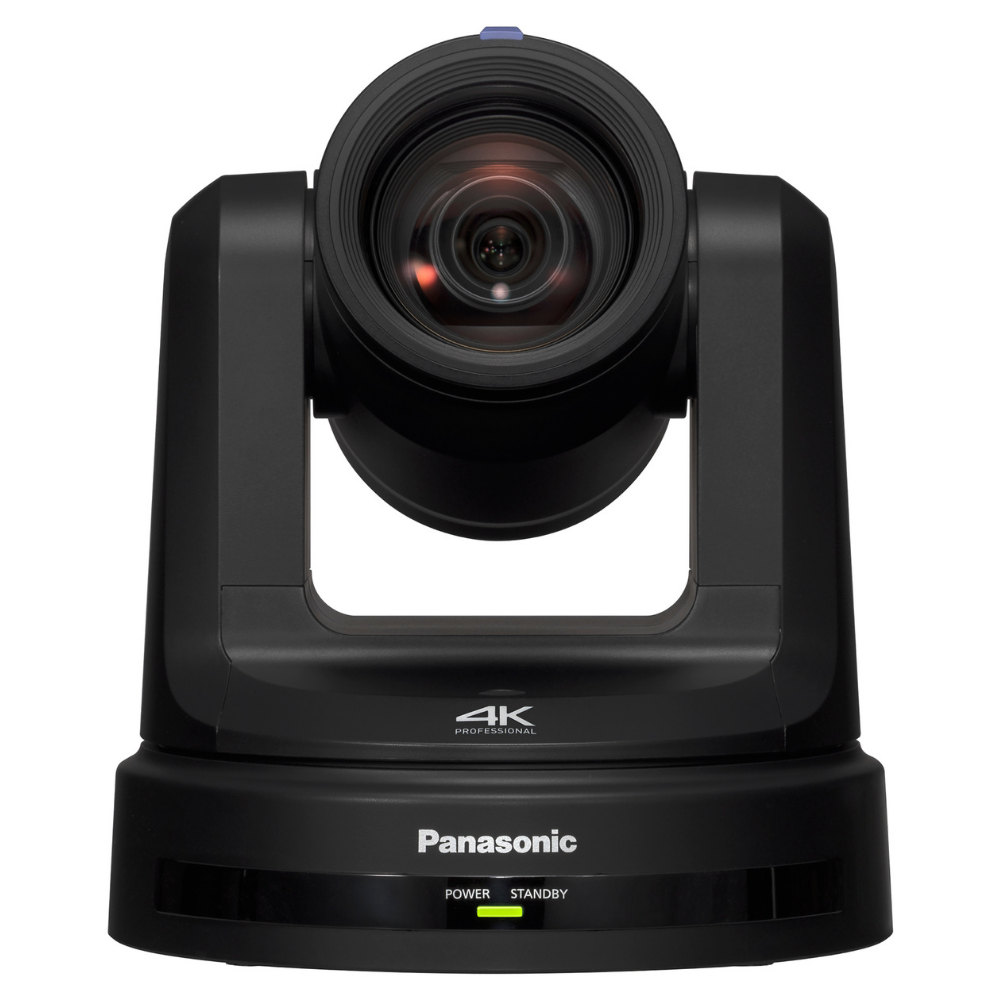

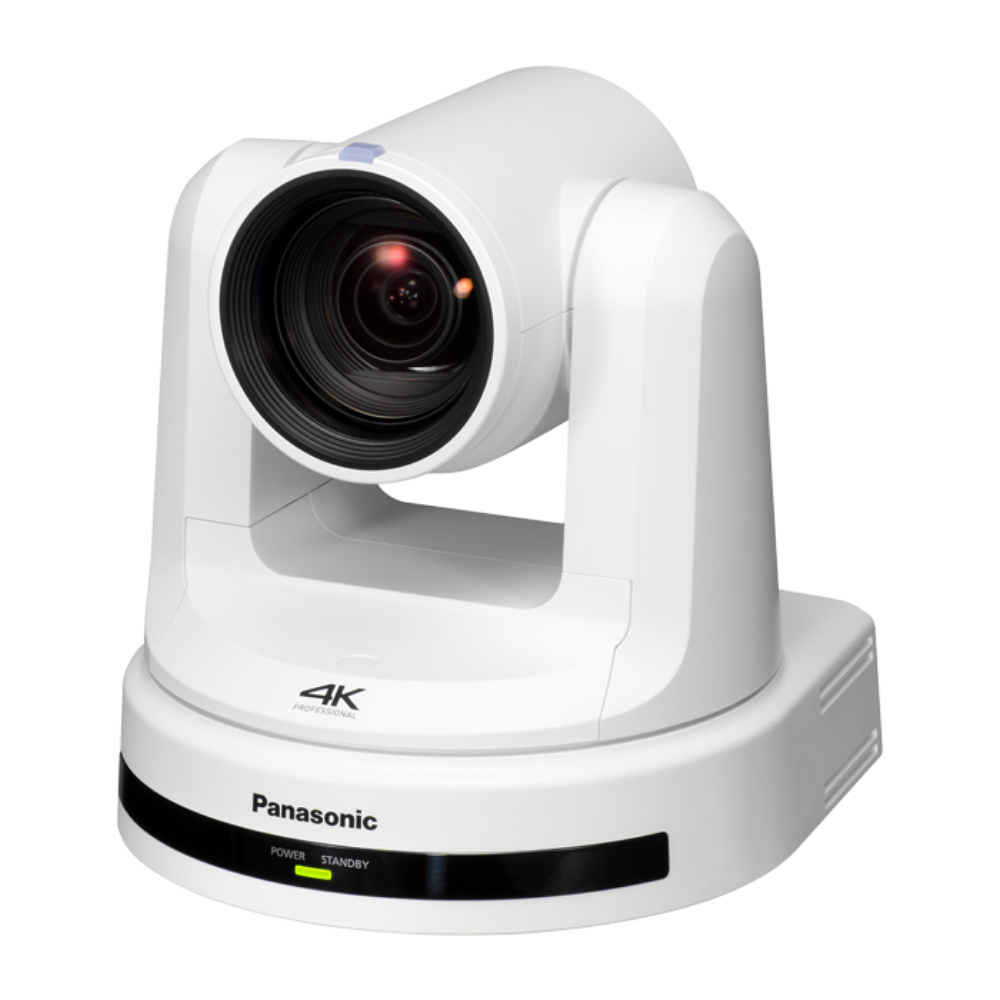

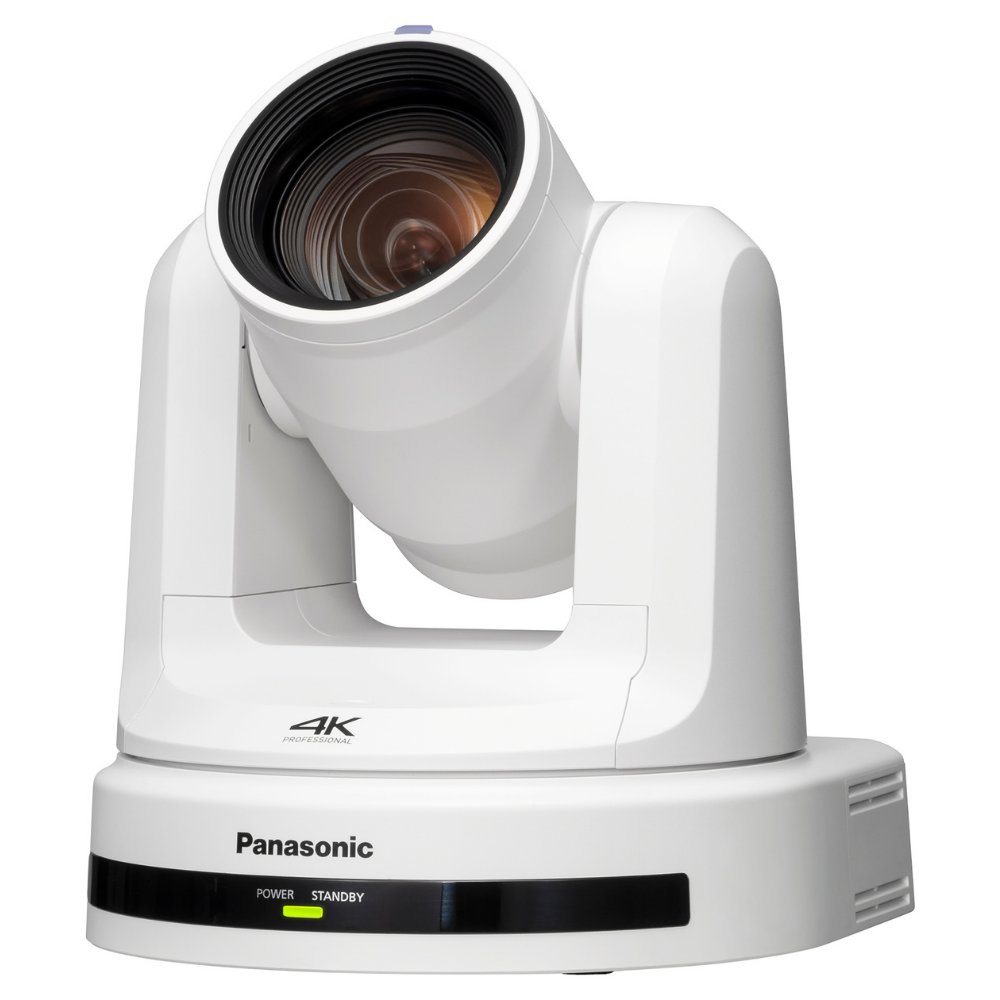

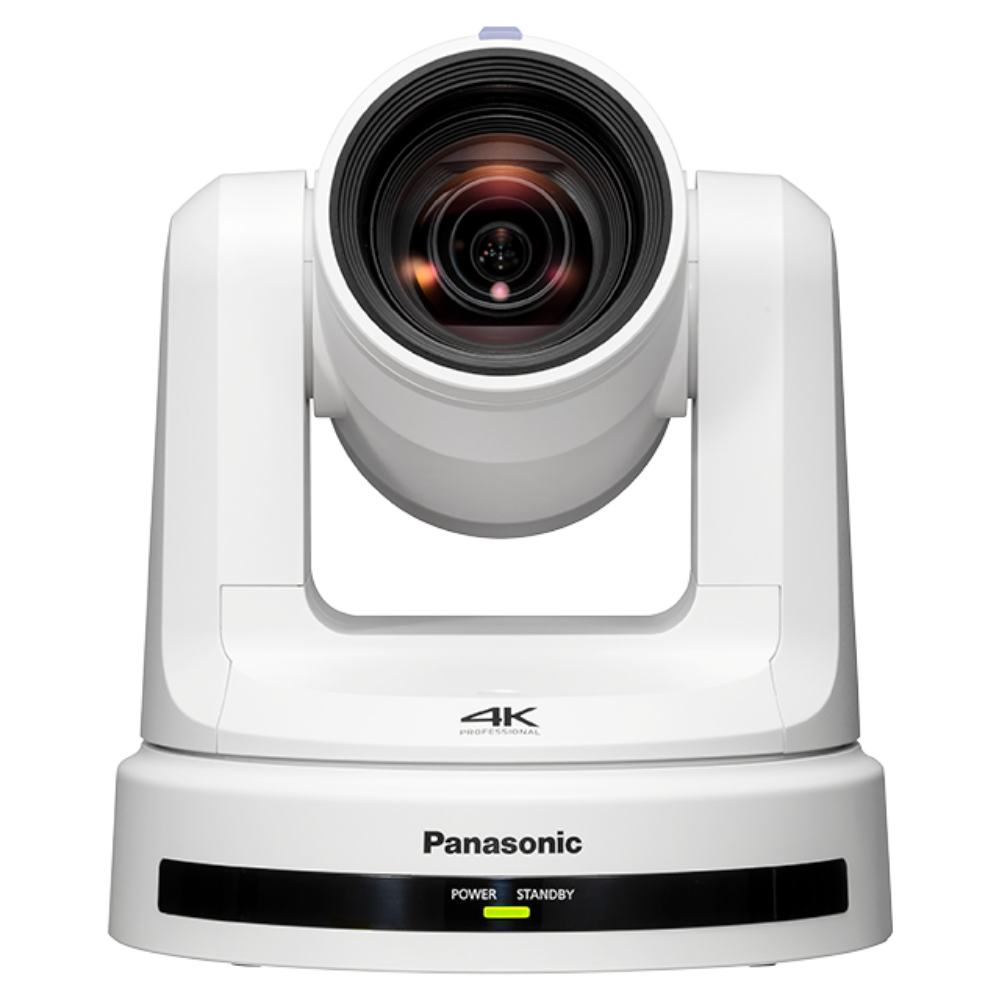

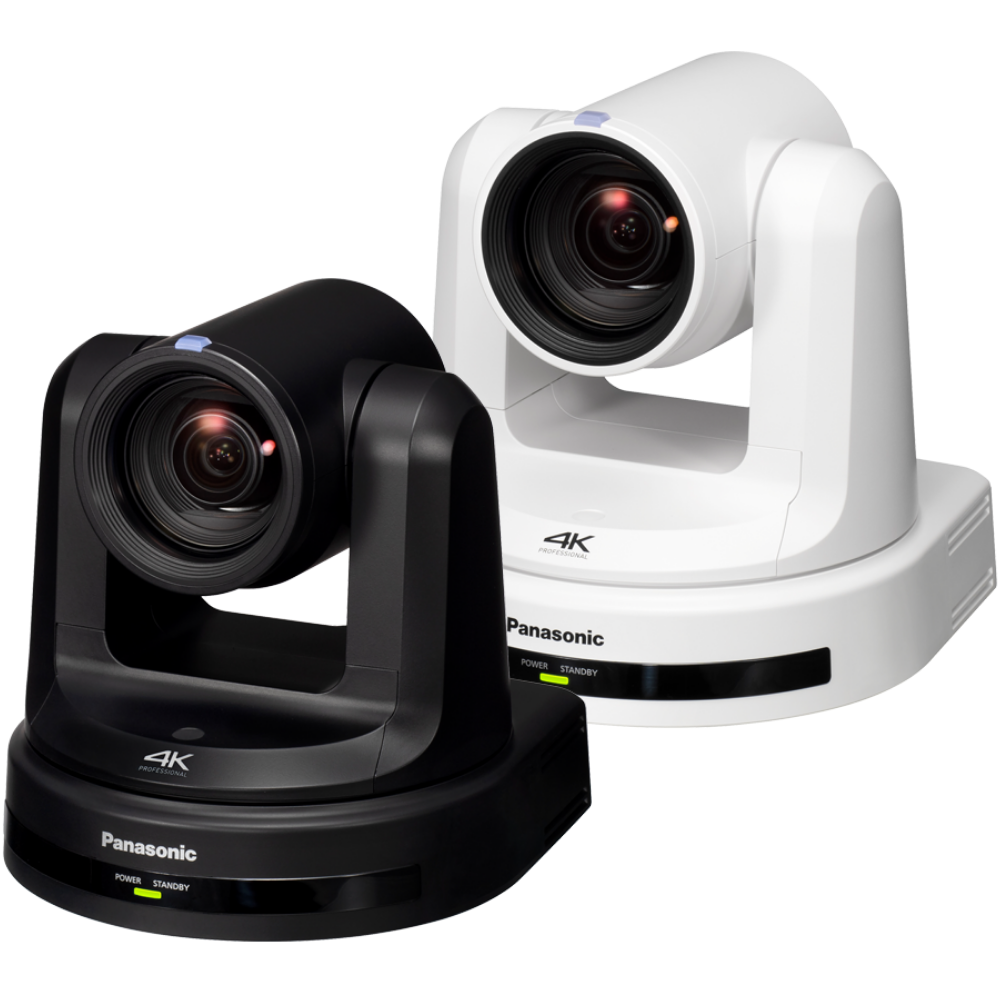

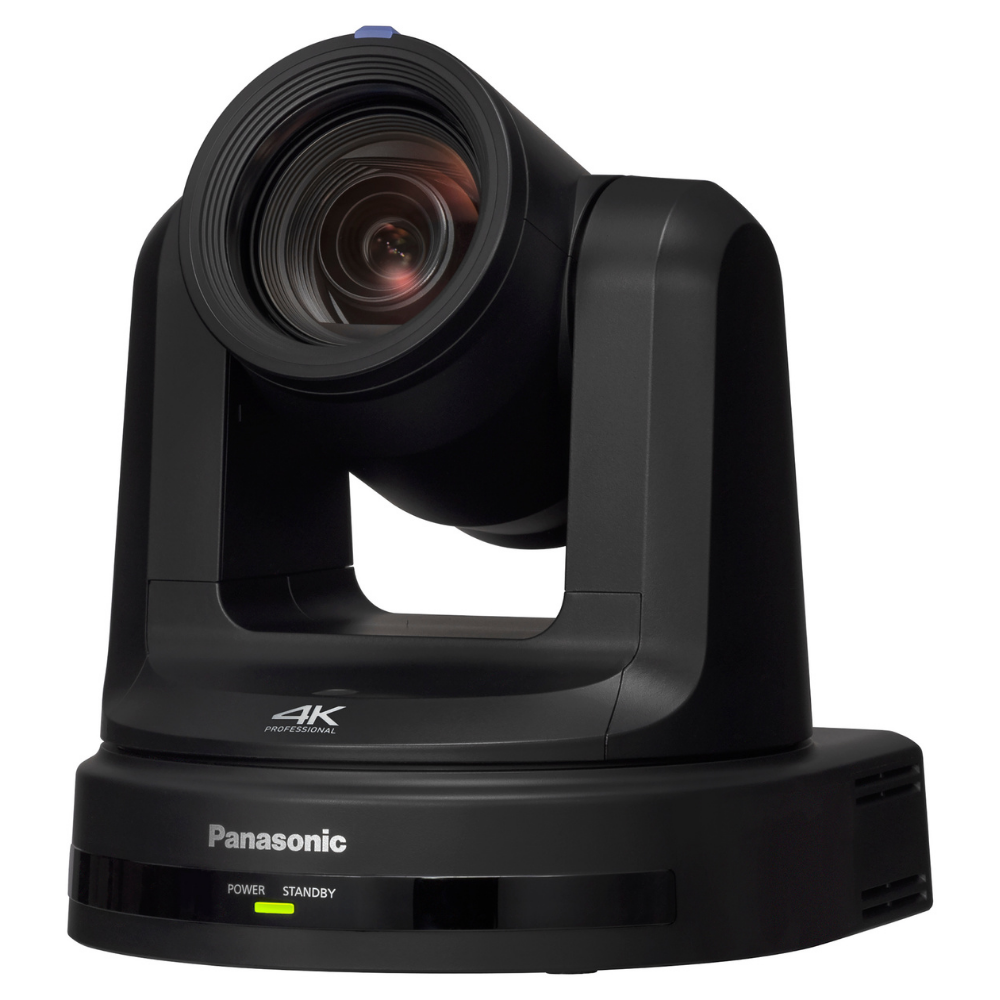

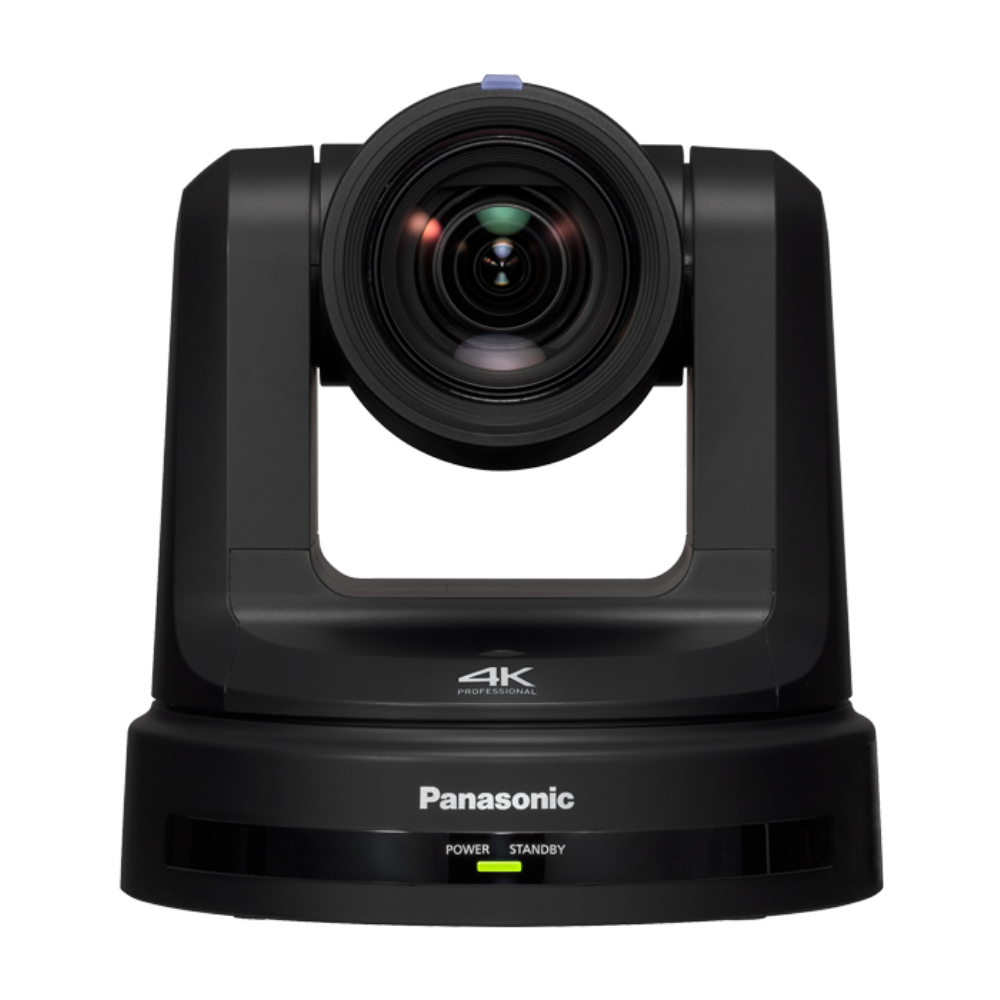

Panasonic AW-UE20 Integrated 4K 12x Optical Zoom with 3G-SDI/HDMI/IP/USB PTZ Camera
Quick Overview
- 1/2.8" HD MOS Sensor, 12x Optical Zoom
- Up to 4K30 HDMI/IP Streaming Output
- Up to 1080p 3G-SDI/USB Output
- ±170° Pan, -30 to 90° Tilt
- LAN, UVC, and Serial Control
PRODUCT OVERVIEW
AW-UE20 PTZ 4K Camera
A compact professional PTZ camera engineered for high-quality 4K video production, live streaming, conferencing, and remote-controlled broadcasting environments.
Professional PTZ Imaging for Modern Workflows
The Panasonic AW-UE20 is a versatile 4K PTZ camera designed for broadcast-quality video capture in corporate environments, education, worship spaces, and live streaming applications.
With simultaneous multi-interface output, intelligent remote control, and compact installation flexibility, it integrates seamlessly into both legacy and modern IP-based production systems.
Key Capabilities
Built to deliver professional-grade imaging performance with flexible connectivity and streamlined operation.
Designed for Professional Environments
- Live streaming events and productions
- Higher education and lecture capture
- Corporate conferencing and communication
- House of worship broadcasting
- Remote controlled production setups
Technical Specifications
Imaging
1/2.8" MOS Sensor
4K 30p UHD Output
High sensitivity processing
Optics
12x Optical Zoom
3.9–46.8mm Lens
71° Wide Angle View
Connectivity
SDI / HDMI / IP / USB
RTSP / RTMP Streaming
LAN Control
Installation
PoE+ Support
Compact Body Design
Ceiling / Wall Mount Ready
Upgrade Your Video Production Workflow
The Panasonic AW-UE20 delivers professional-grade imaging, flexible connectivity, and reliable performance for modern IP-based video environments.
Request a Quote| Product Name | Panasonic AW-UE20 Integrated 4K 12x Optical Zoom with 3G-SDI/HDMI/IP/USB PTZ Camera |
|---|---|
| Weight | 1.900000 |
| Image Sensor | 1/2.8"-Type |
| Effective Sensor Resolution | 8.46 Megapixel |
| Shutter Speed | 1/16000 to 1 Second |
| Max Optical Zoom | 12x |
| Max Digital Zoom | 4x |
| Max Video Output | via SDI/BNC / USB: Up to 1080p at 25/29.97/50/59.94 fps | 4:4:4 8-Bit via HDMI: Up to UHD 4K at 25/29.97 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Wireless | IR |
| Mounting | 4x M4 Female for Bracket/Ceiling |
| Focal Length | 3.9 to 46.8mm |
| Maximum Aperture | f/1.6 to 2.8 |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| Presets | ATW, Auto |
| Pan | 340° (-170 to 170°) at 0.1 to 100°/s |
| Tilt | 120° (-30 to 90°) at 0.1 to 100°/s |
| Tally Light | Yes |

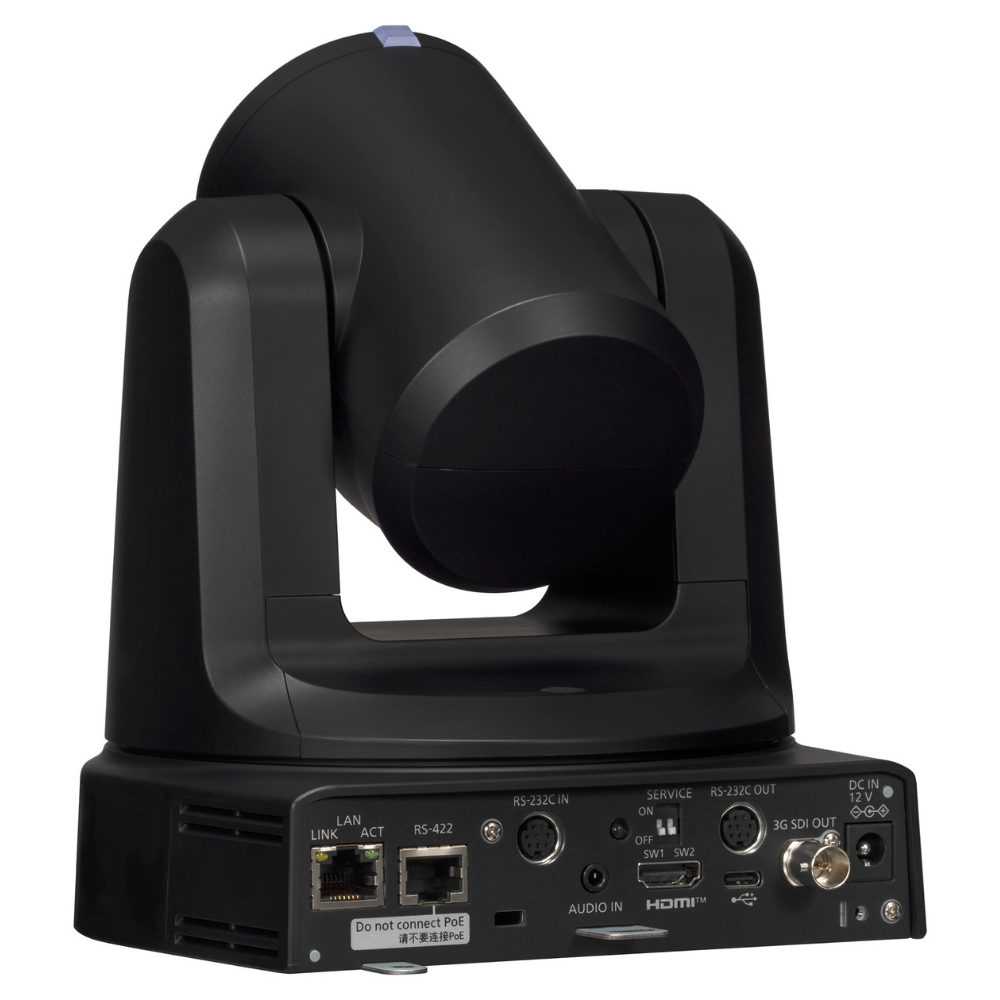

| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1x RJ45 (LAN) Control Input (Shared with Power Input) 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x RJ45 (RS-422) Control Output |
| Built-In Microphone | No |
| Power I/O | 1x XLR 4-Pin (12VDC at 1.5 A) Input |
| Built-In Speaker | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C at 20 to 90% Humidity |
| Storage Conditions: | -4 to 122°F / -20 to 50°C |
| Environmental Resistance | No |
| Dimension | 6.5 x 6.9 x 6.9" / 165.1 x 176.2 x 176.1 mm |
| Supported OS | Chrome OS / Windows 10 or Later / macOS 10.13 to 15 |
| Package Weight | 4.07 kg |
| Packaging Dimensions | 33.27 × 27.43 × 25.15 cm |
| Manufacturer | Panasonic |
