Panasonic AW-UE4 Integrated 4K 4x Digital Zoom with IP Streaming PTZ Camera
Quick Overview
- Single-Cable USB/LAN (PoE) Connectivity
- UHD 4K30 and RTMP/RTMPS Direct Streaming

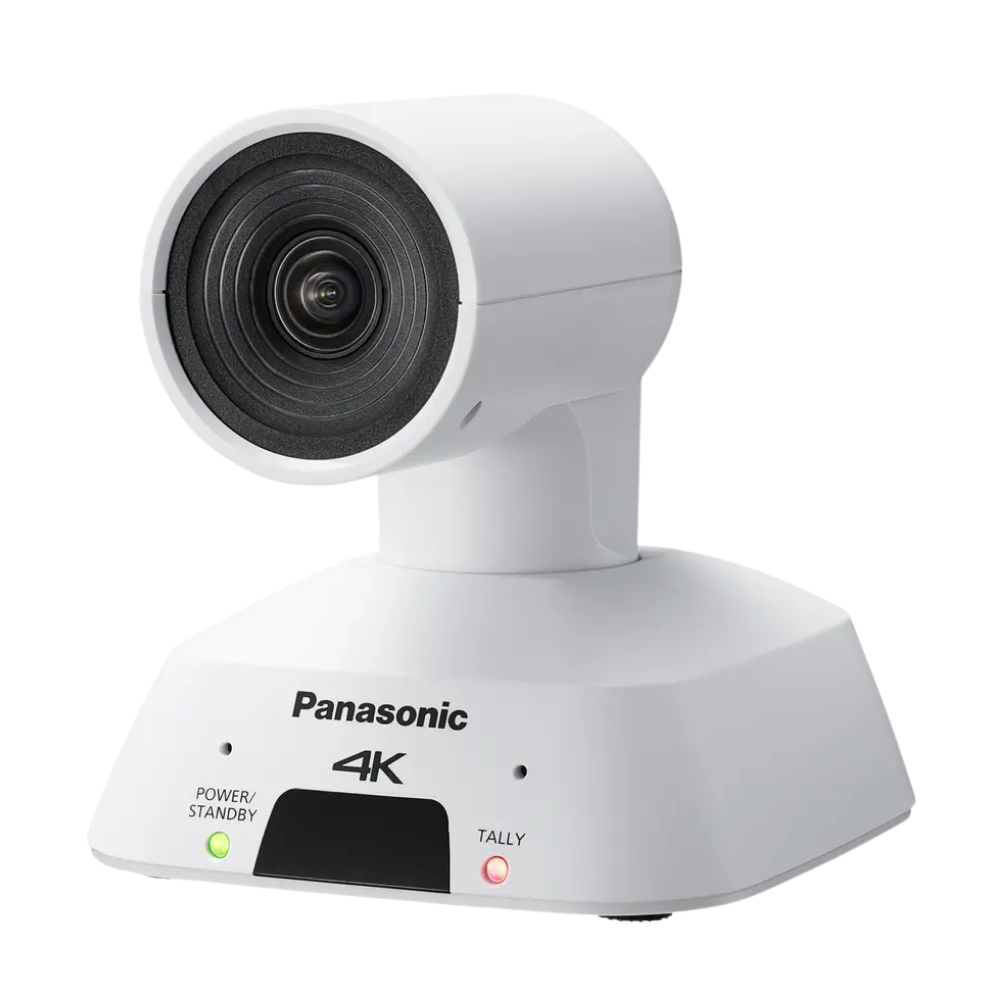

- 111° FOV for Large Spaces, eSports
- Stereo Mic with Mute and ACL Functions
- LPCM/AAC-LC 48 kHz, 16-Bit Audio Capture
- ePTZ (4x Zoom)
PRODUCT OVERVIEW

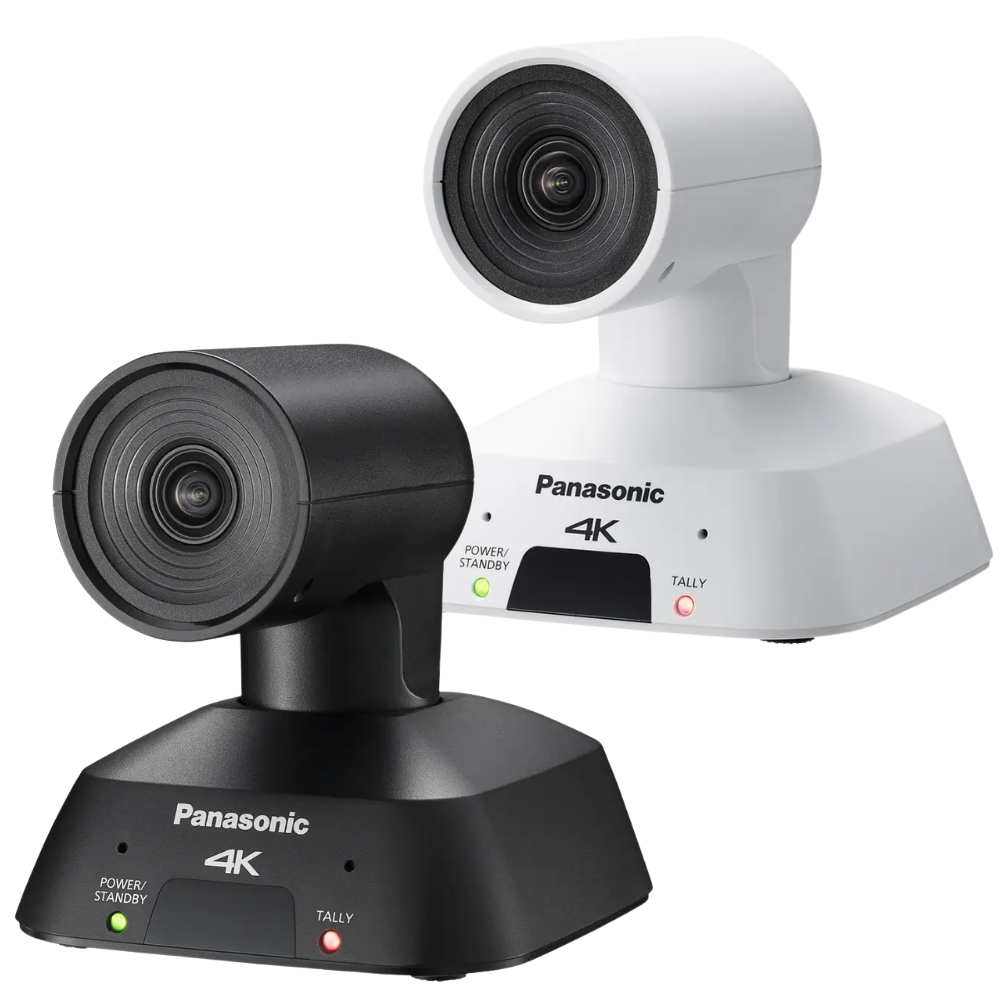

AW-UE4 4K PTZ Camera
A compact, ultra-wide-angle 4K ePTZ camera designed for modern communication, live streaming, and professional video production environments.
Compact 4K ePTZ for Professional Spaces
The AW-UE4 is a compact 4K ePTZ camera engineered for high-quality video capture in conferencing, education, and live production environments. Its ultra-wide 111° field of view ensures complete scene coverage even in tight installation spaces.
With HDMI, LAN, and USB output options, it delivers flexible integration into modern AV workflows, supporting everything from corporate meetings to e-sports and lecture capture.
Why Professionals Choose AW-UE4
Built for reliability, simplicity, and high-performance imaging across diverse professional environments.
Built for Modern Applications
Designed to adapt across professional environments requiring clarity, coverage, and reliability.
Enhance Your Video Production Setup
The AW-UE4 combines ultra-wide imaging, flexible connectivity, and compact design to deliver a powerful solution for modern AV workflows.
Request a Quote| Product Name | Panasonic AW-UE4 Integrated 4K 4x Digital Zoom with IP Streaming PTZ Camera |
|---|---|
| Weight | 0.500000 |
| Image Sensor | 1/2.5"-Type |
| Shutter Speed | 1 to 1/160000 Second |
| Max Digital Zoom | 4x |
| Max Video Output | via HDMI / RJ45 / USB: Up to UHD 4K at 25/29.97 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC |
| Wireless | IR |
| Mounting | 1x 1/4"-20 Female for Bracket/Tripod |
| Focal Length | 2.2mm |
| Maximum Aperture | f/2.4 |
| Minimum Focus Distance | 27.6" / 70 cm |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC LC Audio |
| Broadcast Output | NTSC |
| Presets | 100 |
| Tally Light | Yes |
| Video I/O | 1x HDMI Output |

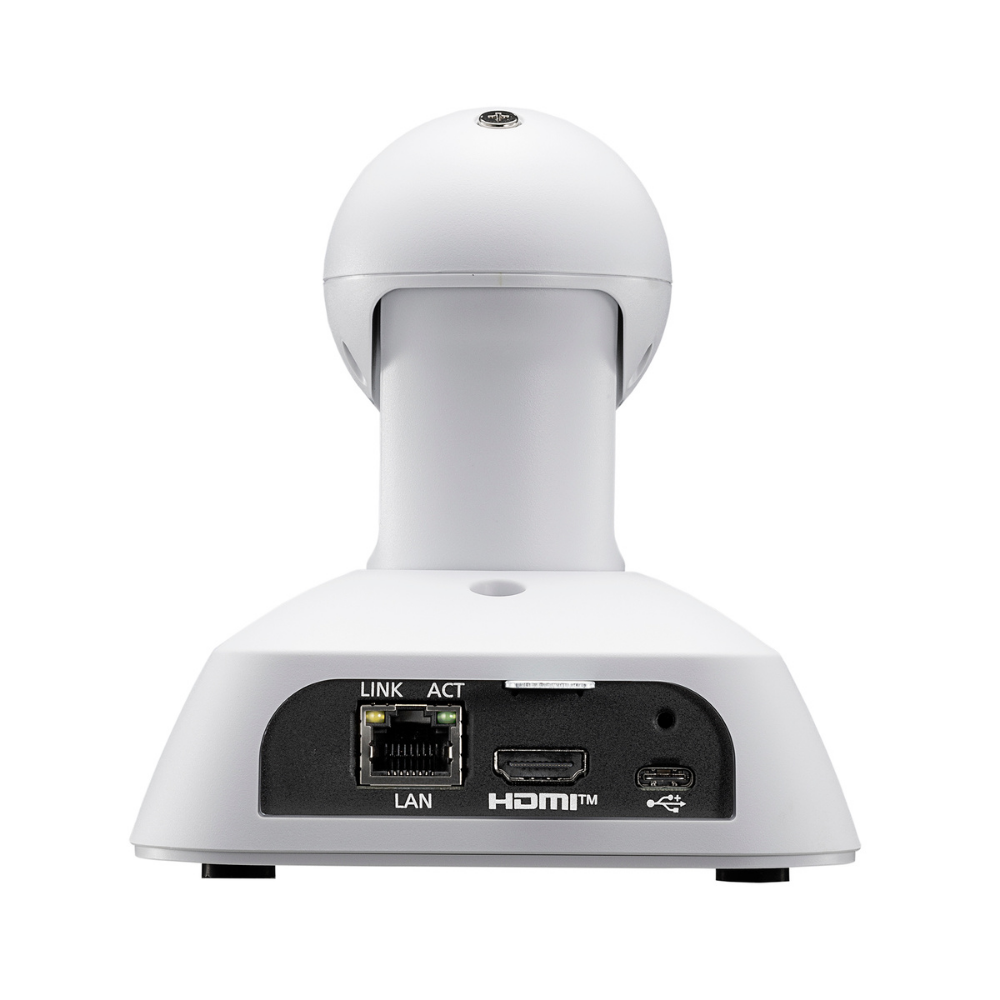

| Other I/O | 1x RJ45 (LAN) Control Input (Shared with Power Input, Video Output) 1x USB-C (USB 3.0) Control Input (Shared with Video Output) |
| Power I/O | 1x Barrel (4.7 to 5.2VDC) Input |
| Built-In Speaker | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C at 20 to 90% Humidity |
| Storage Conditions: | -4 to 122°F / -20 to 50°C |
| Dimension | 4.8 x 5.2 x 5.5" / 123 x 131 x 139 mm (Without Bracket, Protrusions) |
| Package Weight | 2.04 kg |
| Packaging Dimensions | 29.97 × 25.91 × 25.40 cm |
| Certifications | FCC |
| Manufacturer | Panasonic |
Product Datasheet
