Panasonic CX Series AG-CX20 4K Compact 24x Zoom Professional Video Camera Recorder

SKU

AG-CX20

Be the first to review this product

Limited Stock - Running Out Quickly

Notify me when the price drops

Call For The Best Price

Contact our sales team today for exclusive pricing and product availability.

Call Now: +971-4-3360300

Call: +971-4-3360300 | Email: [email protected]

Quick Overview

1" MOS Sensor
20x Optical, 32x Intelligent Zoom
UHD 4K, 1080p, Variable Frame Rate
Supports LANC Control
2 x Media Card Slot, HLG Recording
3.2" LCD Screen, OLED Viewfinder

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

Panasonic CX20

A professional compact 4K camcorder engineered for high-performance production, live streaming, and field recording with advanced connectivity and intelligent tracking capabilities.

4K Professional Recording XLR Audio Inputs IP Streaming Advanced Autofocus

Built for Modern Production Workflows

The CX20 combines professional imaging performance with compact mobility, making it ideal for documentaries, live events, corporate production, and remote streaming setups.

With dual XLR inputs, high-efficiency HEVC recording, and integrated IP control, it delivers broadcast-level capability in a lightweight form factor.

Key Professional Features

Designed to deliver precision, reliability, and flexibility in demanding production environments.

24x Optical Zoom System

Covers a wide focal range from 25mm wide-angle to 600mm telephoto, with extended digital zoom up to 48x for extreme reach.

Face Detection & Tracking AE/AF

Intelligent subject tracking ensures consistent exposure and focus, even in dynamic shooting conditions.

4K High-Precision Autofocus

Fast, stable focusing with micro-drive lens control ensures sharp results even during fast motion transitions.

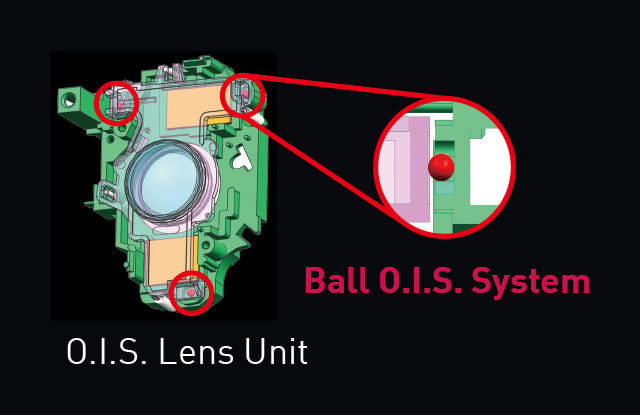

5-Axis Hybrid Stabilization

Combines optical and electronic correction to eliminate shake across vertical, horizontal, and rotational movement.

Built-in ND Filter

Adjustable ND levels (1/4, 1/16, 1/64, Clear) provide precise exposure control in varying lighting conditions.

HEVC 10-bit Recording

High-efficiency codec support enables professional-grade 4K recording with optimized bitrate performance.

Engineered for Production Control

The CX20 integrates advanced operational intelligence to support modern studio and field workflows.

Dual SD card recording for backup reliability
IP-based live streaming and remote control
Professional XLR audio input support
High-efficiency workflow integration
Compact, portable broadcast design

Technical Summary

Video

4K UHD Recording
HEVC 10-bit Support
High Bitrate Modes

Optics

25mm Wide Angle
24x Optical Zoom
Up to 48x Digital Zoom

Audio

Dual XLR Inputs
Professional Audio Capture

Connectivity

IP Streaming
Wi-Fi Control
Dual SD Card Slots

Elevate Your Production Capability

The Panasonic CX20 delivers professional imaging, intelligent tracking, and modern connectivity in a compact broadcast-ready form factor.

Request a Quote

More Information
Product Name	Panasonic CX Series AG-CX20 4K Compact 24x Zoom Professional Video Camera Recorder
Weight	0.850000
Image Sensor	1/2.5"-Type
Effective Sensor Resolution	8.29 Megapixel
Max Recording Modes	H.264 Long GOP/MOV 4:2:0 10-Bit UHD 4K at 23.98/25/29.97/50/59.94 fps H.265 Long GOP/MP4 4:2:0 10-Bit UHD 4K at 23.98/25/29.97/50/59.94 fps H.265 Long GOP/MP4 4:2:0 8-Bit Up to UHD 4K at 23.98/25/29.97/50/59.94 fps
Max Video Output	4:2:2 10-Bit via HDMI Up to UHD 4K at 23.98/25/29.97/50/59.94 fps \| 4:2:2 10-Bit via SDI/BNC Up to 1080p at 12.50/23.98/25/29.97/59.94 fps
Media/Memory Card Slot	Dual Slot
Media/Memory Card Slot	Dual Slot: SD/SDHC/SDXC/microP2 Hybrid
Built-In ND Filter	Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/8000 to 1/24 Second
Focal Length	4.12 to 98.9mm
Optical Zoom	24x Optical
Internal Recording	H.264 Long GOP/MOV 4:2:0 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps (100 to 200 Mb/s) H.265 Long GOP/MP4 4:2:0 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps (72 to 100 Mb/s) H.265 Long GOP/MP4 4:2:0 8-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps (72 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (50 Mb/s) MOV 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps (200 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (50 to 200 Mb/s) MOV 4:2:0 8-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s) AVCHD 4:2:0 8-Bit 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (17 to 25 Mb/s) 1280 x 720 at 50/59.94 fps (8 Mb/s) P2 4:2:2/4:2:0 8/10-Bit 1920 x 1080p at 50/59.94 fps (24 to 50 Mb/s) 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps (12 to 25 Mb/s)
Video Output	4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576p at 50 fps 720 x 480p at 59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 12.50/23.98/25/29.97/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps
Video I/O	1x HDMI 2.0 Output 1x BNC (3G-SDI) Output
Audio I/O	2x XLR 3-Pin Input on Included Handle \| 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body \| 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O	1x USB-C (9VDC at 3 A) Input
Other I/O	1x 2.5 mm Sub-Mini (Remote) 1x USB-C (USB 2.0)
Mobile App Compatible	Yes
Display Type	3.5" Touchscreen
Tripod Mount	1/4"-20 Female
Dimensions	10.5 x 6.3 x 5.1" / 267 x 159 x 129 mm (With Handle, Included Battery, Included Lens Hood)
Manufacturer	Panasonic
Color	Black
