Fluke 125B/INT 120 B Series 40Mhz ScopeMeter Digital Oscilloscope
Quick Overview
- Dual-input digital oscilloscope and multimeter in a ScopeMeter® test tool
- Available with a 40 MHz or 20 MHz oscilloscope bandwidth
- Features Connect-and-View™ trigger simplicity for hands-off operation
- Includes IntellaSet™ technology to automatically and intelligently adjust numerical readout based on measured signal
- Provides a dual-input waveform and meter reading recorder for trending data over extended periods
PRODUCT OVERVIEW

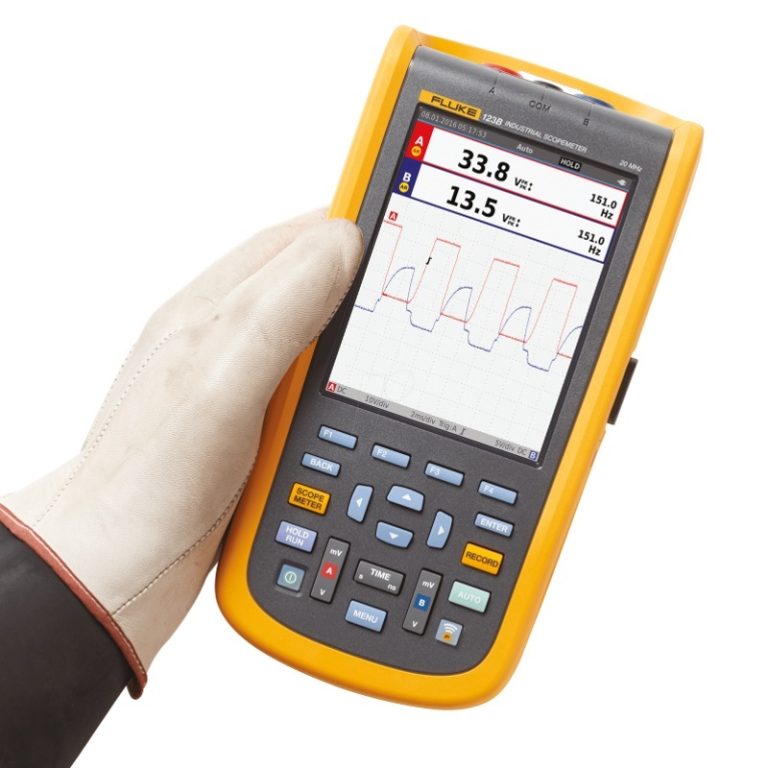

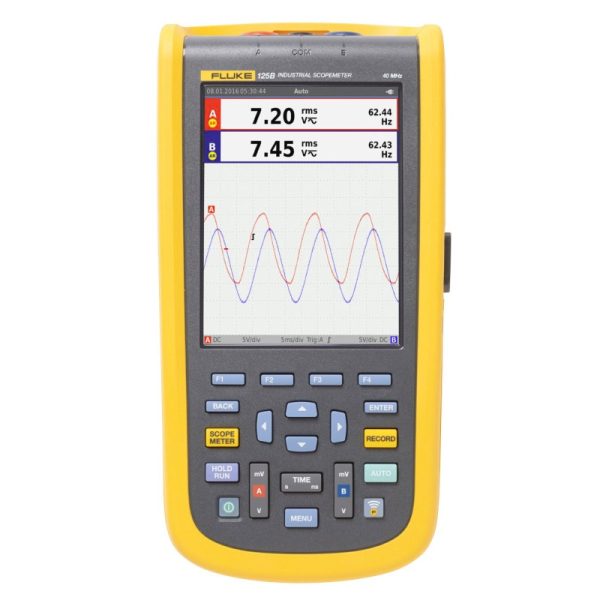

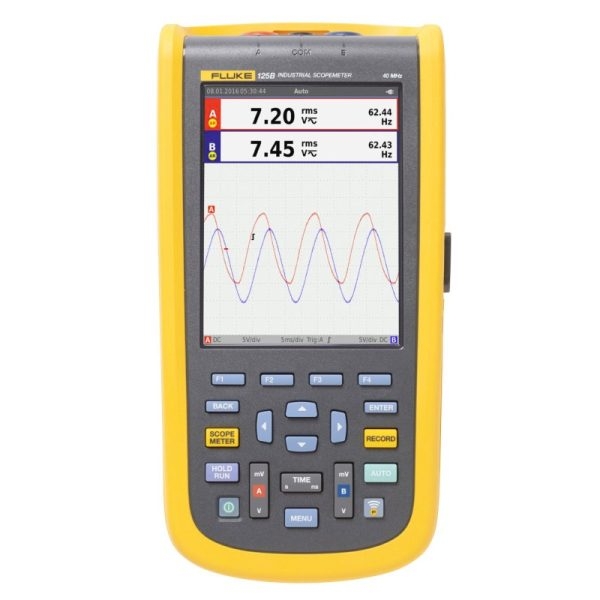

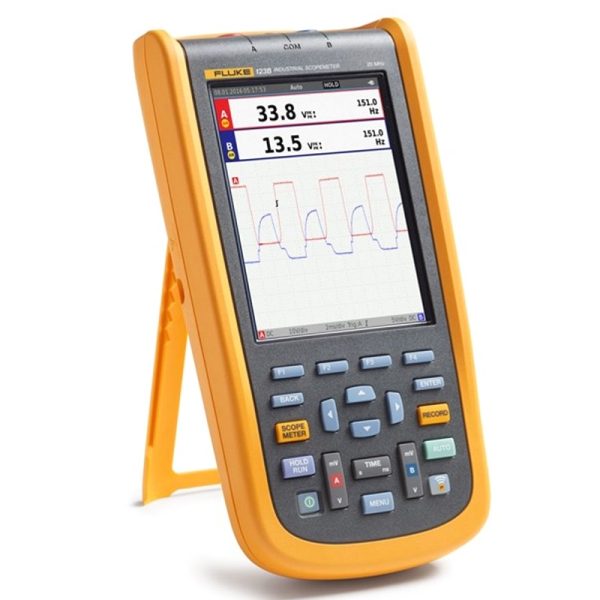

FLUKE 125B/INT
The FLUKE 125B/INT is a 120B series ScopeMeter handheld oscilloscope with 40 MHz bandwidth, 2 analog channels, and a universal plug type. It is a rugged solution for industrial electrical and electromechanical equipment troubleshooting and maintenance applications. This is a truly integrated test tool with an oscilloscope, multimeter, and high-speed recorder in one easy-to-use instrument. It also integrates with the Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis, and archiving of critical test information.
The 125B includes innovative functions designed to help technicians troubleshoot faster, and it has a rugged design to withstand 3 g vibration and 30 g shock. IntellaSet technology automatically and intelligently adjusts numerical readouts based on measured signals. The oscilloscope is IP51 rated according to EN/IEC 60529. It has a 5.7-inch color active matrix TFT display (640 x 480 pixels) and is qualified by 600V CAT IV, CE, and CSA.
|
|
|
| Product Name | Fluke 125B/INT 120 B Series 40Mhz ScopeMeter Digital Oscilloscope |
|---|---|
| Weight | 0.453592 |
| Manufacturer | Fluke |
| Color | Orange |
| Country of Origin | United States |
Product Datasheet
