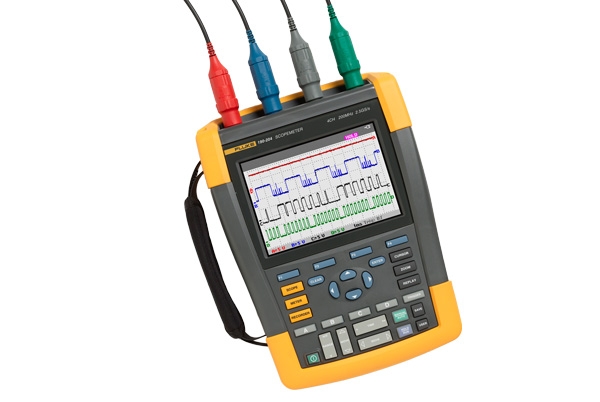

The 190 Series II include these capabilities:

• Up to four independent floating isolated inputs, up to 1000 V

• Up to 5 GS/s real time sampling (depending on model and channels used)

• Deep memory: 10,000 points per trace waveform capture (scope mode)

• CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments

• Up to seven hours of battery operation using BP291

• Isolated USB host port for direct data storage to a USB memory device; USB device port for easy PC communication

• Easy access battery door for quick battery swaps in the field

• Compact and only 2.2 kg (4.8 lb)

• Security slot: lock down oscilloscope with Kensington® lock while unattended

• IP51 rating, dust- and drip-proof

• Connect-and-View™ triggering for intelligent, automatic triggering on fast, slow and even complex signals

• Frequency spectrum using FFT-analysis

• Automatic capture and REPLAY of 100 screens

• ScopeRecord™ Roll mode gives 30,000 points per input channel for low frequency signal analysis

• TrendPlot™ paperless recorder mode with deep memory for long-term automatic measurements

• 5,000 count DMM included in the 2-channel models
