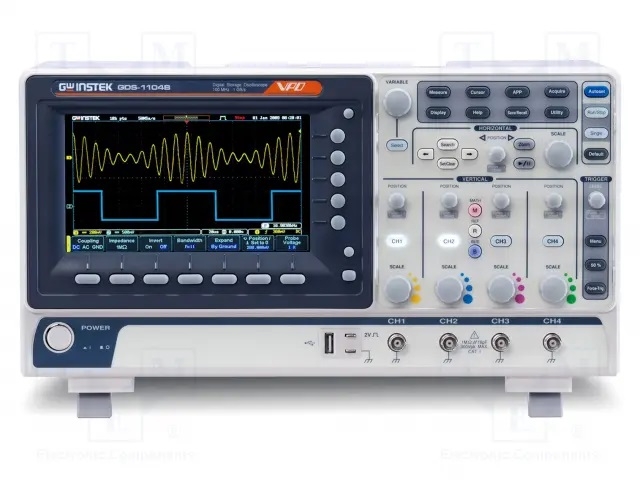

GW Instek GDS-1104B 4 Channel Digital Storage Oscilloscope

Actual Stock Can Be Confirmed After Placing the Order.
SKU
GDS-1104B
AED3,606 AED3,434
Price Match Request
WhatsApp Facebook
The GDS-1000B Series features four bandwidth selections - 200MHz, 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels. The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently.

PRODUCT OVERVIEW

Realizing Professional Functionalities with an Entry-Level Pricing

The GDS-1000B Series features four bandwidth selections - 200MHz, 100 MHz, 70 MHz, 50MHz and equips with analog signal input terminals by four or two channels. The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The GDS-1000B Series has a waveform update rate of 50,000wfms/s, which helps users to precisely observe the detailed waveform variation. Additionally, 7ā€ WVGA color LCD display and the 256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation.

With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very thoughtful design -the zero key function, which allows engineers to work more effectively. For mathematical analysis mode, 1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate.

Moreover, the innovative exterior design and compact design also bring much convenience to users.

Other diversified and charming multi-functional operation demonstrates the concept of complete technology integration.

Features

  • 200/100/70MHz bandwidth selections, 2ch input
  • 100/70/50MHz bandwidth selections, 4ch input
  • 1GSa/s maximum sampling rate
  • 10M maximum memory depth for each channel
  • 7ā€ 800 x 480 WVGA LCD display
  • 256 color gradient display function to strengthen waveform performance
  • 1Mpts FFT frequency domain signal display
  • Zero Key function for horizontal time, vertical voltage and triggering
  • Compact and innovative exterior design
More Information
Product Name GW Instek GDS-1104B 4 Channel Digital Storage Oscilloscope
Weight 2.79 Kg
Max Resolution 8bit
Sensitivity (SPL / 1 W @ 1 m) 1mV/div...10V/div
Power Input voltage 300V
No of Channels 4
Power Supply (PoE) AC 100V ~ 240V , 50Hz ~ 60Hz ,
Impedance 1MĪ©/16pF
Rise time ā‰¤3,5ns
Display LCD 7" (800x480), color
Bandwidth ā‰¤100MHz
Dimensions 384x208x127.3mm
Manufacturer GW INSTEK
Color Black
Country of Origin United States
